Getting Started with Your Unit

FTB-500 39

Configuring Your Unit At First Startup

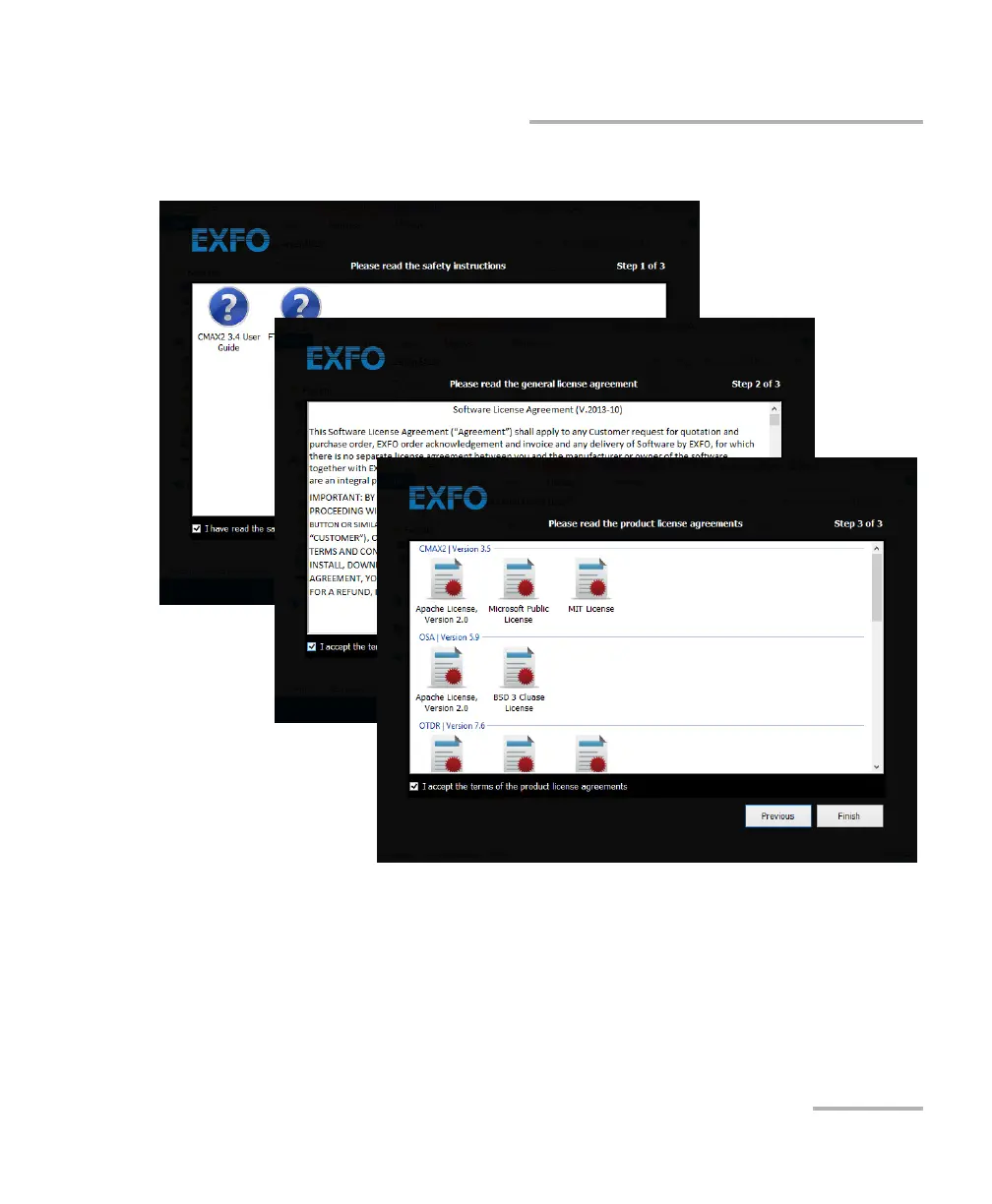

4. When the EXFO wizard is displayed, follow the on-screen instructions.

5. Tap Finish to close the wizard and start working.
