Setting Up Your FTB-500

64 FTB-500

Adjusting Microphone and Speaker Volume

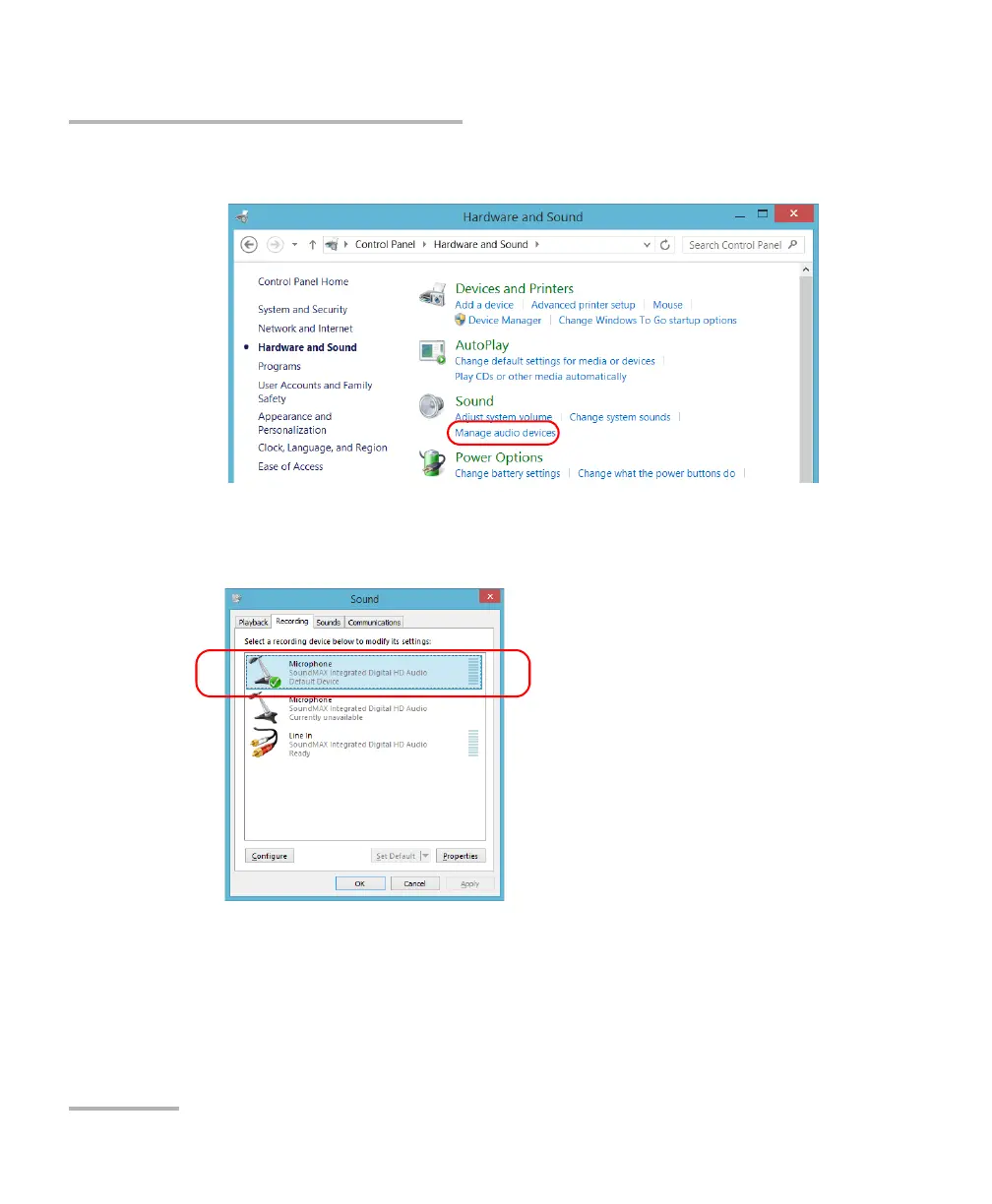

5. Under Sound, tap Manage audio devices.

6. Select the Recording tab.

7. Ensure that your microphone is selected, and then tap Properties.
