3. Repeat step 1 and step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).

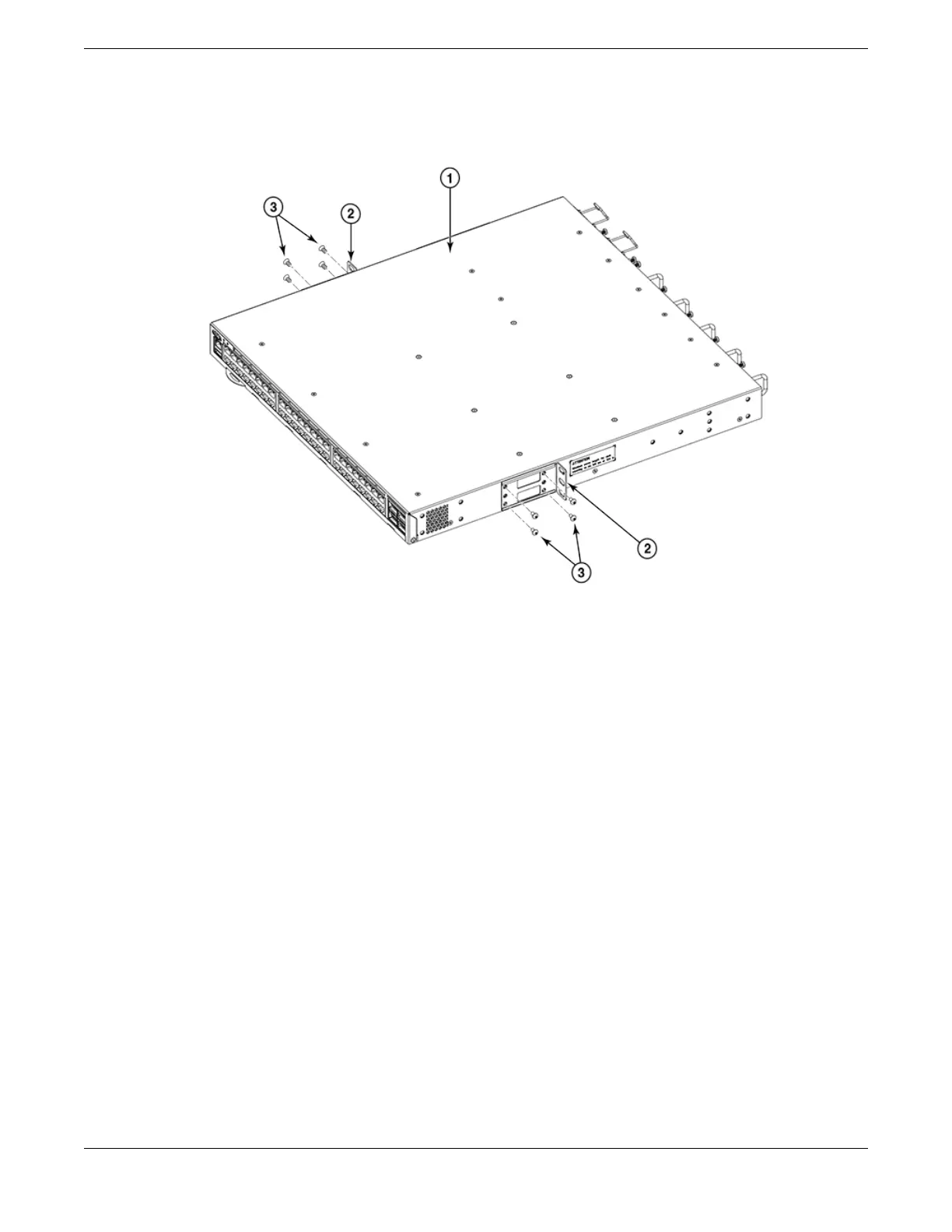

a. The device
b. Front brackets, right and left
c. Screws, 8-32 x 5/16-in., flathead Phillips
Figure 14: Attaching the front brackets
Attaching the front brackets to the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 15, providing temporary support under the device
until the rack kit is fully secured to the rack.
2. Attach the right front bracket to the right rack upright using two 10-32 x 5/8-in. screws and two
retainer nuts. Use the upper and lower holes in the bracket.
3. Attach the left front bracket to the left rack upright using two 10-32 x 5/8-in. screws and two
retainer nuts. Use the upper and lower holes in the bracket.
Mounting the Device
Mid-mounting
ExtremeRouting SLX 9640 Hardware Installation Guide 35
