3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
a. Screws, 10-32 x 5/8-in., panhead Phillips
b. Retainer nuts, 10-32

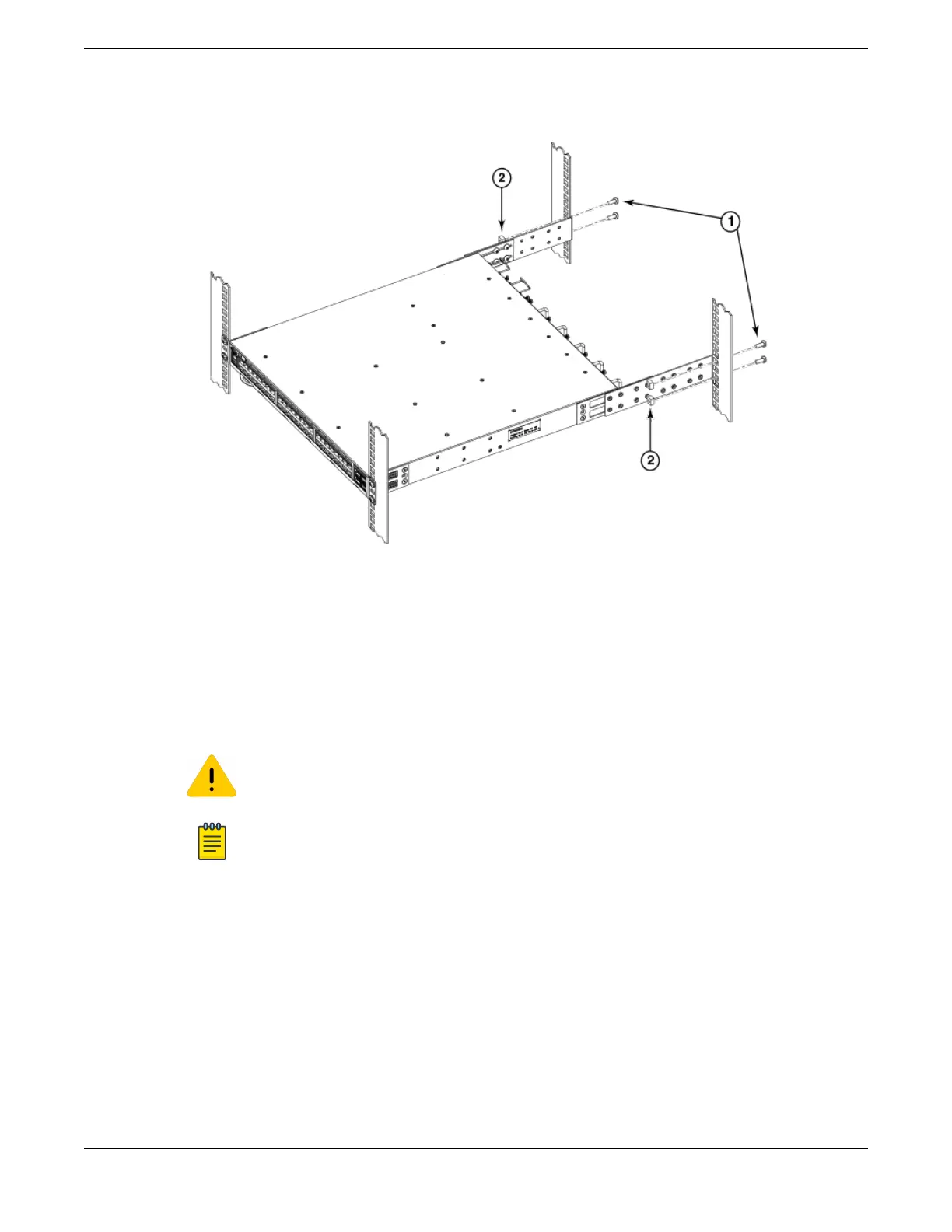

Figure 23: Attaching the rear brackets to the rack posts
Flush-rear (recessed) mounting
The flush-rear (recessed) mounting is similar to the flush-front mounting except that the brackets are
reversed on the device.
Caution
The device must be turned o and disconnected from the fabric during this procedure.
Note
The illustrations in the rack installation procedures show a 1U device, but the instructions are
the same for a 2U device. The illustrations in the rack installation procedures are for reference
only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. Attaching the front brackets to the rear of the device
2. Attaching the extensions to the front of the device
3. Installing the device in the rack
4. Attaching the rear brackets to the extensions at the front of the device
5. Attaching the rear brackets to the front rack posts
Mounting the Device
Flush-rear (recessed) mounting
ExtremeRouting SLX 9640 Hardware Installation Guide 47
