5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb
(10 cm-kg).
a. Rear brackets
b. Screws, 6-32 x 1/4-in., panhead Phillips

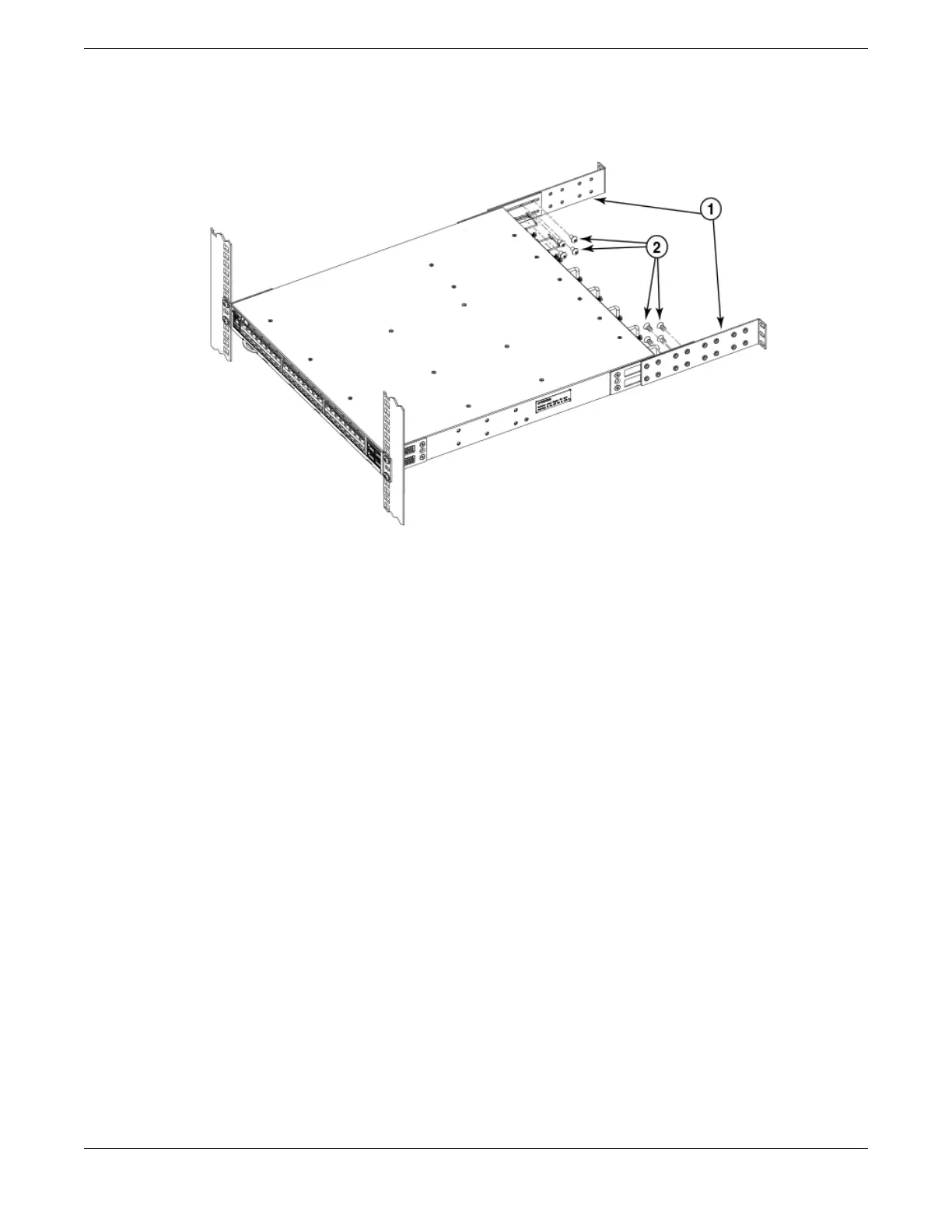

Figure 22: Attaching the rear brackets to the extensions
Attaching the rear brackets to the rack posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws
and two retainer nuts, as shown in Figure 23. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
Flush-front mounting
Mounting the Device
46 ExtremeRouting SLX 9640 Hardware Installation Guide
