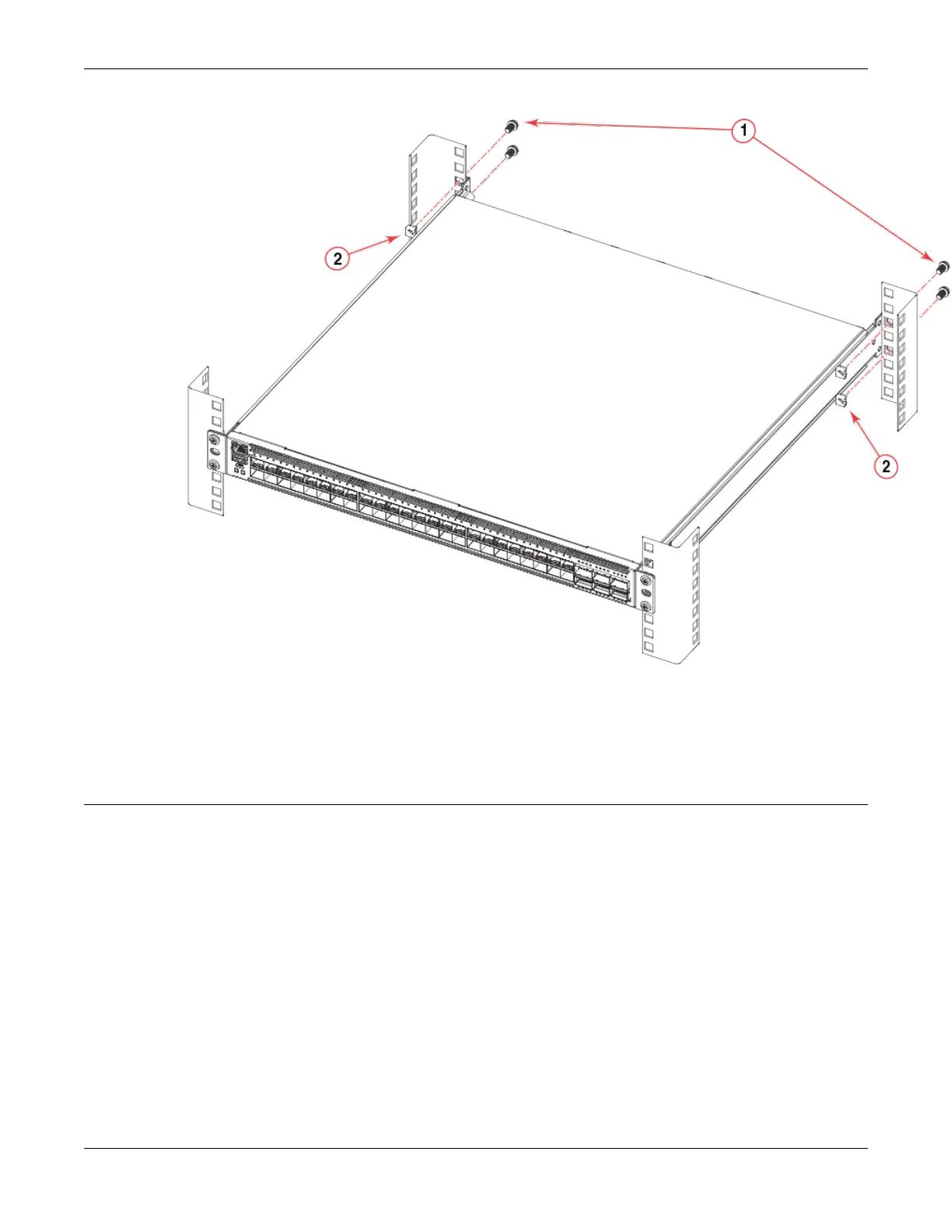

1. Screws, 10-32 x 5/8-in., panhead Phillips
2. Retainer nuts, 10-32
Figure 8: Attaching the rear brackets to the rack posts
Installing the Universal Two-Post Rack Kit (XEN-R000294)
Use the following instructions to install an Extreme Networks 1U or 2U device in a two-post
telecommunications (Telco) rack using the Universal Two-Post Rack Kit (XEN-R000294).
There are two ways you can mount the device in a two-post rack:
•
With the port side flush with the front posts
• With the posts mounted to the mid-section of the device
Observe the following when mounting this device:
• Two people are required to install the device in a rack. One person should hold the device, while the
other screws in the front and rear brackets
• Before mounting your device, review any specific installation and facility requirements in the
Hardware Installation Guide for the device.
• Hardware devices illustrated in these procedures are only for reference and may not depict the
device you are installing in the rack.
Installing the Universal Two-Post Rack Kit (XEN-
R000294) Mounting the Device
