Caution
If you do not install a module or a power supply in a slot, you must keep the slot filler panel in
place. If you run the chassis with an uncovered slot, the system will overheat.

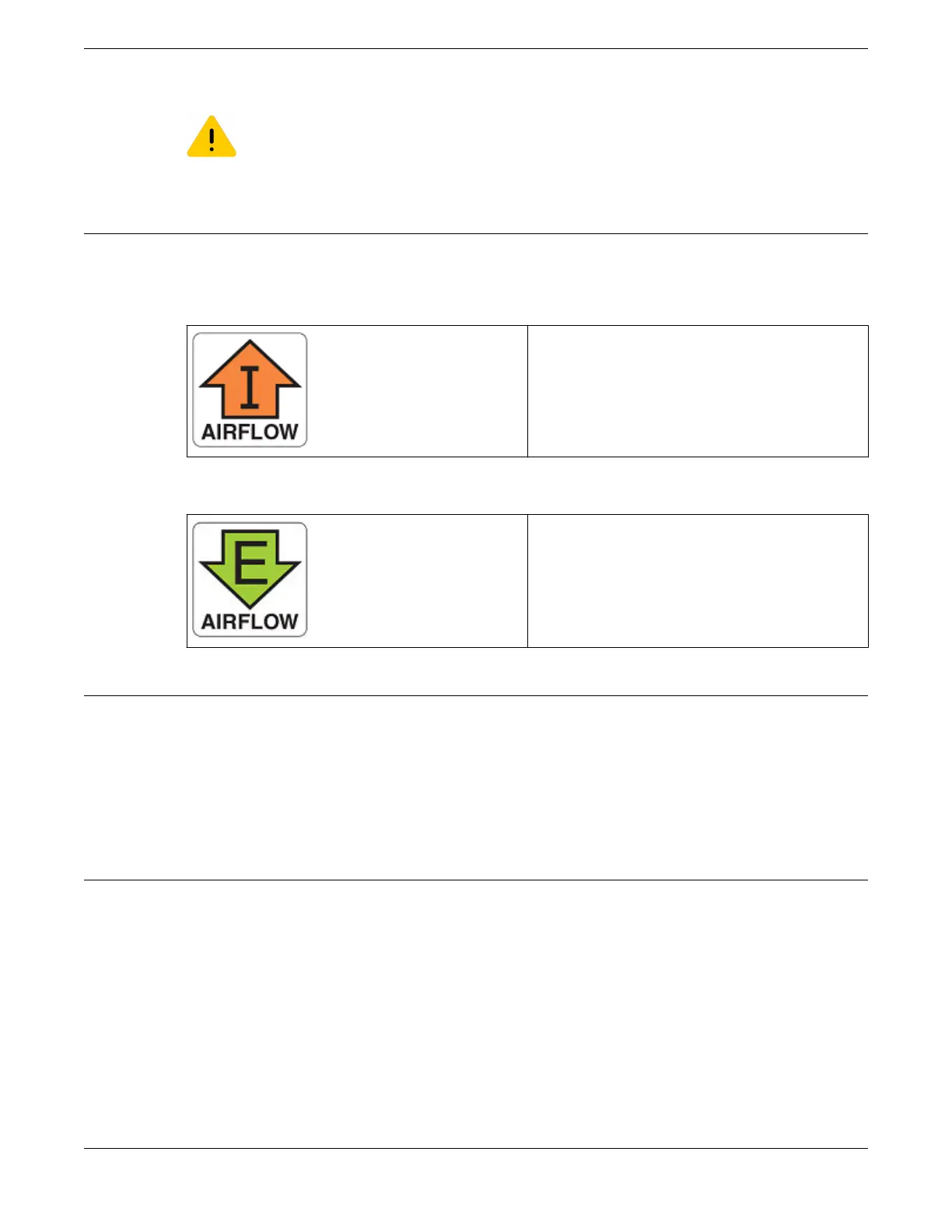

Identifying the airflow direction
The power supply and fan assemblies are identified by the following airflow directions:
• Intake power supply and fan assembly with an orange "I" label or without any label: Pulls air from the
nonport-side of the switch and exhausts it out the port side.
◦ Nonport-side air intake
◦ Port-side air exhaust
◦ Back-to-front (nonport-side to port-side)
airflow
◦ Part numbers ending with -R
• Exhaust power supply and fan assembly with a green "E" label: Pulls air from the port side of the
switch and exhausts it out the nonport-side.
◦ Nonport-side air exhaust
◦ Port-side air intake
◦ Front-to-back (port-side to nonport-side)
airflow
◦ Part numbers ending with -F
Times and items required
Installing or removing and replacing a fan assembly should require less than five minutes to complete.
The following items are required to replace a fan assembly:
• New fan assembly (must have the same airflow direction as the fan assembly being replaced)
• #1 Phillips screwdriver
Replacing a fan assembly
When installing or replacing a fan assembly unit, keep in mind the following:
• Fan assemblies can be swapped in or out while the device is running. The remaining fan assemblies
provide enough airflow for the device.
Identifying the
airflow direction Fan Assemblies
90 ExtremeRouting SLX 9640 Hardware Installation Guide
