3. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
a. Screws, 8-32 x 5/16-in., panhead Phillips

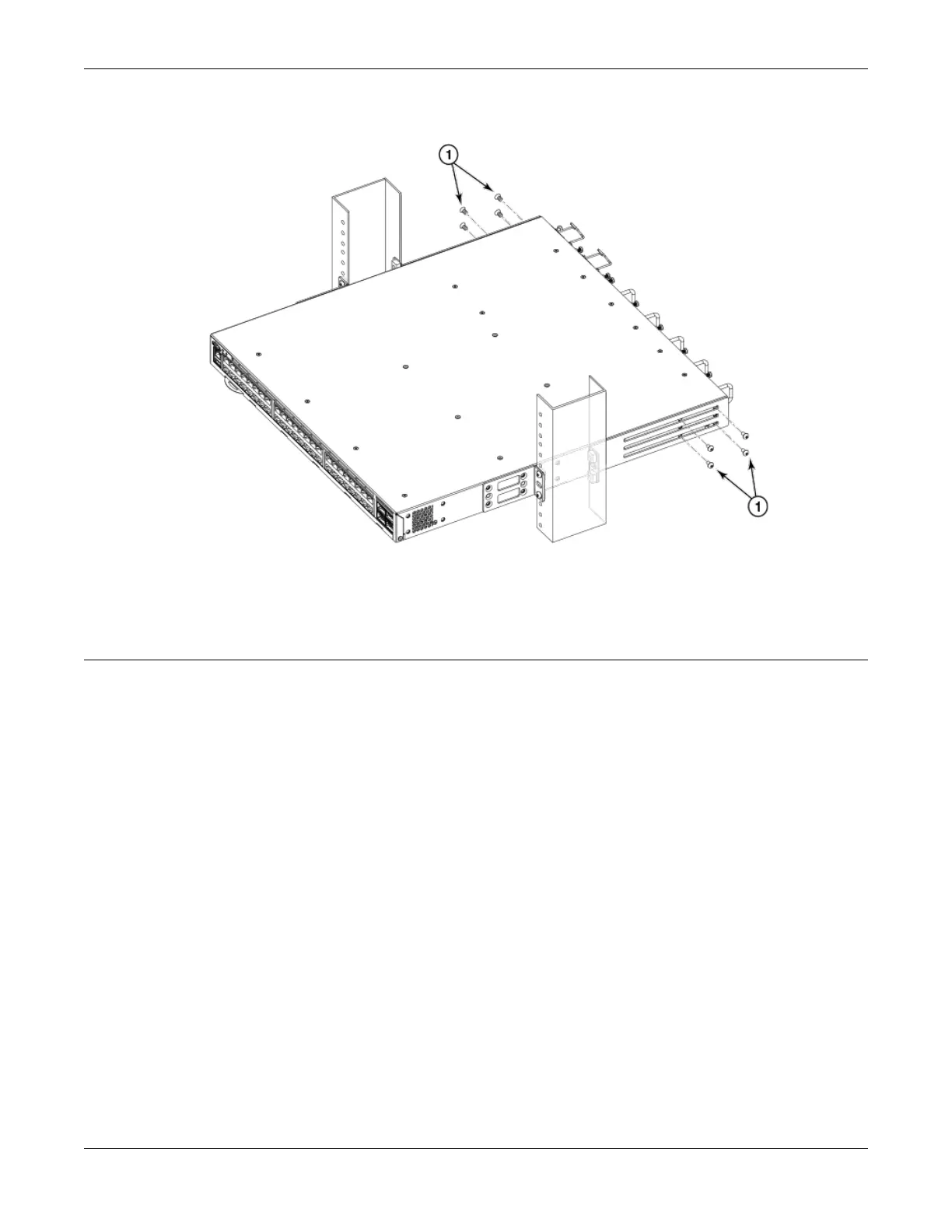

Figure 17: Attaching the rear brackets to the device
Installing the Universal Four-Post Rack Kit (XEN-R000296)
Use the following instructions to install 1U and 2U devices in EIA racks that are between L-12.7 to 81.28
cm deep (L-5.0 to 32.0 in.), where L is the chassis depth, using the Universal Four-Post Rack Kit (XBR-
R000296).
There are two ways you can mount the device in a four-post rack:
• With the port side flush with the front posts.
Installing the Universal Four-Post Rack Kit (XEN-
R000296) Mounting the Device
