3. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
a. Screws, 8-32 x 5/16-in., panhead Phillips

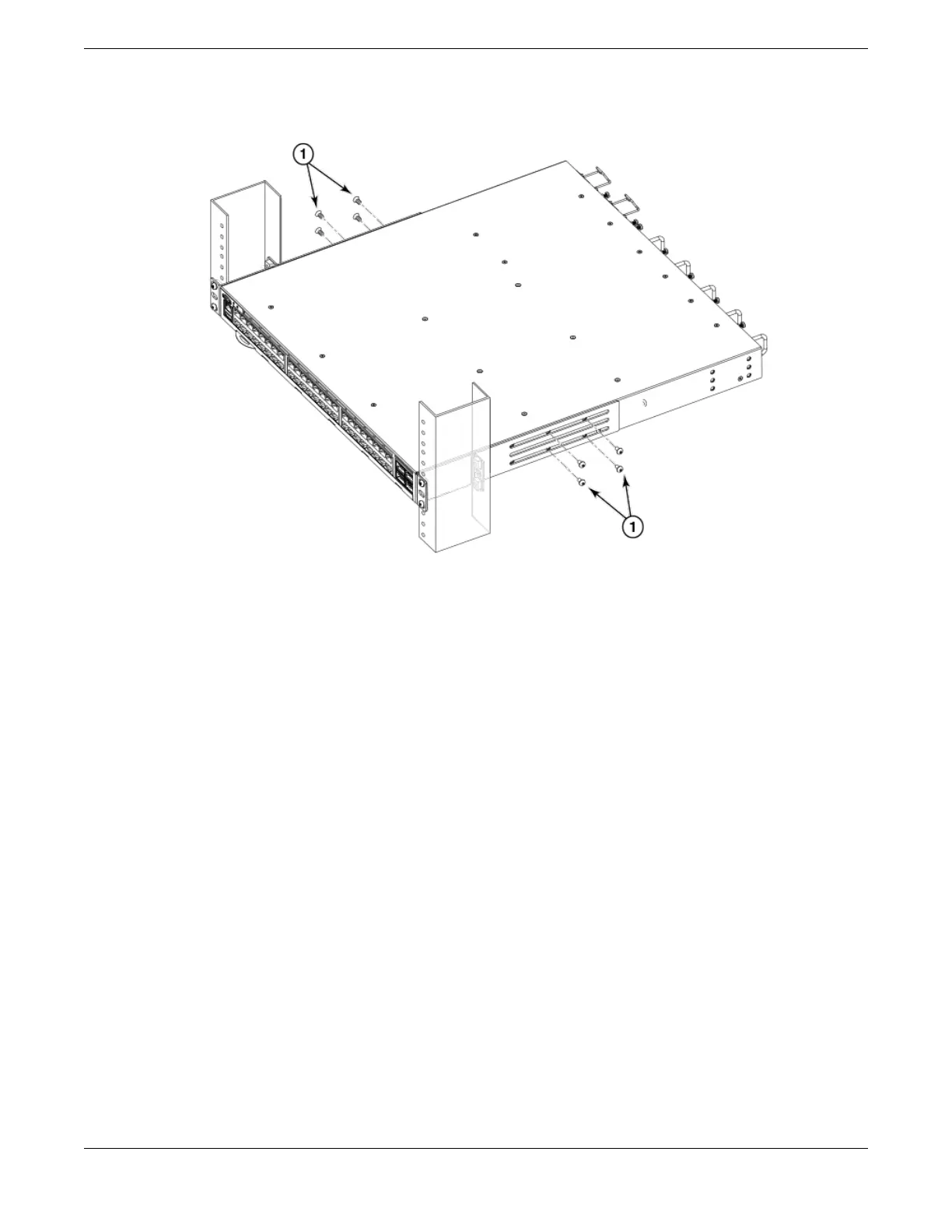

Figure 13: Attaching the rear brackets to the device
Mid-mounting
Observe the following notes when using this procedure:
• The device must be turned o and disconnected from the fabric during this procedure.
• The illustrations in this document show a 1U device, but the instructions are the same for a 2U device.
• The illustrations in the rack installation procedures are for reference only and may not show the
actual device.
Complete the following tasks to install the device in a rack:
1. Attaching the front brackets to the device on page 34
2. Attaching the front brackets to the rack on page 35
3. Attaching the rear brackets to the rack on page 36
4. Attaching the rear brackets to the device on page 37
Attaching the front brackets to the device
Complete the following steps to attach the front brackets to the device.
1. Position the right front bracket with the flat side against the right side of the device, as shown in
Figure 14.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and
then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center
holes empty.
Mid-mounting
Mounting the Device
34 ExtremeRouting SLX 9640 Hardware Installation Guide
