4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
a. Screws, 10-32 x 5/8-in., panhead Phillips
b. Retainer nuts, 10-32

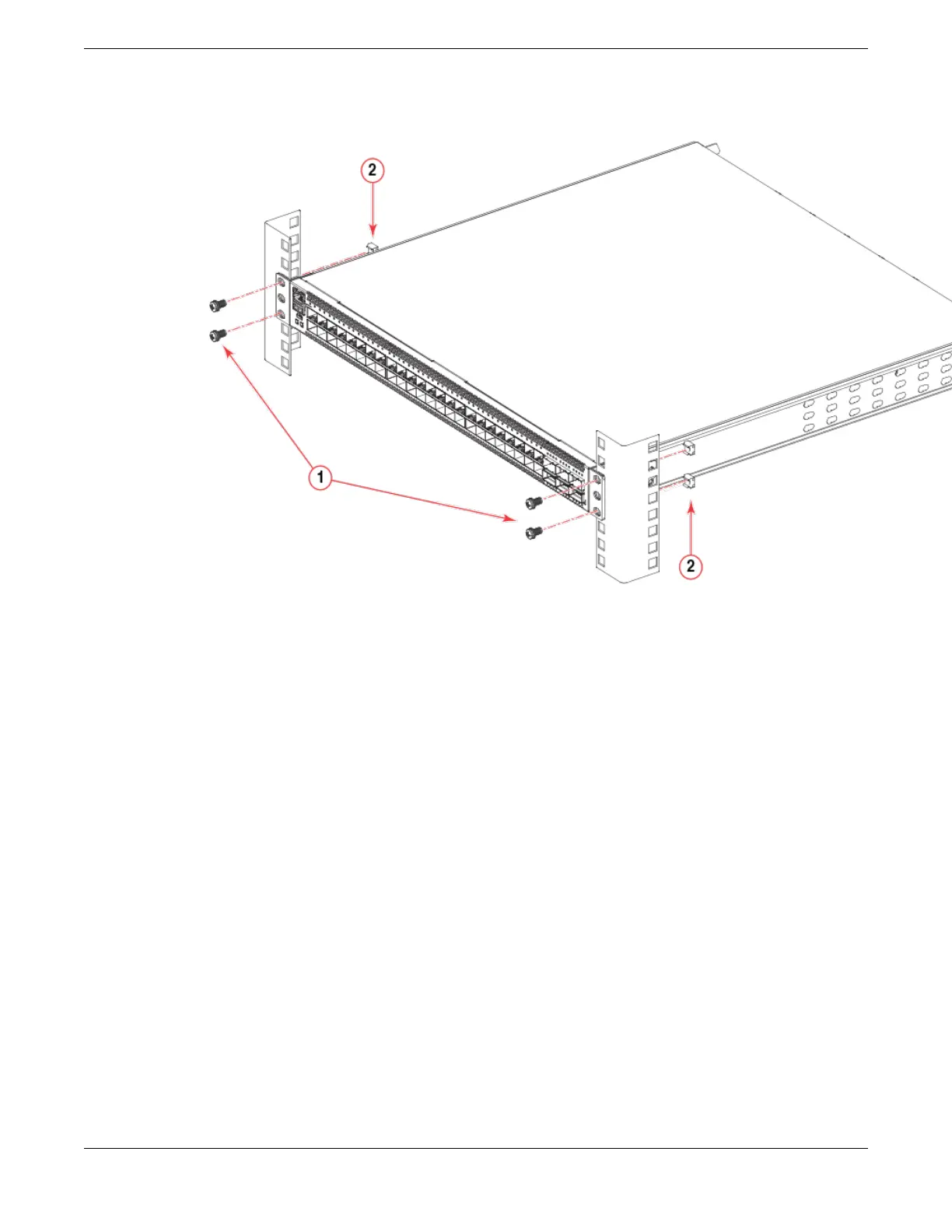

Figure 7: Installing the device in the rack
Attaching the rear brackets to the rack posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Slide the right rear bracket into the right front bracket and the left rear bracket into the left front
bracket.
2. Adjust the rear brackets to the rack depth.
3. Attach the right rear bracket to the right rear rack post using three 10-32 x 5/8-in. panhead screws
and three retainer nuts, as shown in the figure below. Use the three holes in the bracket.
4. Attach the left rear bracket to the left rear rack post using three 10-32 x 5/8-in. panhead screws and
three retainer nuts. Use the three holes in the bracket.
5. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
Mounting the Device
Flush-front mounting
ExtremeRouting SLX 9640 Hardware Installation Guide 27
