Attaching the front brackets to the rear of the device
Note
In this installation, the brackets are named as listed in the parts list even though the
installation of the brackets is reversed from the flush-front installation.
Complete the following steps to attach the front brackets to the rear of the device.
1. Position the right front bracket with the flat side against the right rear side of the device, as shown in
Figure 24.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and
then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center
holes empty.
3. Repeat step 1 and step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
a. The device
b. Front brackets
c. Screws, 8-32 x 5/16-in., flathead Phillips

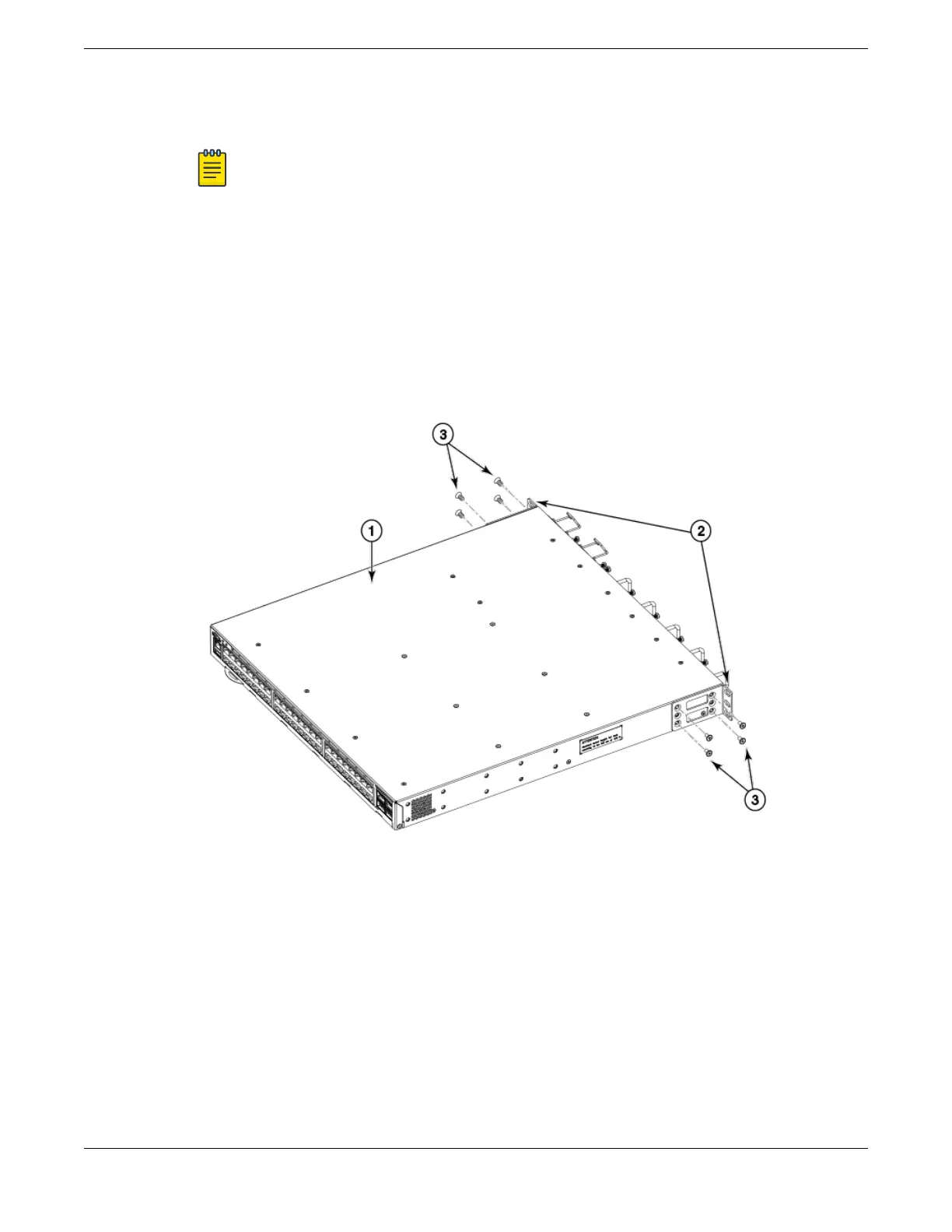

Figure 24: Attaching the front brackets to the rear of the device
Attaching the bracket extensions to the front of the device
Complete the following steps to attach the bracket extensions to the front of the device. There are
medium and long extension brackets that you can use for this step.
1. Select the proper length extension bracket for your rack depth.
2. Position the right bracket extension along the side of the device as shown in Figure 25 on page 49.
Flush-rear (recessed) mounting
Mounting the Device
48 ExtremeRouting SLX 9640 Hardware Installation Guide
