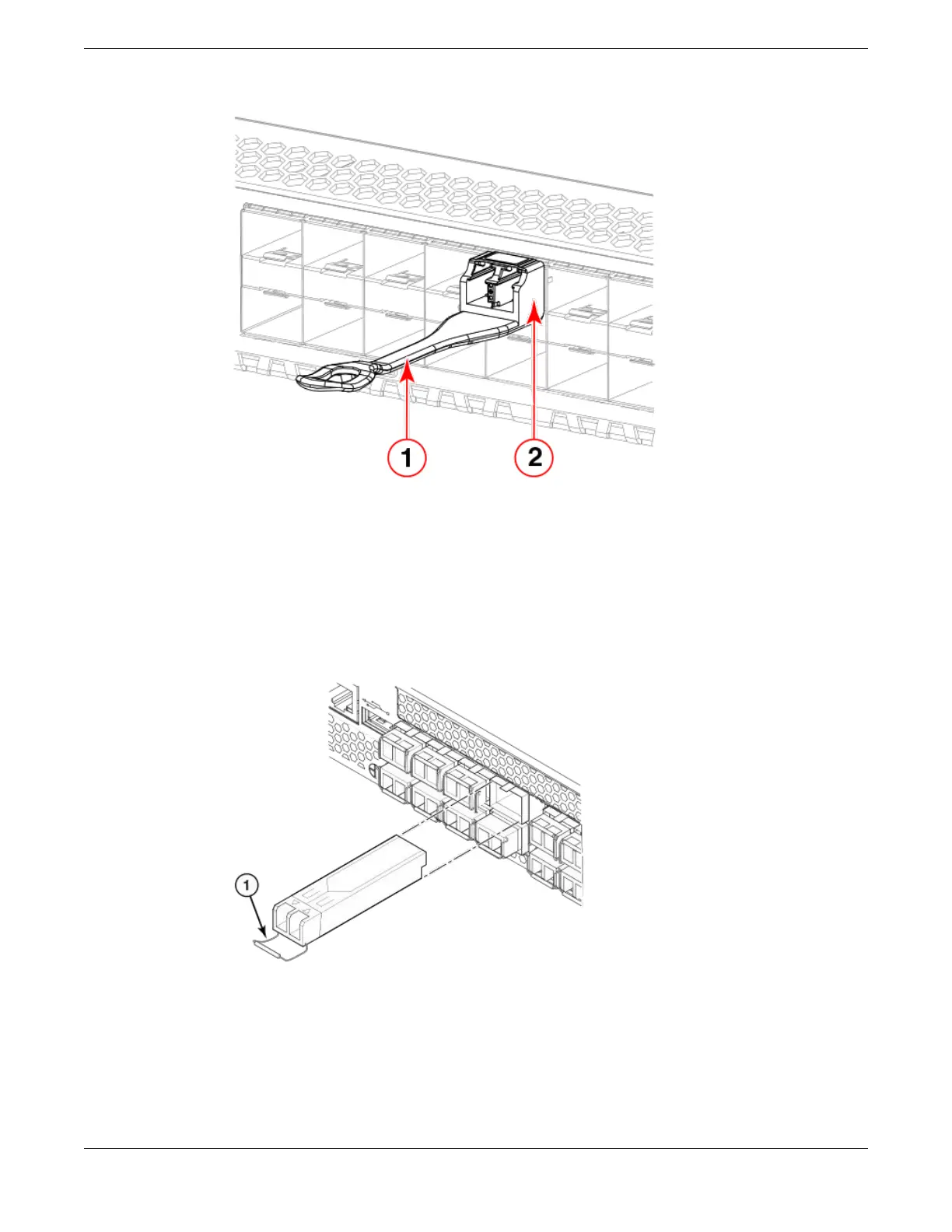

a. Pull tab
b. Transceiver
Figure 33: Installing an SFP+ transceiver with pull tab into the interface module
port
• If the transceiver uses a bail latch mechanism (10 GbE transceivers only), ensure that the bail
(wire handle) is in the unlocked position, grasp the transceiver, and push it into the port until
firmly seated. Close the bail to latch the transceiver in the slot.
a. Bail
Figure 34: Installing an SFP+ transceiver with bail latch into the interface
module port
Transceivers are keyed so that they can only be inserted with the correct orientation. If a transceiver
does not slide in easily, ensure that it is correctly oriented.
Transceivers and Cables
Installing an SFP+ transceiver
ExtremeRouting SLX 9640 Hardware Installation Guide 67
