• Some QSFP28 transceivers have an integrated cable attached. You do not need to install a separate
cable.
To insert an QSFP28 transceiver and cable, complete the following steps.
1. Push the transceiver into the port using the pull tab. Transceivers are keyed so that they can only be
inserted with the correct orientation. If a transceiver does not slide in easily, ensure that it is correctly
oriented. Push the correctly oriented transceiver into the port until it is firmly seated and the latching
mechanism clicks.
Note
Always use the transceiver pull tab to insert or remove the QSFP28 transceivers, as the
transceiver might be hot.
a. Pull tab
b. QSFP28 cable
c. QSFP28 transceiver

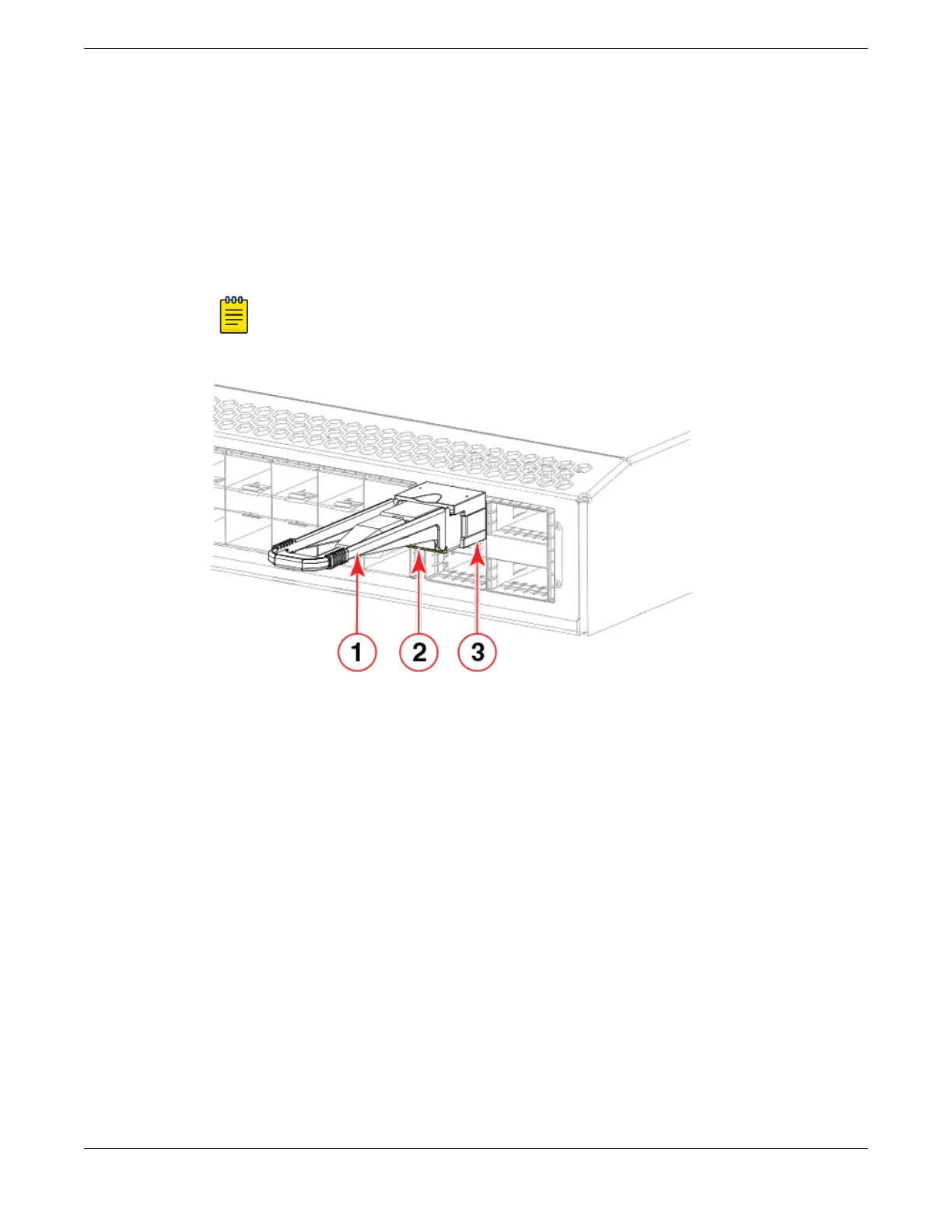

Figure 37: Installing a QSFP28 transceiver into the interface module port
After insertion, the LEDs have the following status:
• O - no link
• On - link, no trac
•
Rapid flash - link with trac
• Slow flash (one second on, one second o) - beaconing feature
Installing a QSFP28 transceiver
Transceivers and Cables
70 ExtremeRouting SLX 9640 Hardware Installation Guide
