Extron electronics XTP II CrossPoint Series User Manual

XTP CP 4i DVI Pro (DVI Pro Input board) — See figure 10.
IN
XTP CP 4i DVI Pro
AUDIO
LR LR LR LR
IN
88 8888 88 77

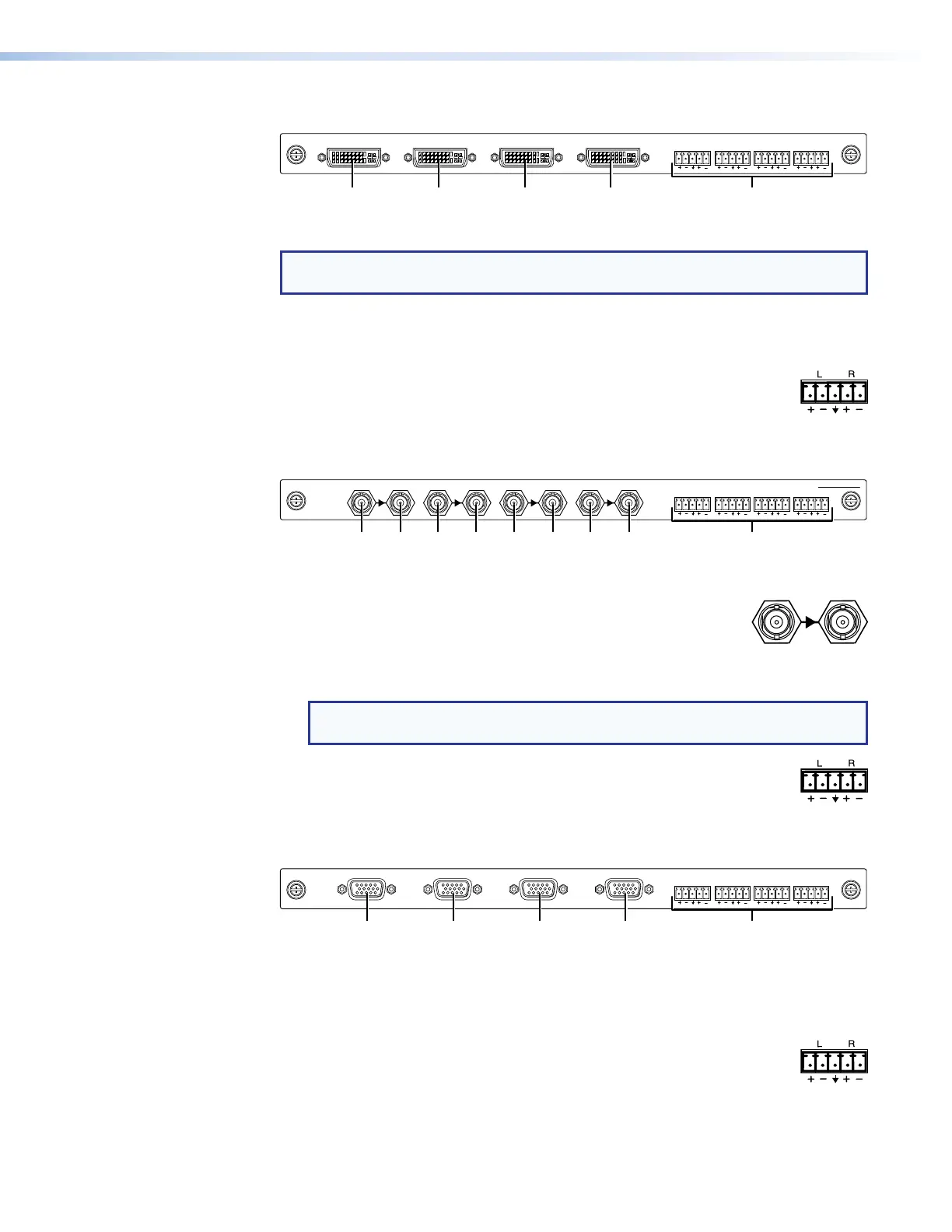

Figure 10. DVI Pro Input Board Connectors
NOTE: Although the DVI Pro boards use DVI-I connectors, the switchers handle
only DVI-D (digital) video.
8
Input connectors — Connect a DVI cable between this port and the DVI
output port of the digital video source (see DVI connectors on page 24 for pin
assignments).
7
Audio Inputs (analog audio) connectors — Connect balanced or
unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw
connectors (see Analog audio input connectors on page 25 to wire
the connectors).
XTP CP 4i 3G (3G/HD-SDI/SDI Input board) — See figure 11.
IN
AUDIO
LR LR LR LR
IN
XTP CP 4i 3G-SDI
LOOP OUTINPUTLOOP OUTINPUTLOOP OUTINPUTLOOP OUTINPUT
77¢¢¢¢¢¢¢¢99999999
Figure 11. 3G Input Board Connectors
9
Input connectors — Connect a 3G-SDI, HD-SDI, or SDI video
LOOP OUTINPUT
input to this BNC connector. The board also accepts embedded
digital audio on this port.
¢
Loop Out connector — Connect a local digital display to this
BNC connector for a buffered loop-through of the input signal.
NOTE: The board ships with 75-ohm terminators on the Loop Out connectors.
Extron recommends leaving these installed when the loop out is not used.
7
Audio Inputs (analog audio) connectors — Connect balanced or
unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw
connectors (see Analog audio input connectors on page 25 to wire
the connectors).
XTP CP 4i VGA (VGA Input board) — See figure 12.
IN
XTP CP 4i VGA
AUDIO
LR LR LR LR
IN
77££££££££
Figure 12. VGA Input Board Connectors
£
Input connectors — Connect a VGA cable between this port and the analog
video output port of the digital video source (see Analog video connectors on
page 24 for pin assignments and non-RGB video formats).
7
Audio Inputs (analog audio) connectors — Connect balanced or
unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw
connectors (see Analog audio input connectors on page 25 to wire
the connectors).
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 17
