XTP CP 4i Fiber 4K (fiber optic input board) — See figure 7.
INPUTS
SIGLINK
XTP IN
LANLAN LANLAN
SIG LINK
XTP IN
SIGLINK
XTP IN
SIGLINK
XTP IN
OVER FIBER
XTP CP 4i FIBER 4K
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
33 3333 3355 5555 55 44

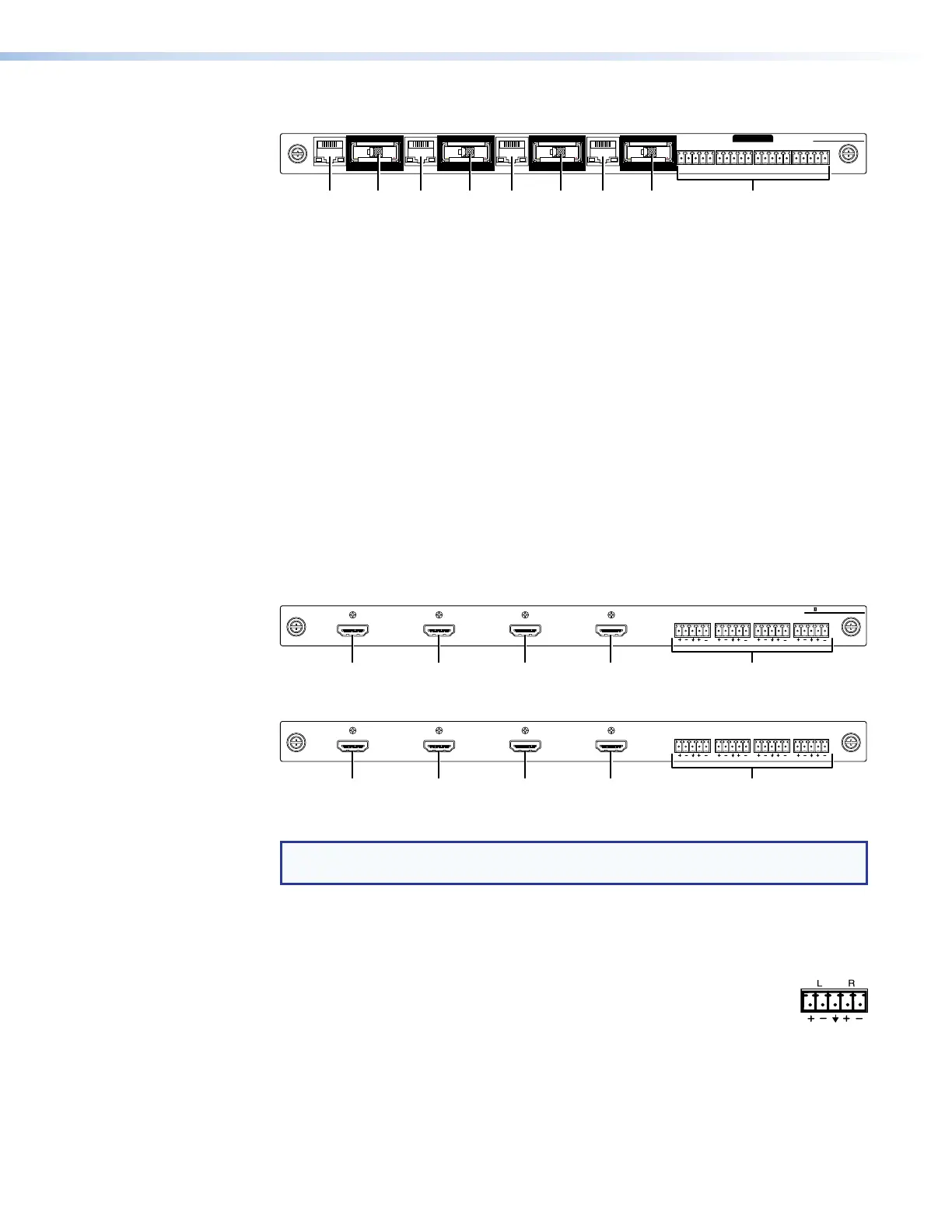

Figure 7. Fiber Optic Input Board Connectors and Indicators
5
XTP In connectors — Connect a fiber optic cable between the Tx connector
on a compatible Extron fiber optic transmitter and this connector. This board
uses small form factor pluggable (SFP) modules with industry-standard LC fiber
optics connectors to provide reliable physical connectivity and precise fiber core
alignment.
Signal LED — Indicates that a cable is connected to a fiber optic transmitter.
Link LED — Indicates that a valid fiber optic signal is detected.
3
LAN (Ethernet) connectors — As desired, connect a TP cable between a
host device or control LAN and this connector for passive extension to the LAN
(Ethernet) connector on the connected endpoint (see TP connectors on page 21
to wire the connector).
4
IR/RS-232 Over Fiber Connectors — If desired, connect serial RS-232 signals,
modulated IR signals, or both to these 3.5 mm, 5-pole captive screw connectors
for bidirectional RS-232 and IR communications on the associated inputs (see
RS-232 and IR connectors on page 23 to wire the connectors).
XTP II CP 4i 4k PLUS and XTP CP 4i HDMI (HDMI Input boards)
See figure 8 and figure 9.
AUDIO
LR LR LR LR
INPUTS
XTP II CP 4i HD 4K PLUS
66 6666 66 77
Figure 8. 4K HDMI Input Board Connectors
IN
XTP CP 4i HDMI
AUDIO
LR LR LR LR
IN
66 6666 66 77
Figure 9. HDMI Input Board Connectors
NOTE: The two boards are physically and functionally similar. The difference is in the
maximum resolution supported.
6
Input connectors — Connect an HDMI cable between this port and the HDMI
output port of the digital video source (see HDMI connectors on page 23 for
pin assignments and to use the LockIt HDMI Cable Lacing Bracket to secure the
connector to the transmitter).
7
Audio Inputs (analog audio) connectors — Connect balanced or
unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw
connectors (see Analog audio input connectors on page 25 to wire
the connectors).
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 16
