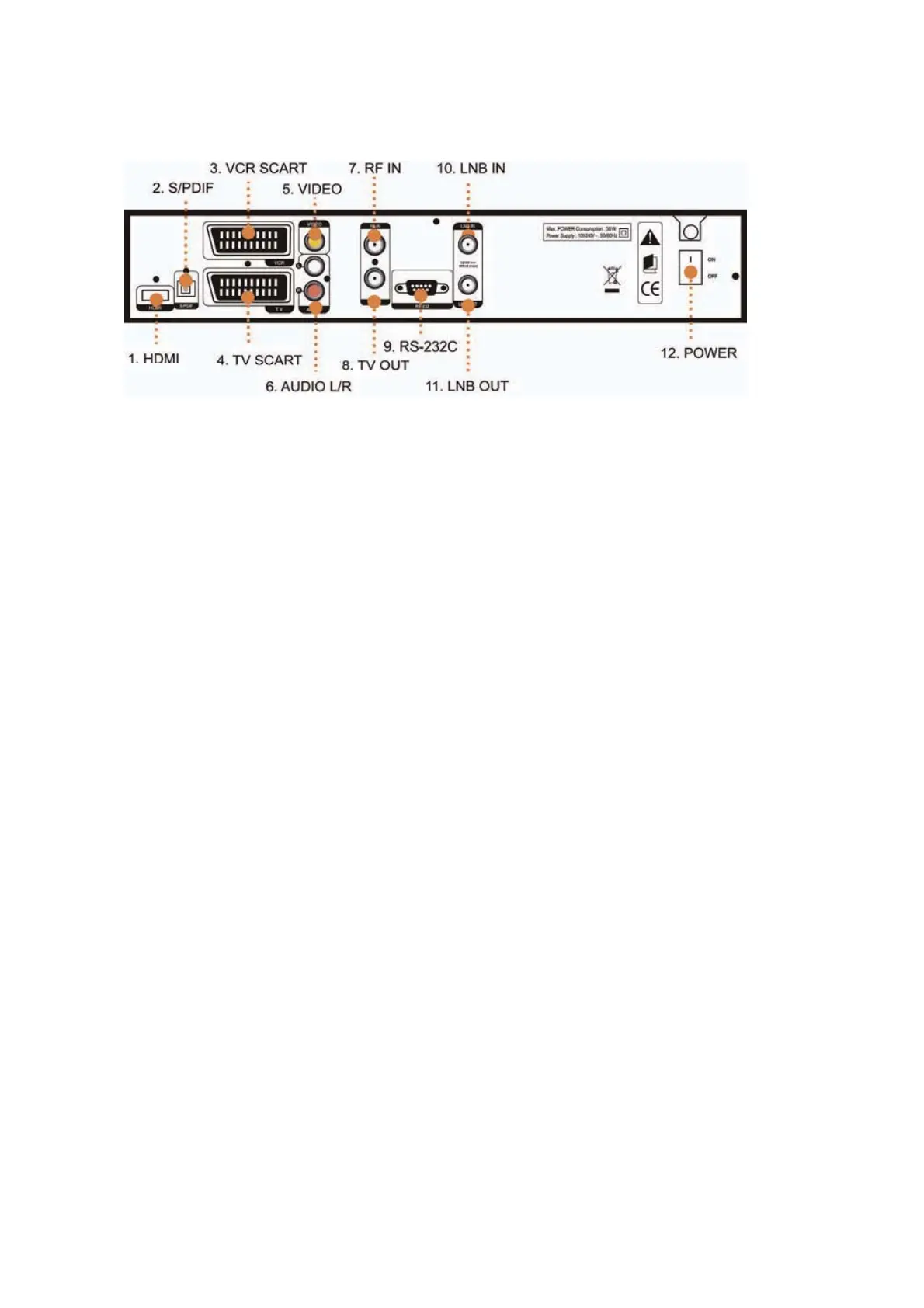

1.3.2 Rear Panel
1. HDMI
Connect this connector to your TV via a HDMI cable.
2. S/PDIF
Connect S/PDIF to audio input of your amplifier with optical digital port via an optical cable.
3. VCR SCART(*Optional)
Connect this connector to your VCR via a SCART cable.
4. TV SCART(*Optional)
Connect this connector to your TV via a SCART cable.
5. VIDEO
Connect VIDEO to video input of your TV or VCR via a RCA cable.
6. AUDIO L/R
Connect AUDIO L/R to the matching Audio Inputs of your TV/VCR via a RCA cable.
7. RF-IN
Connect RF-IN to your TV antenna or cable TV system.
8. TV-OUT
Connect TV OUT to your TV antenna input.
9. RS-232C
Connect RS-232C to your PC via a serial cable to upgrade S 30.12CI software
10. LNB IN
Connect a coaxial cable of your LNB to this connector.
11. LNB OUT
Connect LNB OUT to another set-top box.
12. POWER
Turn the S 30.12CI H On/Off.
