Fagor MCS Series - Dimensions; Technical data

Digital Brushless AC servo drive system - Ref.0707 MCS- 25/92

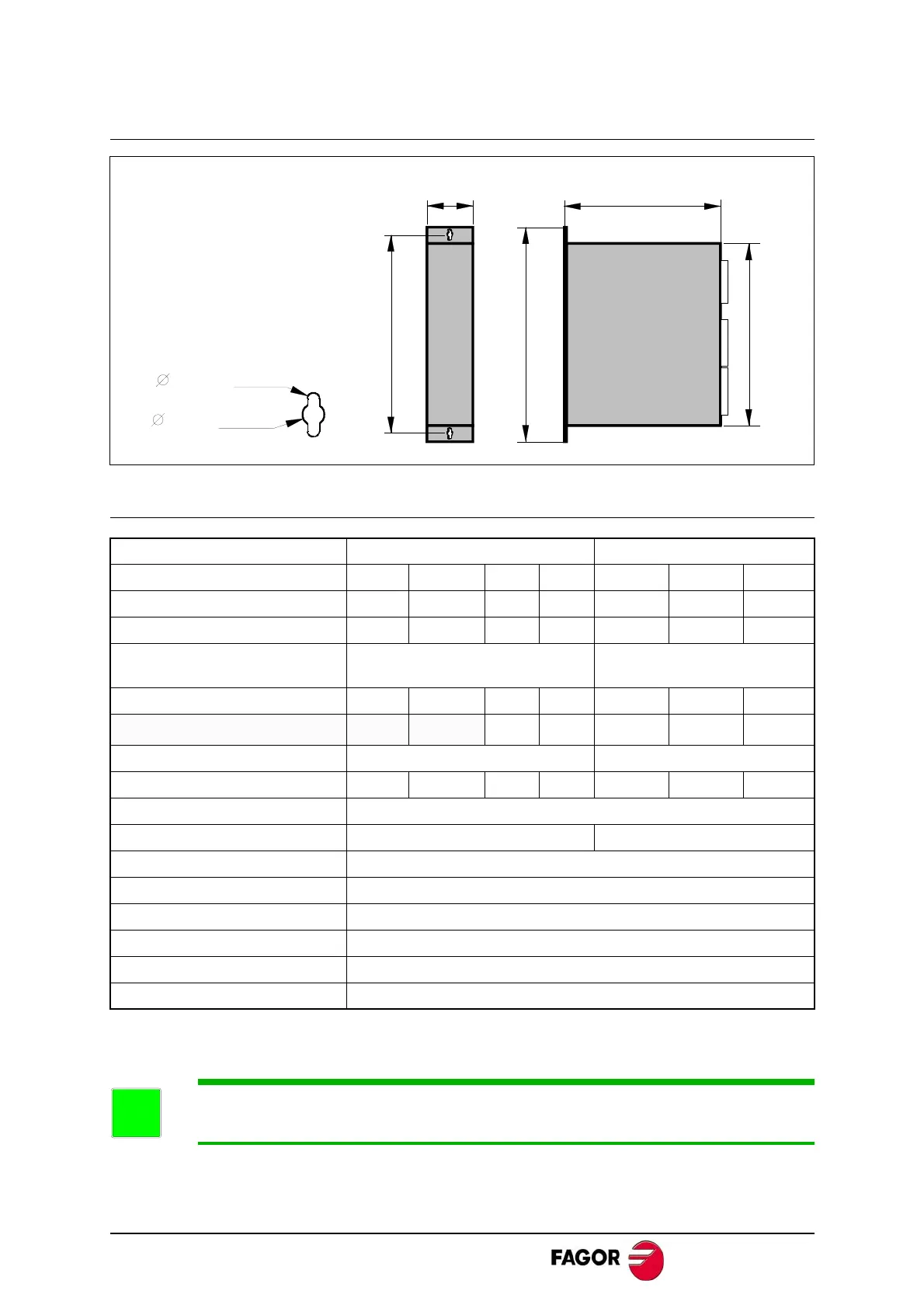

Dimensions
Technical data
220 V (L series) 400 V ( H series)
05 10 20 30 04 08 16
Rated output current (Arms) 2.5 5 10 15 2 4 8
Peak current (0.5 s) (Arms) 5 10 20 30 4 8 16
Power supply
3 AC 220 V / 240 V ± 10 %
50 Hz at 60 Hz ± 10 %
3 AC 400 V / 460 V ± 10 %
50 Hz at 60 Hz ± 10 %
Consumption (Arms) 5.6 11.1 22.2 33.3 4.4 8.9 16.7
1
On single-phase models (9.5)
1
(18.5)
1
Over-voltage protection 430 V DC 803 V DC
Internal ballast (
Ω)
112 56 28 18 132 132 66
Power of the internal ballast (W) 150
Ballast trigger 416 V DC 780 V DC
Thermal protection of the
90 °C (194 °F)
Operating temperature
5 °C / 45 °C (41 °F / 113 °F)
Storage temperature
- 4 °F / 60 °C (- 4°F / 140 °F)
Protection degree
IP20
(a
Module dimensions
67 x 280 x 245 mm ( 2.48 x 11.8 x 9.05 inches )
Module mass
3.85 kg (8.5 lb)
(a
IP20 means that it is protected against objects of a diameter larger than 12.5 mm, but not
against water splashes. Therefore, the unit must be mounted inside an electrical cabinet.
Modules MCS-05L and MCS-10L (220 V AC) may be supplied with a single-
phase power voltage.
67 mm (2.63") 245 mm (9.64")
280 mm (11.02") 330 mm (12.99")
300 mm (11.8")
6 mm (0.23")
11 mm (0.43")
MCS
