MCS- 64/92 Digital Brushless AC servo drive system - Ref.0707
K group. Monitoring
Function: Contains the value of power of the external ballast resistor.
Valid values: 200, ..., 2000 W.
Default value: 200 W.
Function: Contains the value of the energy pulse that can be dissipated
by the external ballast resistor.
Valid values: 200, ..., 2000 J.
Default value: 200 J.
Function: Motor temperature in degrees centigrade. (for the time being,
it is now only valid for the FKM family).
Valid values: - 20, ..., 200 °C.
Function: It displays the temperature of the heatsink of the power stage.
Valid values: 0, ..., 200 °C.
Function: Variable internally useful to the system. It measures the
internal load level of the calculation of the i
2
t at the drive in
percentage used over the maximum.
Valid values: 0 (by default), ..., 100 %.
Function: Variable internally useful to the system. It measures the
internal load level of the calculation of the i
2
t at the motor in
percentage used over the maximum.
Valid values: 0 (by default), ..., 100 %.

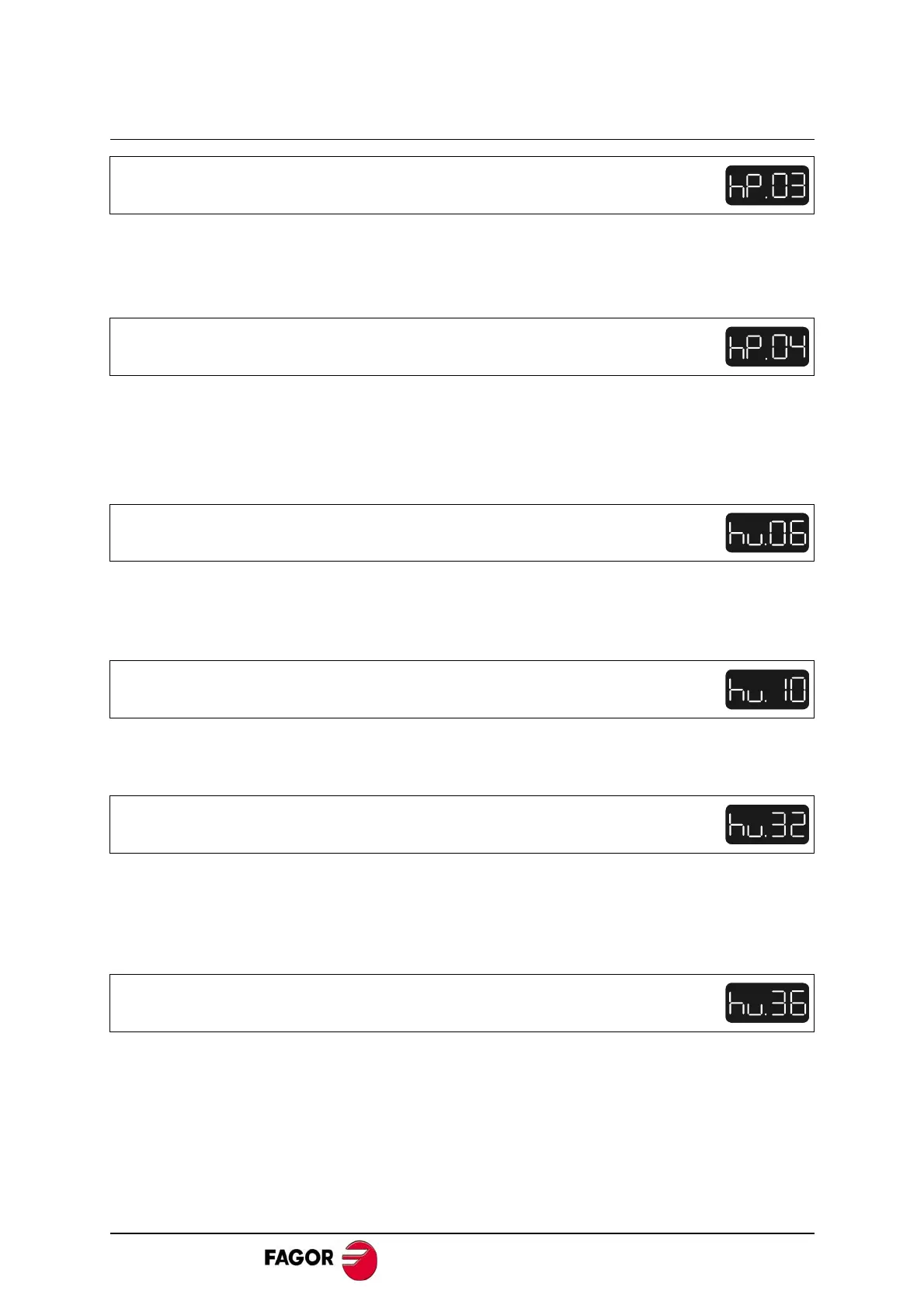

KP3 USER, RW ExtBallastPower
KP4 USER, RW ExtBallastEnergyPulse
KV6 BASIC, RO MotorTemperature
KV10 USER, RO CoolingTemperature
KV32 USER, RO I
2
tDrive
KV36 USER, RO I
2
tMotor
