Digital Brushless AC servo drive system - Ref.0707 MCS- 69/92
Function: Determines the communications parameters of the UART
(Universal Asynchronous Receiver/Transmitter) of the serial
line: baudrate, parity, Nr of bits, Nr of stop bits.
Default value: 1540 (9600, no parity, 8 data bits, 1 stop bit).

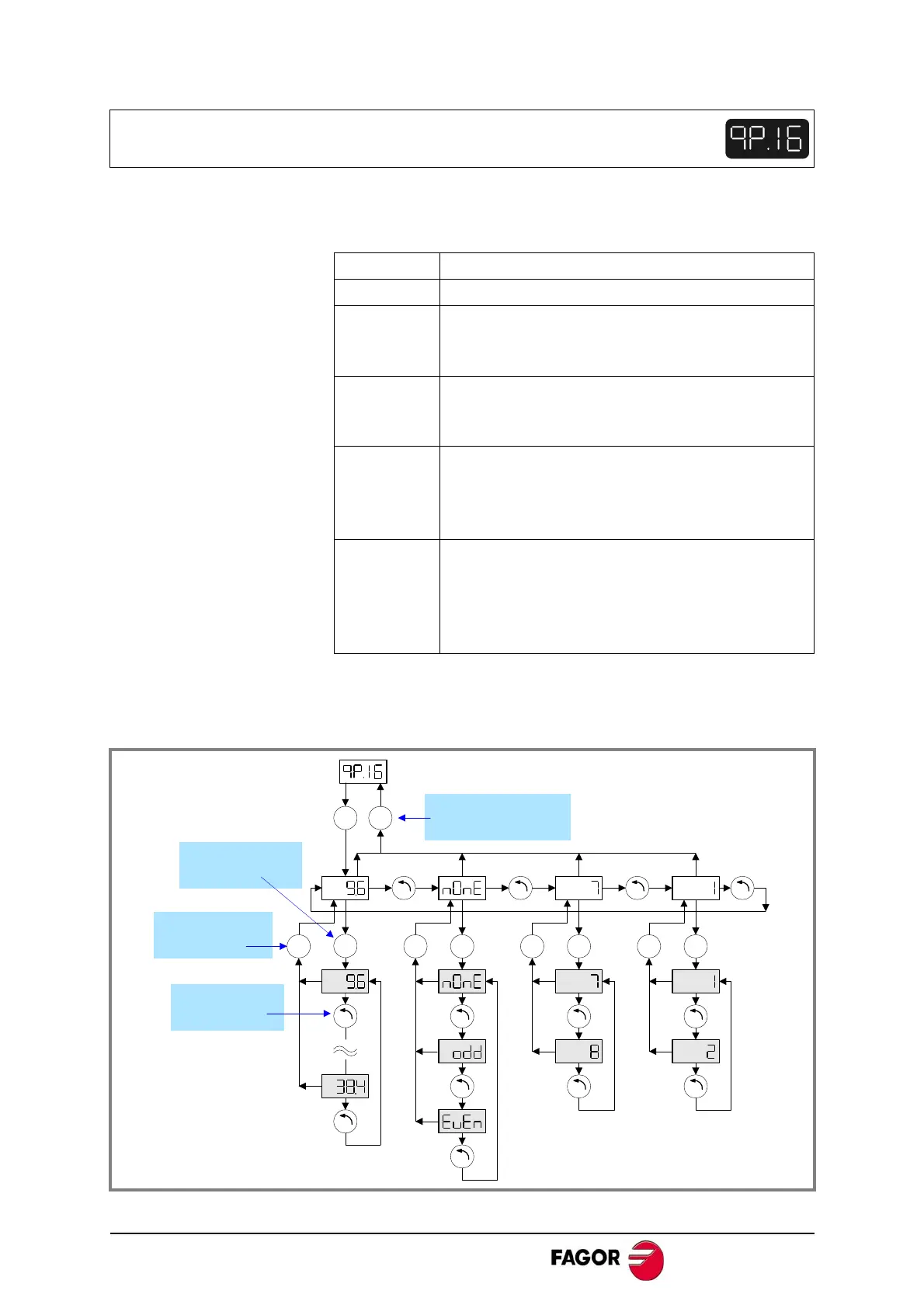

To edit this parameter, the programming module has a
submenu like the one in the figure:
QP16 USER, RW SerialSettings
Bit Function
15, ..., 12
Reserved
11, 10 Stops bits
1 Stop bits
2 Stop bits
9, ..., 6 Data bits
7 Data bits
8 Data bits
5, 4 Parity bits
0 no parity
1 even parity
2 even parity
3, ..., 0 Communication speed (baudrate)
0 2400 Bd 4 9600 Bd
1 3600 Bd 5 19200 Bd
2 4800 Bd 6 38400 Bd
3 7200 Bd
C L
L
C
CL CL CL
A long push validates
the value shown by the
display
It goes into modifying
the selected field. The
display blinks
Successive rotations
scroll the possible
values of the field
A long push at any of the
fields validates the value of
parameter QP16
