MCS- 68/92 Digital Brushless AC servo drive system - Ref.0707

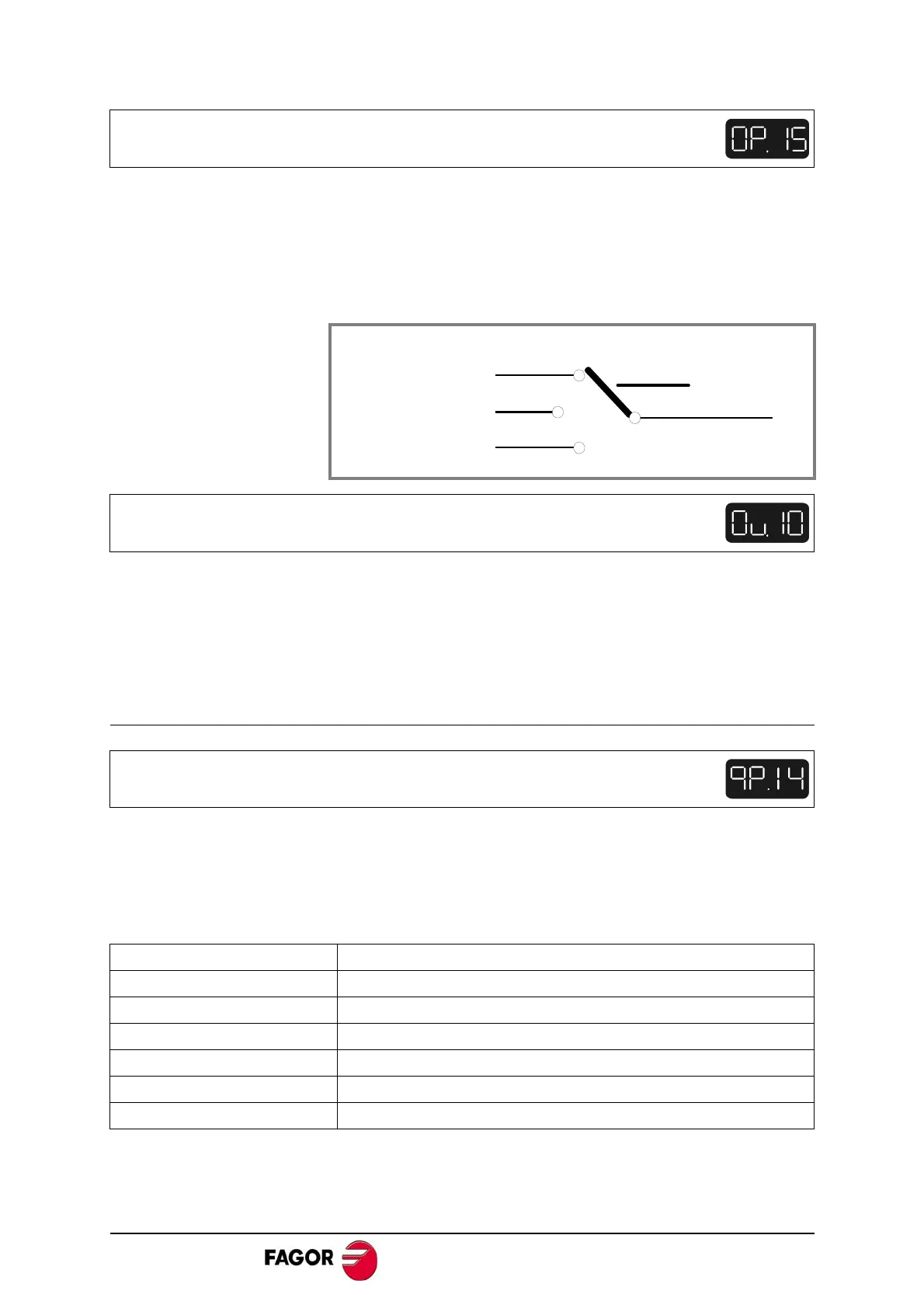

Function: Selector of the warning that will be displayed by the
programmable output when function OutFunc7 is selected.
Valid values:
0. I
2
t Motor (by default)
1. I
2
t Ballast.
2. I
2
t Drive.
Function: The OV10 variable contains the value of the output status of
the various functions that may be selected with OP14.
Valid values: 0 and 1.
Default value: 0.
Q group. Communication
Function: Determines which hardware communication mode has been
established (RS-232, RS-485, RS-422) with MODBUS
communication protocol and it is established through the
serial COMMUNICATIONS line connector.
Valid values: 0, ..., 7.
Default value: 0. (RTU) & RS-232.
OP15 USER, RW DigitalOutputWarningSelector
OV10 USER, RO DigitalOutputs
QP14 USER, RW ProtocolTypeSelector
Value MODBUS
0, 1, 2 (RTU) & RS-232
3 (RTU) & RS-485
4 (RTU) & RS-422
5 (ASCII) & RS-232
6 (ASCII) & RS-485
7 (ASCII) & RS-422
OV10
I2t MOTOR
I2t BALLAST
I2t DRIVE
OP15
2
0
1
