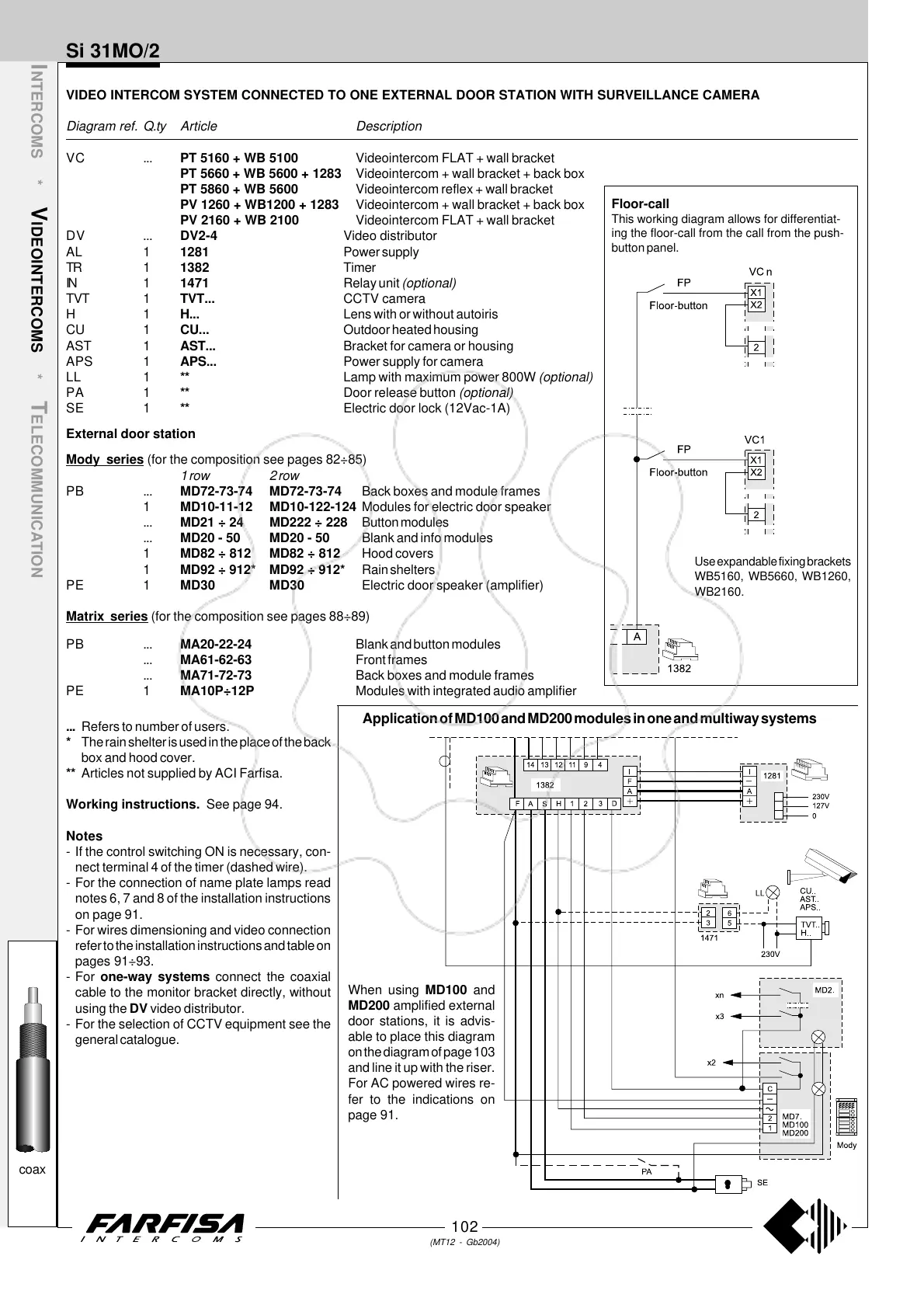

VIDEO INTERCOM SYSTEM CONNECTED TO ONE EXTERNAL DOOR STATION WITH SURVEILLANCE CAMERA
Diagram ref. Q.ty Article Description
VC ... PT 5160 + WB 5100 Videointercom FLAT + wall bracket
PT 5660 + WB 5600 + 1283 Videointercom + wall bracket + back box
PT 5860 + WB 5600 Videointercom reflex + wall bracket
PV 1260 + WB1200 + 1283 Videointercom + wall bracket + back box
PV 2160 + WB 2100 Videointercom FLAT + wall bracket
DV ... DV2-4 Video distributor
AL 1 1281 Power supply
TR 1 1382 Timer
IN 1 1471 Relay unit (optional)
TVT 1 TVT... CCTV camera
H1H... Lens with or without autoiris
CU 1 CU... Outdoor heated housing
AST 1 AST... Bracket for camera or housing
APS 1 APS... Power supply for camera
LL 1 ** Lamp with maximum power 800W (optional)
PA 1 ** Door release button (optional)
SE 1 ** Electric door lock (12Vac-1A)
External door station
Mody series (for the composition see pages 82÷85)
1 row 2 row
PB ... MD72-73-74 MD72-73-74 Back boxes and module frames
1 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and info modules
1 MD82 ÷ 812 MD82 ÷ 812 Hood covers
1 MD92 ÷ 912* MD92 ÷ 912* Rain shelters
PE 1 MD30 MD30 Electric door speaker (amplifier)
Matrix series (for the composition see pages 88÷89)
PB ... MA20-22-24 Blank and button modules
... MA61-62-63 Front frames
... MA71-72-73 Back boxes and module frames
PE 1 MA10P÷12P Modules with integrated audio amplifier
... Refers to number of users.
* The rain shelter is used in the place of the back
box and hood cover.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 94.
Notes
- If the control switching ON is necessary, con-
nect terminal 4 of the timer (dashed wire).
- For the connection of name plate lamps read
notes 6, 7 and 8 of the installation instructions
on page 91.
- For wires dimensioning and video connection
refer to the installation instructions and table on
pages 91÷93.
- For one-way systems connect the coaxial
cable to the monitor bracket directly, without
using the DV video distributor.
- For the selection of CCTV equipment see the
general catalogue.
Si 31MO/2
Use expandable fixing brackets
WB5160, WB5660, WB1260,
WB2160.
Floor-call
This working diagram allows for differentiat-
ing the floor-call from the call from the push-
button panel.
Application of MD100 and MD200 modules in one and multiway systems
When using MD100 and
MD200 amplified external
door stations, it is advis-
able to place this diagram
on the diagram of page 103
and line it up with the riser.
For AC powered wires re-
fer to the indications on
page 91.
