23
(MT12 - Gb2004)
U
P
3
"
16
/
15
100
1
"
16
/
11
42.5
5
"
16
/
13
148
4
"
16
/
3
106
1
"
16
/
13
46
5
"
16
/
15
151

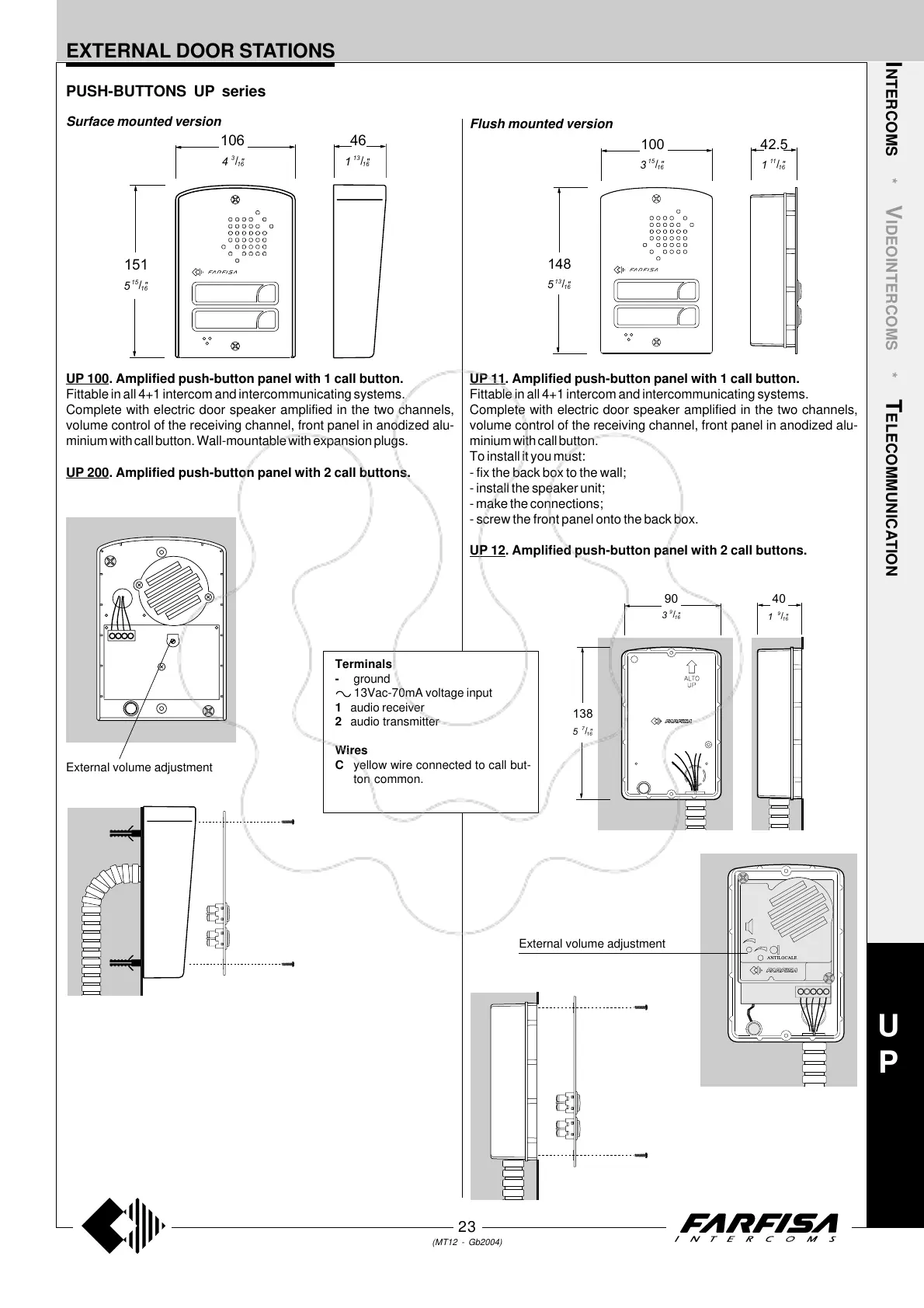

UP 100. Amplified push-button panel with 1 call button.
Fittable in all 4+1 intercom and intercommunicating systems.
Complete with electric door speaker amplified in the two channels,
volume control of the receiving channel, front panel in anodized alu-
minium with call button. Wall-mountable with expansion plugs.
UP 200. Amplified push-button panel with 2 call buttons.
External volume adjustment
Surface mounted version
Flush mounted version
External volume adjustment
UP 11. Amplified push-button panel with 1 call button.
Fittable in all 4+1 intercom and intercommunicating systems.
Complete with electric door speaker amplified in the two channels,
volume control of the receiving channel, front panel in anodized alu-
minium with call button.
To install it you must:
- fix the back box to the wall;
- install the speaker unit;
- make the connections;
- screw the front panel onto the back box.
UP 12. Amplified push-button panel with 2 call buttons.
Terminals
- ground
13Vac-70mA voltage input
1 audio receiver
2 audio transmitter
Wires
C yellow wire connected to call but-
ton common.
PUSH-BUTTONS UP series
EXTERNAL DOOR STATIONS
INTERCOMS * VIDEOINTERCOMS * TELECOMMUNICATION
3
"
16
/
9
90
1
"
16
/
9
40
5
"
16
/
7
138
