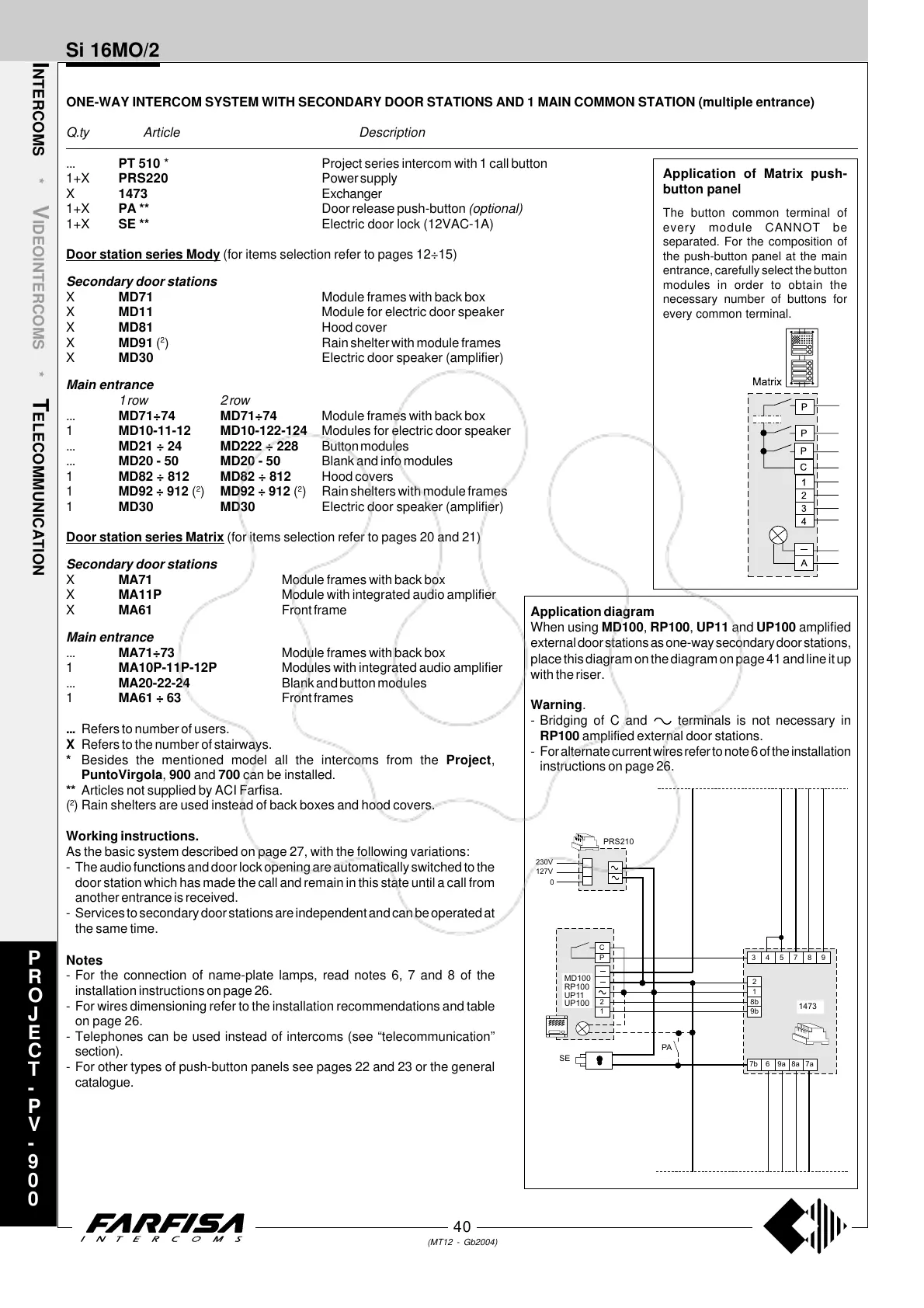

ONE-WAY INTERCOM SYSTEM WITH SECONDARY DOOR STATIONS AND 1 MAIN COMMON STATION (multiple entrance)
P
R
O
J
E
C
T
-
P
V
-
9
0
0
PA
SE
230V
127V
0
3
45789
PRS210
1473
MD100
RP100
UP11
UP100
2
1
8b
9b
7b
6 9a8a7a
C
P
2
1
Q.ty Article Description
... PT 510 * Project series intercom with 1 call button
1+X PRS220 Power supply
X 1473 Exchanger
1+X PA ** Door release push-button (optional)
1+X SE ** Electric door lock (12VAC-1A)
Door station series Mody (for items selection refer to pages 12÷15)
Secondary door stations
X MD71 Module frames with back box
X MD11 Module for electric door speaker
X MD81 Hood cover
X MD91 (
2
) Rain shelter with module frames
X MD30 Electric door speaker (amplifier)
Main entrance
1 row 2 row
... MD71÷74 MD71÷74 Module frames with back box
1 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and info modules
1 MD82 ÷ 812 MD82 ÷ 812 Hood covers
1 MD92 ÷ 912 (
2
) MD92 ÷ 912 (
2
) Rain shelters with module frames
1 MD30 MD30 Electric door speaker (amplifier)
Door station series Matrix (for items selection refer to pages 20 and 21)
Secondary door stations
X MA71 Module frames with back box
X MA11P Module with integrated audio amplifier
X MA61 Front frame
Main entrance
... MA71÷73 Module frames with back box
1 MA10P-11P-12P Modules with integrated audio amplifier
... MA20-22-24 Blank and button modules
1 MA61 ÷ 63 Front frames
... Refers to number of users.
X Refers to the number of stairways.
* Besides the mentioned model all the intercoms from the Project,
PuntoVirgola, 900 and 700 can be installed.
** Articles not supplied by ACI Farfisa.
(
2
) Rain shelters are used instead of back boxes and hood covers.
Working instructions.
As the basic system described on page 27, with the following variations:
- The audio functions and door lock opening are automatically switched to the
door station which has made the call and remain in this state until a call from
another entrance is received.
- Services to secondary door stations are independent and can be operated at
the same time.
Notes
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the
installation instructions on page 26.
- For wires dimensioning refer to the installation recommendations and table
on page 26.
- Telephones can be used instead of intercoms (see “telecommunication”
section).
- For other types of push-button panels see pages 22 and 23 or the general
catalogue.
Application diagram
When using MD100, RP100, UP11 and UP100 amplified
external door stations as one-way secondary door stations,
place this diagram on the diagram on page 41 and line it up
with the riser.
Warning.
- Bridging of C and
terminals is not necessary in
RP100 amplified external door stations.
- For alternate current wires refer to note 6 of the installation
instructions on page 26.
Application of Matrix push-
button panel
The button common terminal of
every module CANNOT be
separated. For the composition of
the push-button panel at the main
entrance, carefully select the button
modules in order to obtain the
necessary number of buttons for
every common terminal.
