INTERCOMS
Technical manual 12 Edition 2004

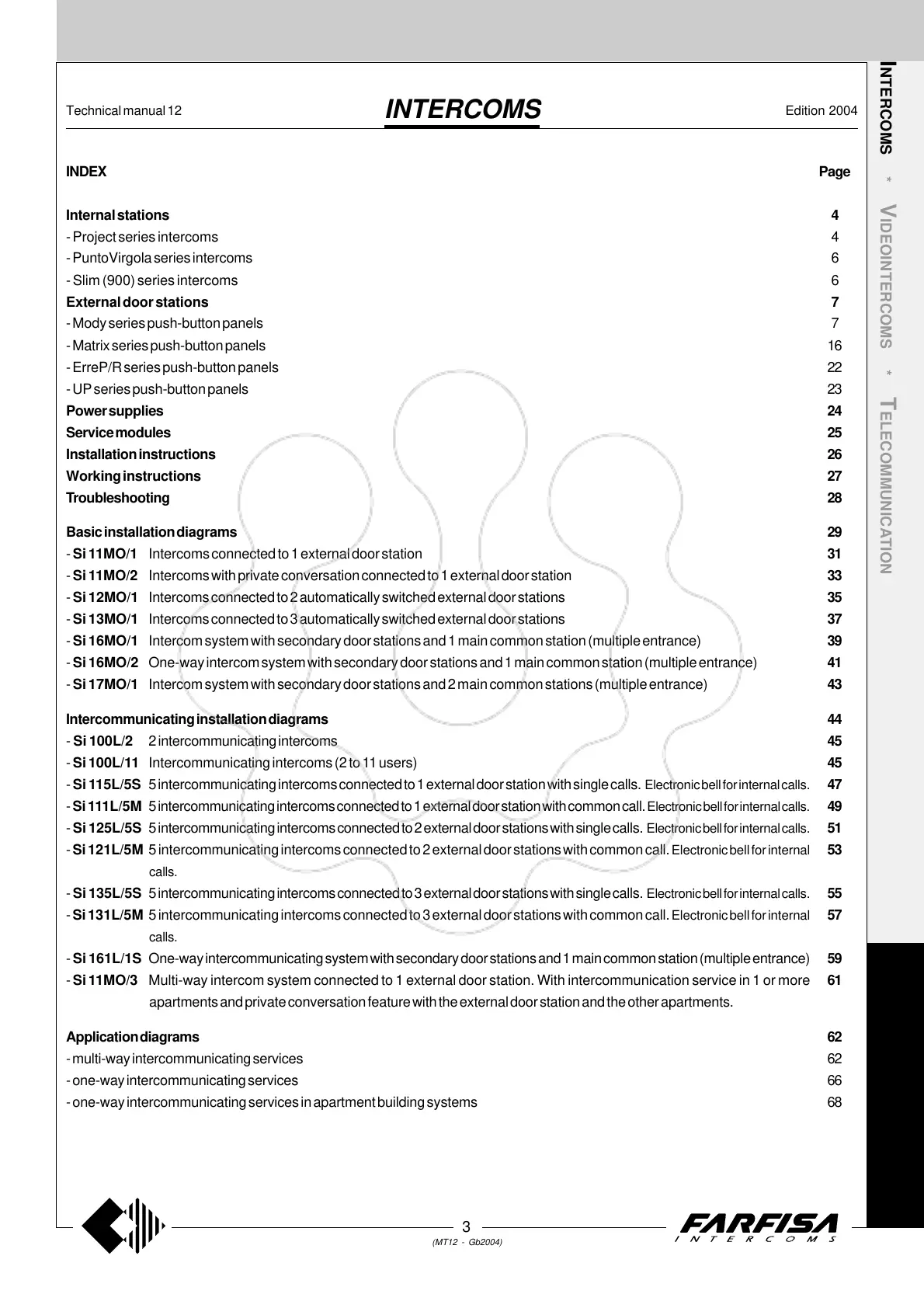

INDEX
Internal stations
- Project series intercoms
- PuntoVirgola series intercoms
- Slim (900) series intercoms
External door stations
- Mody series push-button panels
- Matrix series push-button panels
- ErreP/R series push-button panels
- UP series push-button panels
Power supplies
Service modules
Installation instructions
Working instructions
Troubleshooting
Basic installation diagrams
- Si 11MO/1 Intercoms connected to 1 external door station
- Si 11MO/2 Intercoms with private conversation connected to 1 external door station
- Si 12MO/1 Intercoms connected to 2 automatically switched external door stations
- Si 13MO/1 Intercoms connected to 3 automatically switched external door stations
- Si 16MO/1 Intercom system with secondary door stations and 1 main common station (multiple entrance)
- Si 16MO/2 One-way intercom system with secondary door stations and 1 main common station (multiple entrance)
- Si 17MO/1 Intercom system with secondary door stations and 2 main common stations (multiple entrance)
Intercommunicating installation diagrams
- Si 100L/2 2 intercommunicating intercoms
- Si 100L/11 Intercommunicating intercoms (2 to 11 users)
- Si 115L/5S 5 intercommunicating intercoms connected to 1 external door station with single calls.
Electronic bell for internal calls.
- Si 111L/5M 5 intercommunicating intercoms connected to 1 external door station with common call. Electronic bell for internal calls.
- Si 125L/5S 5 intercommunicating intercoms connected to 2 external door stations with single calls. Electronic bell for internal calls.
- Si 121L/5M 5 intercommunicating intercoms connected to 2 external door stations with common call. Electronic bell for internal
calls.
- Si 135L/5S 5 intercommunicating intercoms connected to 3 external door stations with single calls. Electronic bell for internal calls.
- Si 131L/5M 5 intercommunicating intercoms connected to 3 external door stations with common call. Electronic bell for internal
calls.
- Si 161L/1S One-way intercommunicating system with secondary door stations and 1 main common station (multiple entrance)
- Si 11MO/3 Multi-way intercom system connected to 1 external door station. With intercommunication service in 1 or more
apartments and private conversation feature with the external door station and the other apartments.
Application diagrams
- multi-way intercommunicating services
- one-way intercommunicating services
- one-way intercommunicating services in apartment building systems
Page
4
4
6
6
7
7
16
22
23
24
25
26
27
28
29
31
33
35
37
39
41
43
44
45
45
47
49
51
53
55
57
59
61
62
62
66
68
