46
(MT12 - Gb2004)
Si 115L/5S
I
NTERCOMS *
V
IDEOINTERCOMS *
T
ELECOMMUNICATION

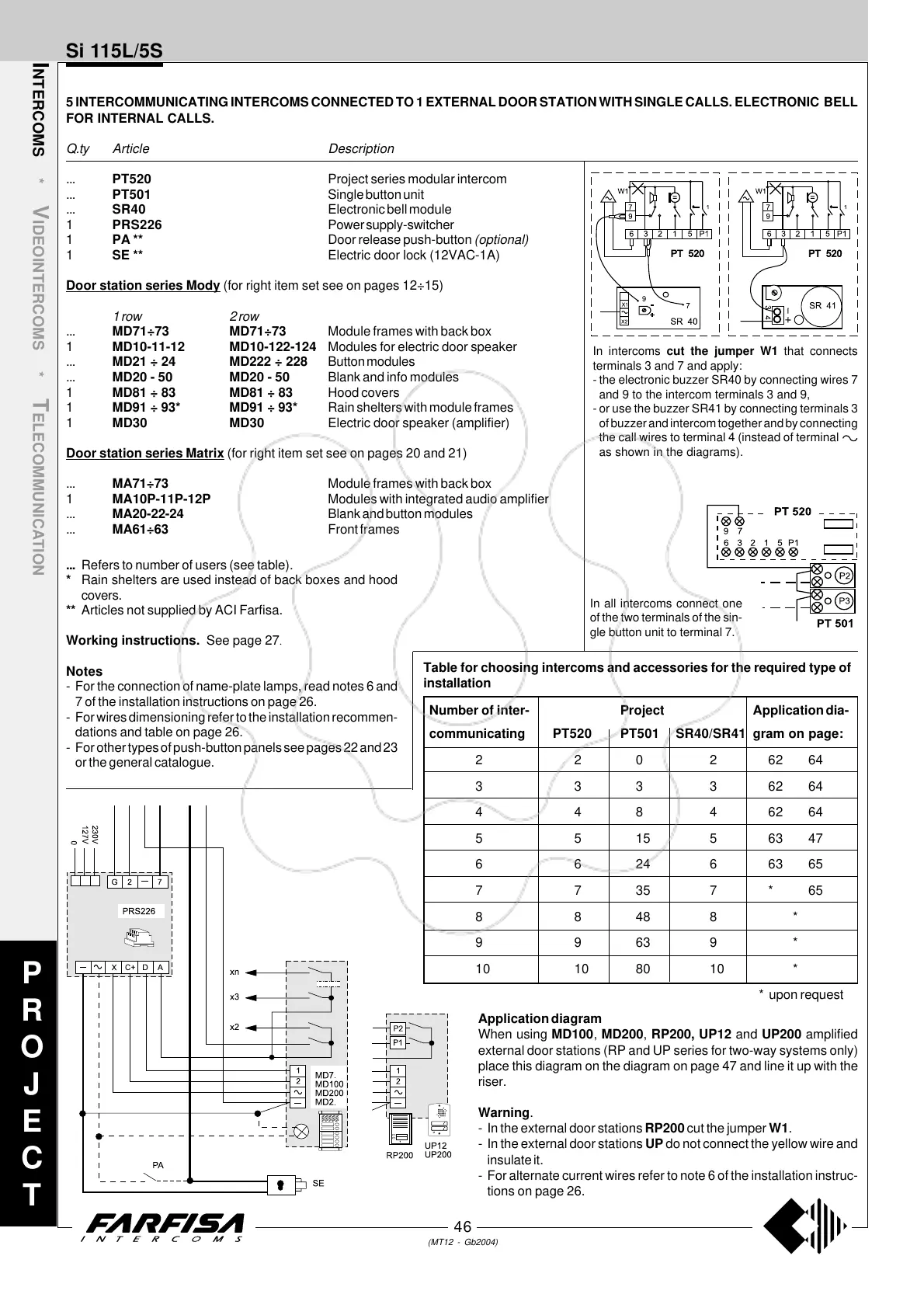

5 INTERCOMMUNICATING INTERCOMS CONNECTED TO 1 EXTERNAL DOOR STATION WITH SINGLE CALLS. ELECTRONIC BELL
FOR INTERNAL CALLS.
Q.ty Article Description
... PT520 Project series modular intercom
... PT501 Single button unit
... SR40 Electronic bell module
1 PRS226 Power supply-switcher
1 PA ** Door release push-button (optional)
1 SE ** Electric door lock (12VAC-1A)
Door station series Mody (for right item set see on pages 12÷15)
1 row 2 row
... MD71÷73 MD71÷73 Module frames with back box
1 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and info modules
1 MD81 ÷ 83 MD81 ÷ 83 Hood covers
1 MD91 ÷ 93* MD91 ÷ 93* Rain shelters with module frames
1 MD30 MD30 Electric door speaker (amplifier)
Door station series Matrix (for right item set see on pages 20 and 21)
... MA71÷73 Module frames with back box
1 MA10P-11P-12P Modules with integrated audio amplifier
... MA20-22-24 Blank and button modules
... MA61÷63 Front frames
... Refers to number of users (see table).
* Rain shelters are used instead of back boxes and hood
covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 27
.
Notes
- For the connection of name-plate lamps, read notes 6 and
7 of the installation instructions on page 26.
- For wires dimensioning refer to the installation recommen-
dations and table on page 26.
- For other types of push-button panels see pages 22 and 23
or the general catalogue.
P
R
O
J
E
C
T
Number of inter- Project Application dia-
communicating PT520 PT501 SR40/SR41 gram on page:
2 2 0 2 62 64
3 3 3 3 62 64
4 4 8 4 62 64
551556347
662466365
7 7 35 7 * 65
88488*
99639*
10 10 80 10 *
* upon request
Application diagram
When using MD100, MD200, RP200, UP12 and UP200 amplified
external door stations (RP and UP series for two-way systems only)
place this diagram on the diagram on page 47 and line it up with the
riser.
Warning.
- In the external door stations RP200 cut the jumper W1.
- In the external door stations UP do not connect the yellow wire and
insulate it.
- For alternate current wires refer to note 6 of the installation instruc-
tions on page 26.
Table for choosing intercoms and accessories for the required type of
installation
In intercoms cut the jumper W1 that connects
terminals 3 and 7 and apply:
- the electronic buzzer SR40 by connecting wires 7
and 9 to the intercom terminals 3 and 9,
- or use the buzzer SR41 by connecting terminals 3
of buzzer and intercom together and by connecting
the call wires to terminal 4 (instead of terminal
as shown in the diagrams).
In all intercoms connect one
of the two terminals of the sin-
gle button unit to terminal 7.
To Next Page
