72
(MT12 - Gb2004)
I
NTERCOMS *
V
IDEOINTERCOMS *
T
ELECOMMUNICATION

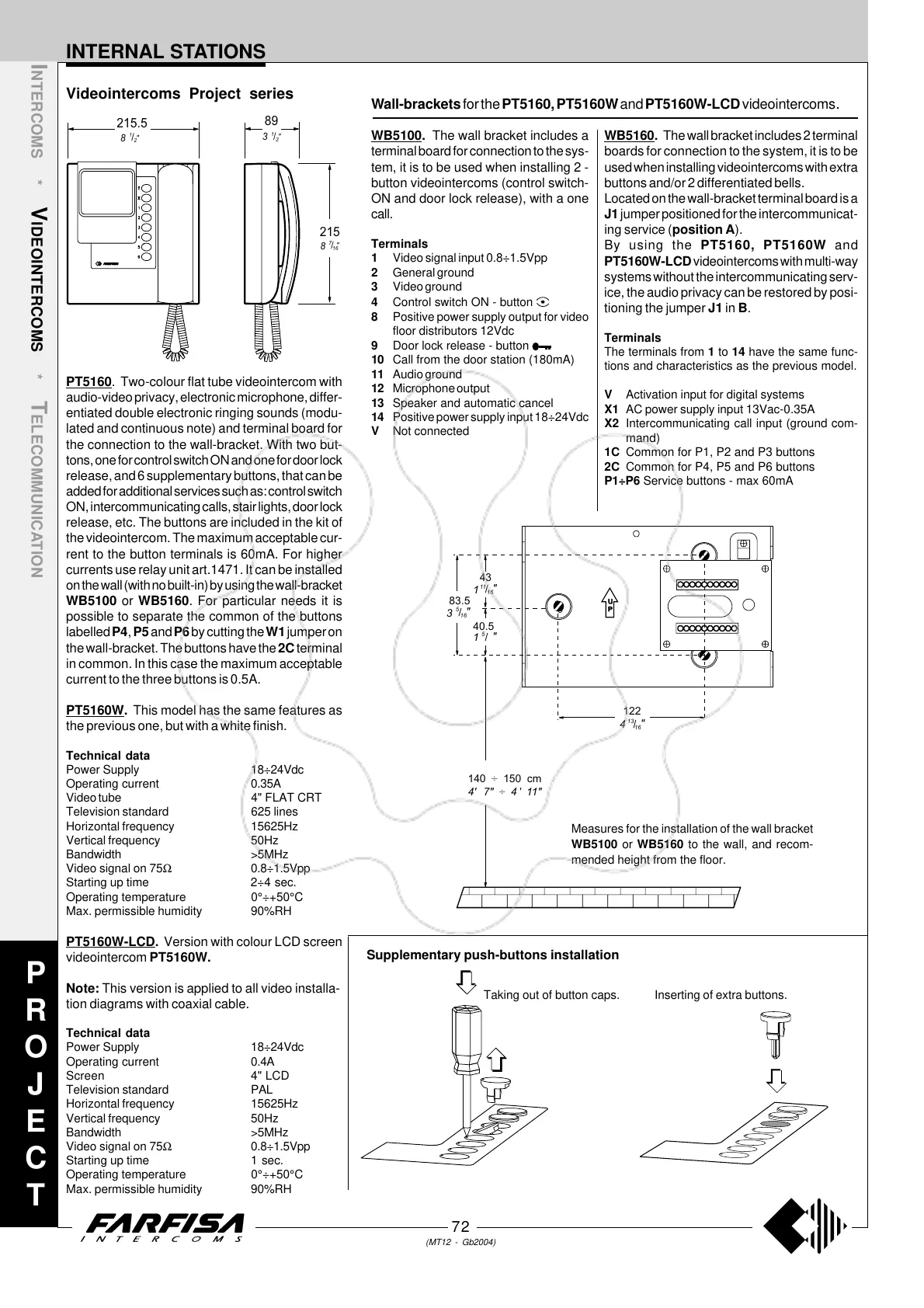

Videointercoms Project series
INTERNAL STATIONS
PT5160. Two-colour flat tube videointercom with
audio-video privacy, electronic microphone, differ-
entiated double electronic ringing sounds (modu-
lated and continuous note) and terminal board for
the connection to the wall-bracket. With two but-
tons, one for control switch ON and one for door lock
release, and 6 supplementary buttons, that can be
added for additional services such as: control switch
ON, intercommunicating calls, stair lights, door lock
release, etc. The buttons are included in the kit of
the videointercom. The maximum acceptable cur-
rent to the button terminals is 60mA. For higher
currents use relay unit art.1471. It can be installed
on the wall (with no built-in) by using the wall-bracket
WB5100 or WB5160. For particular needs it is
possible to separate the common of the buttons
labelled P4, P5 and P6 by cutting the W1 jumper on
the wall-bracket. The buttons have the 2C terminal
in common. In this case the maximum acceptable
current to the three buttons is 0.5A.
PT5160W. This model has the same features as
the previous one, but with a white finish.
Technical data
Power Supply 18÷24Vdc
Operating current 0.35A
Video tube 4" FLAT CRT
Television standard 625 lines
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Video signal on 75Ω 0.8÷1.5Vpp
Starting up time 2÷4 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
PT5160W-LCD. Version with colour LCD screen
videointercom PT5160W.
Note: This version is applied to all video installa-
tion diagrams with coaxial cable.
Technical data
Power Supply 18÷24Vdc
Operating current 0.4A
Screen 4" LCD
Television standard PAL
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Video signal on 75Ω 0.8÷1.5Vpp
Starting up time 1 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
Inserting of extra buttons.
Measures for the installation of the wall bracket
WB5100 or WB5160 to the wall, and recom-
mended height from the floor.
Taking out of button caps.
Supplementary push-buttons installation
WB5100. The wall bracket includes a
terminal board for connection to the sys-
tem, it is to be used when installing 2 -
button videointercoms (control switch-
ON and door lock release), with a one
call.
Terminals
1 Video signal input 0.8÷1.5Vpp
2 General ground
3 Video ground
4 Control switch ON - button
8 Positive power supply output for video
floor distributors 12Vdc
9 Door lock release - button
10 Call from the door station (180mA)
11 Audio ground
12 Microphone output
13 Speaker and automatic cancel
14 Positive power supply input 18÷24Vdc
V Not connected
WB5160. The wall bracket includes 2 terminal
boards for connection to the system, it is to be
used when installing videointercoms with extra
buttons and/or 2 differentiated bells.
Located on the wall-bracket terminal board is a
J1 jumper positioned for the intercommunicat-
ing service (position A).
By using the PT5160, PT5160W and
PT5160W-LCD videointercoms with multi-way
systems without the intercommunicating serv-
ice, the audio privacy can be restored by posi-
tioning the jumper J1 in B.
Terminals
The terminals from 1 to 14 have the same func-
tions and characteristics as the previous model.
V Activation input for digital systems
X1 AC power supply input 13Vac-0.35A
X2 Intercommunicating call input (ground com-
mand)
1C Common for P1, P2 and P3 buttons
2C Common for P4, P5 and P6 buttons
P1÷P6 Service buttons - max 60mA
Wall-brackets for the PT5160, PT5160W and PT5160W-LCD videointercoms.
P
R
O
J
E
C
T
215.5
8
"
2
/
1
89
3
"
2
/
1
215
8
"
16
/
7
U
P
140 150 cm÷
1
"
/
5
1
3
4
"
"
"
16
16
16
/
/
/
43
83.5
122
11
5
13
40.5
4" 7" 4" 11"÷
