6
(MT12 - Gb2004)
I
NTERCOMS *
V
IDEOINTERCOMS *
T
ELECOMMUNICATION

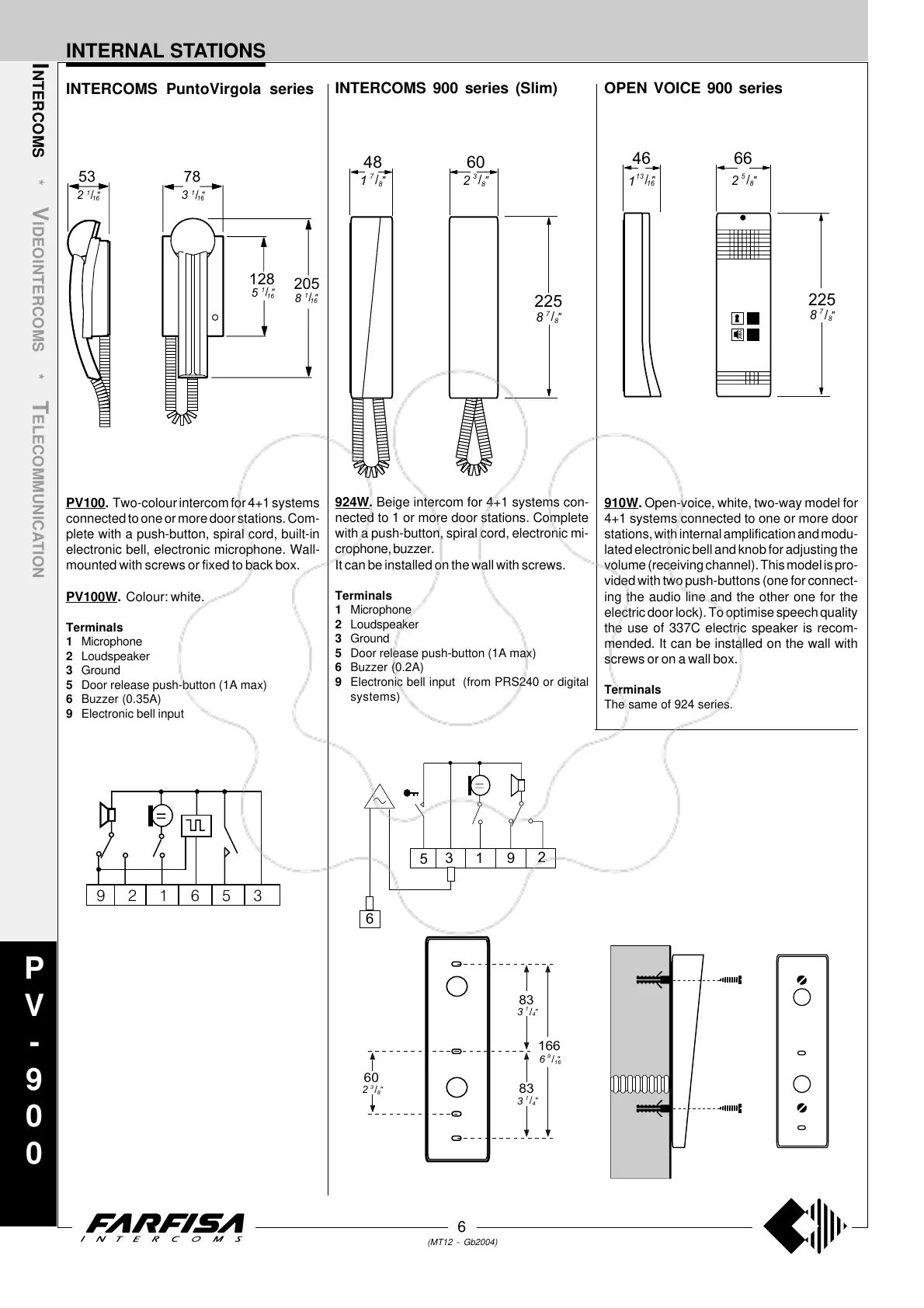

INTERNAL STATIONS
INTERCOMS PuntoVirgola series
2
"
8
/
3
60
1
"
8
/
7
48
8
"
8
/
7
225
1
"
16
/
13
46
2
"
8
/
5
66
8
"
8
/
7
225
924W. Beige intercom for 4+1 systems con-
nected to 1 or more door stations. Complete
with a push-button, spiral cord, electronic mi-
crophone, buzzer.
It can be installed on the wall with screws.
Terminals
1 Microphone
2 Loudspeaker
3 Ground
5 Door release push-button (1A max)
6 Buzzer (0.2A)
9 Electronic bell input (from PRS240 or digital
systems)
910W. Open-voice, white, two-way model for
4+1 systems connected to one or more door
stations, with internal amplification and modu-
lated electronic bell and knob for adjusting the
volume (receiving channel). This model is pro-
vided with two push-buttons (one for connect-
ing the audio line and the other one for the
electric door lock). To optimise speech quality
the use of 337C electric speaker is recom-
mended. It can be installed on the wall with
screws or on a wall box.
Terminals
The same of 924 series.
3
"
4
/
1
83
2
"
8
/
3
60
3
"
4
/
1
83
6
"
16
/
9
166
5
6
3
1
9
2
PV100. Two-colour intercom for 4+1 systems
connected to one or more door stations. Com-
plete with a push-button, spiral cord, built-in
electronic bell, electronic microphone. Wall-
mounted with screws or fixed to back box.
PV100W. Colour: white.
Terminals
1 Microphone
2 Loudspeaker
3 Ground
5 Door release push-button (1A max)
6 Buzzer (0.35A)
9 Electronic bell input
921653
205
53
128
5
"
16
/
1
32
""
1616
//
11
8
"
16
/
1
78
INTERCOMS 900 series (Slim) OPEN VOICE 900 series
P
V
-
9
0
0
