58
(MT12 - Gb2004)
Si 161L/1
I
NTERCOMS *
V
IDEOINTERCOMS *
T
ELECOMMUNICATION

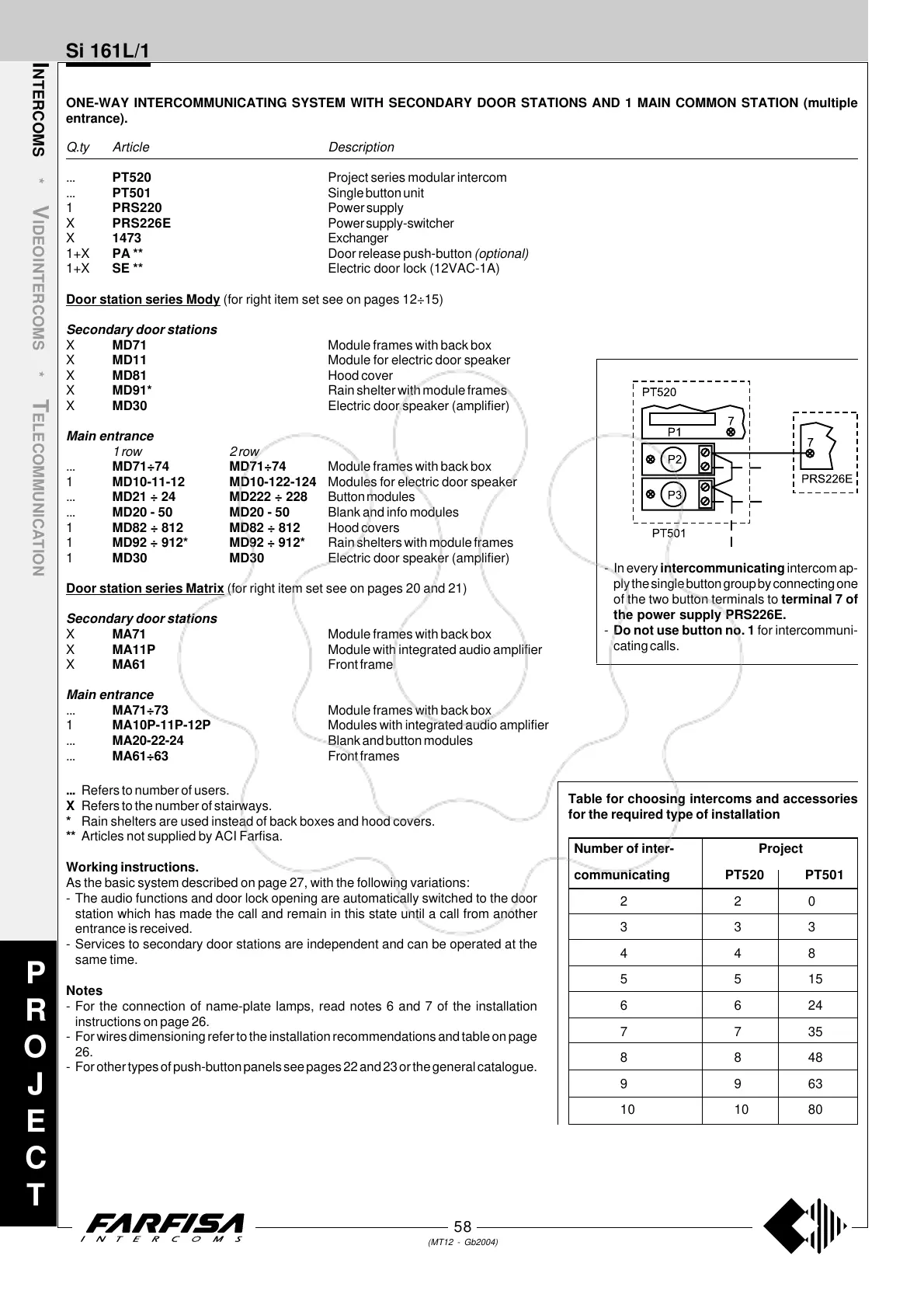

ONE-WAY INTERCOMMUNICATING SYSTEM WITH SECONDARY DOOR STATIONS AND 1 MAIN COMMON STATION (multiple
entrance).
Q.ty Article Description
... PT520 Project series modular intercom
... PT501 Single button unit
1 PRS220 Power supply
X PRS226E Power supply-switcher
X 1473 Exchanger
1+X PA ** Door release push-button (optional)
1+X SE ** Electric door lock (12VAC-1A)
Door station series Mody (for right item set see on pages 12÷15)
Secondary door stations
X MD71 Module frames with back box
X MD11 Module for electric door speaker
X MD81 Hood cover
X MD91* Rain shelter with module frames
X MD30 Electric door speaker (amplifier)
Main entrance
1 row 2 row
... MD71÷74 MD71÷74 Module frames with back box
1 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and info modules
1 MD82 ÷ 812 MD82 ÷ 812 Hood covers
1 MD92 ÷ 912* MD92 ÷ 912* Rain shelters with module frames
1 MD30 MD30 Electric door speaker (amplifier)
Door station series Matrix (for right item set see on pages 20 and 21)
Secondary door stations
X MA71 Module frames with back box
X MA11P Module with integrated audio amplifier
X MA61 Front frame
Main entrance
... MA71÷73 Module frames with back box
1 MA10P-11P-12P Modules with integrated audio amplifier
... MA20-22-24 Blank and button modules
... MA61÷63 Front frames
P
R
O
J
E
C
T
- In every intercommunicating intercom ap-
ply the single button group by connecting one
of the two button terminals to terminal 7 of
the power supply PRS226E.
- Do not use button no. 1 for intercommuni-
cating calls.
... Refers to number of users.
X Refers to the number of stairways.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Working instructions.
As the basic system described on page 27, with the following variations:
- The audio functions and door lock opening are automatically switched to the door
station which has made the call and remain in this state until a call from another
entrance is received.
- Services to secondary door stations are independent and can be operated at the
same time.
Notes
- For the connection of name-plate lamps, read notes 6 and 7 of the installation
instructions on page 26.
- For wires dimensioning refer to the installation recommendations and table on page
26.
- For other types of push-button panels see pages 22 and 23 or the general catalogue.
Number of inter- Project
communicating PT520 PT501
220
333
448
5515
6624
7735
8848
9963
10 10 80
Table for choosing intercoms and accessories
for the required type of installation
