150
(MT12 - Gb2004)
INTERNAL STATIONS
I
NTERCOMS *
VIDEO INTERCOMS *
TELECOMMUNICATION
S
T
U
D
I
O
Connect the telephone cable sup-
plied with the product to the plug on
the back of the telephone.

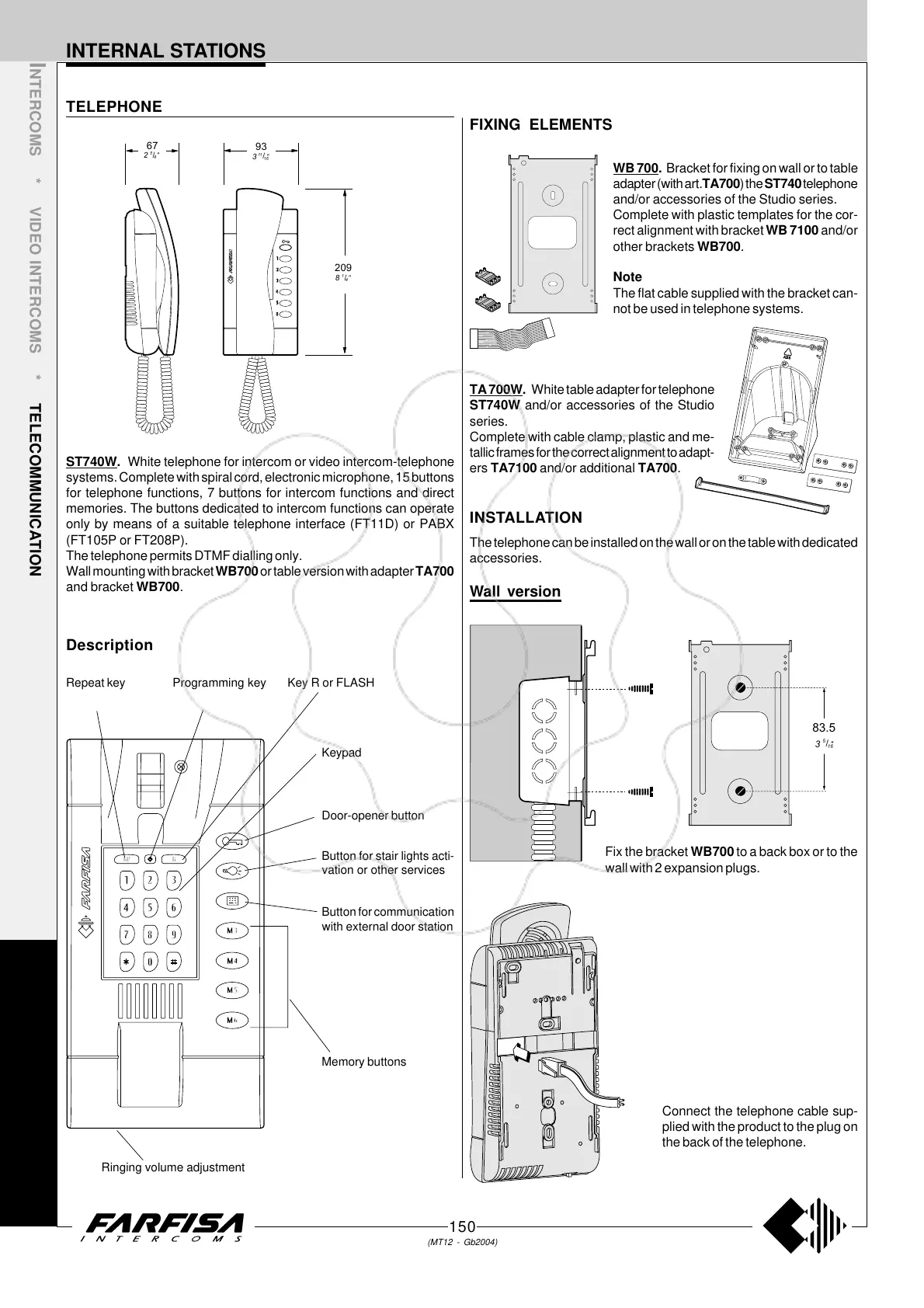

TELEPHONE
ST740W. White telephone for intercom or video intercom-telephone
systems. Complete with spiral cord, electronic microphone, 15 buttons
for telephone functions, 7 buttons for intercom functions and direct
memories. The buttons dedicated to intercom functions can operate
only by means of a suitable telephone interface (FT11D) or PABX
(FT105P or FT208P).
The telephone permits DTMF dialling only.
Wall mounting with bracket WB700 or table version with adapter TA700
and bracket WB700.
2
"
8
/
5
67
3
"
16
/
11
93
8
"
4
/
1
209
Door-opener button
Button for stair lights acti-
vation or other services
Button for communication
with external door station
Memory buttons
Keypad
Key R or FLASHProgramming keyRepeat key
Ringing volume adjustment
Description
WB 700. Bracket for fixing on wall or to table
adapter (with art.TA700) the ST740 telephone
and/or accessories of the Studio series.
Complete with plastic templates for the cor-
rect alignment with bracket WB 7100 and/or
other brackets WB700.
Note
The flat cable supplied with the bracket can-
not be used in telephone systems.
FIXING ELEMENTS
3
"
16
/
5
83.5
Wall version
INSTALLATION
The telephone can be installed on the wall or on the table with dedicated
accessories.
Fix the bracket WB700 to a back box or to the
wall with 2 expansion plugs.
TA 700W. White table adapter for telephone
ST740W and/or accessories of the Studio
series.
Complete with cable clamp, plastic and me-
tallic frames for the correct alignment to adapt-
ers TA7100 and/or additional TA700.
