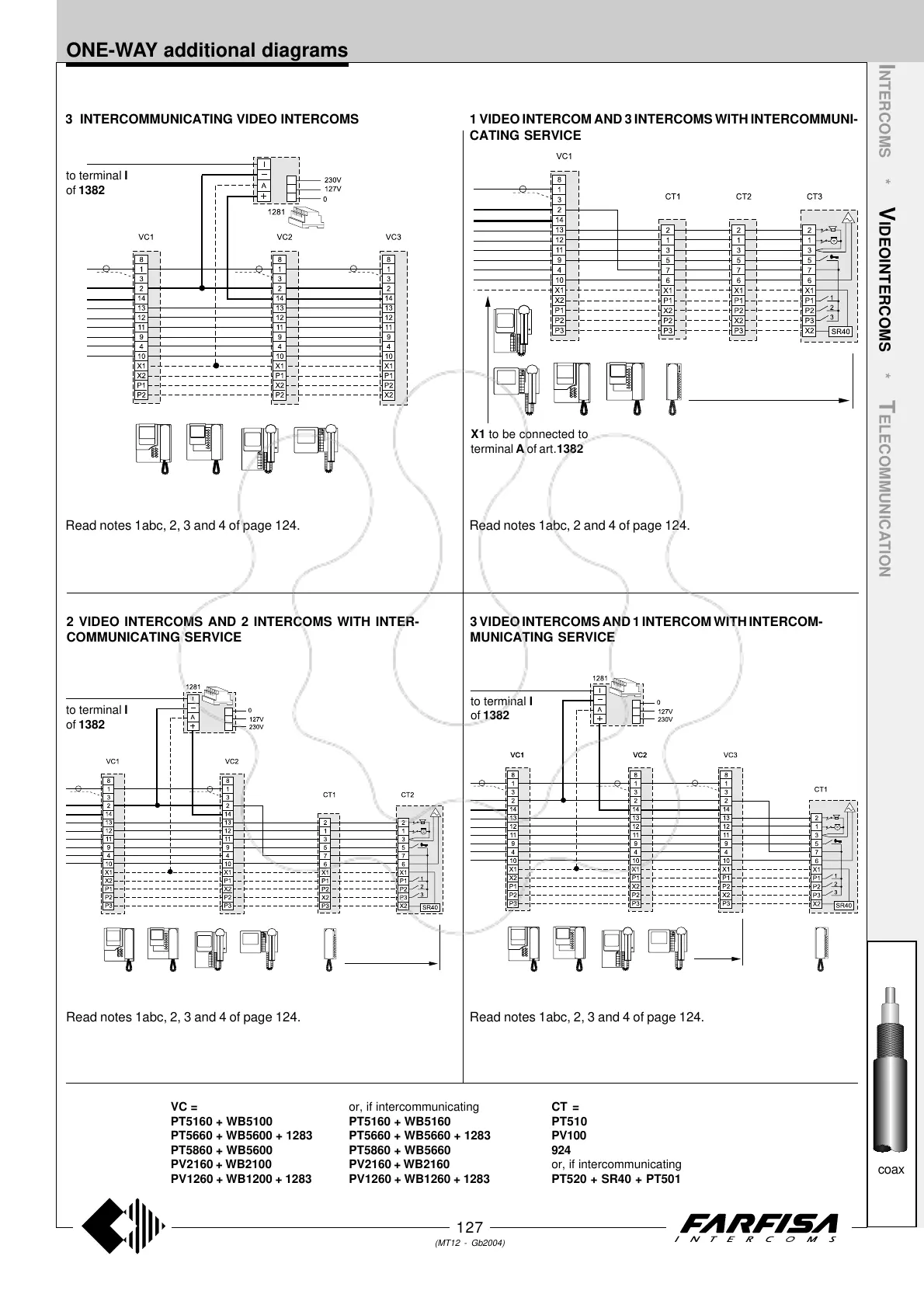

ONE-WAY additional diagrams
2 VIDEO INTERCOMS AND 2 INTERCOMS WITH INTER-
COMMUNICATING SERVICE
3 INTERCOMMUNICATING VIDEO INTERCOMS
1 VIDEO INTERCOM AND 3 INTERCOMS WITH INTERCOMMUNI-
CATING SERVICE
3 VIDEO INTERCOMS AND 1 INTERCOM WITH INTERCOM-
MUNICATING SERVICE
Read notes 1abc, 2, 3 and 4 of page 124. Read notes 1abc, 2, 3 and 4 of page 124.
Read notes 1abc, 2, 3 and 4 of page 124. Read notes 1abc, 2 and 4 of page 124.
to terminal I
of 1382
to terminal I
of 1382
to terminal I
of 1382
X1 to be connected to
terminal A of art.1382
VC =
PT5160 + WB5100
PT5660 + WB5600 + 1283
PT5860 + WB5600
PV2160 + WB2100
PV1260 + WB1200 + 1283
CT =
PT510
PV100
924
or, if intercommunicating
PT520 + SR40 + PT501
or, if intercommunicating
PT5160 + WB5160
PT5660 + WB5660 + 1283
PT5860 + WB5660
PV2160 + WB2160
PV1260 + WB1260 + 1283
