11
(MT12 - Gb2004)

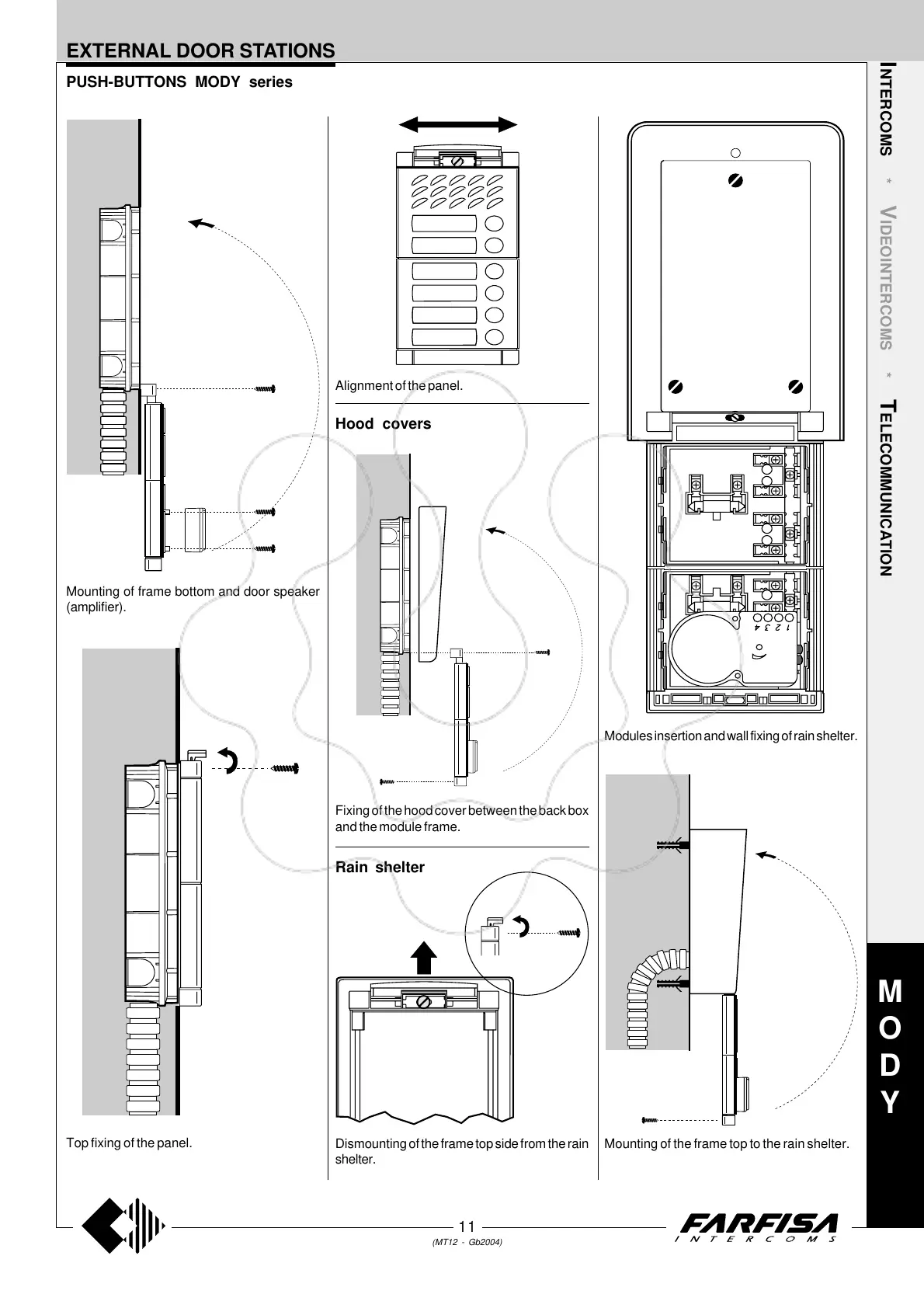

PUSH-BUTTONS MODY series
Mounting of frame bottom and door speaker
(amplifier).
Top fixing of the panel.
Alignment of the panel.
Hood covers
Dismounting of the frame top side from the rain
shelter.
Fixing of the hood cover between the back box
and the module frame.
Rain shelter
Modules insertion and wall fixing of rain shelter.
Mounting of the frame top to the rain shelter.
