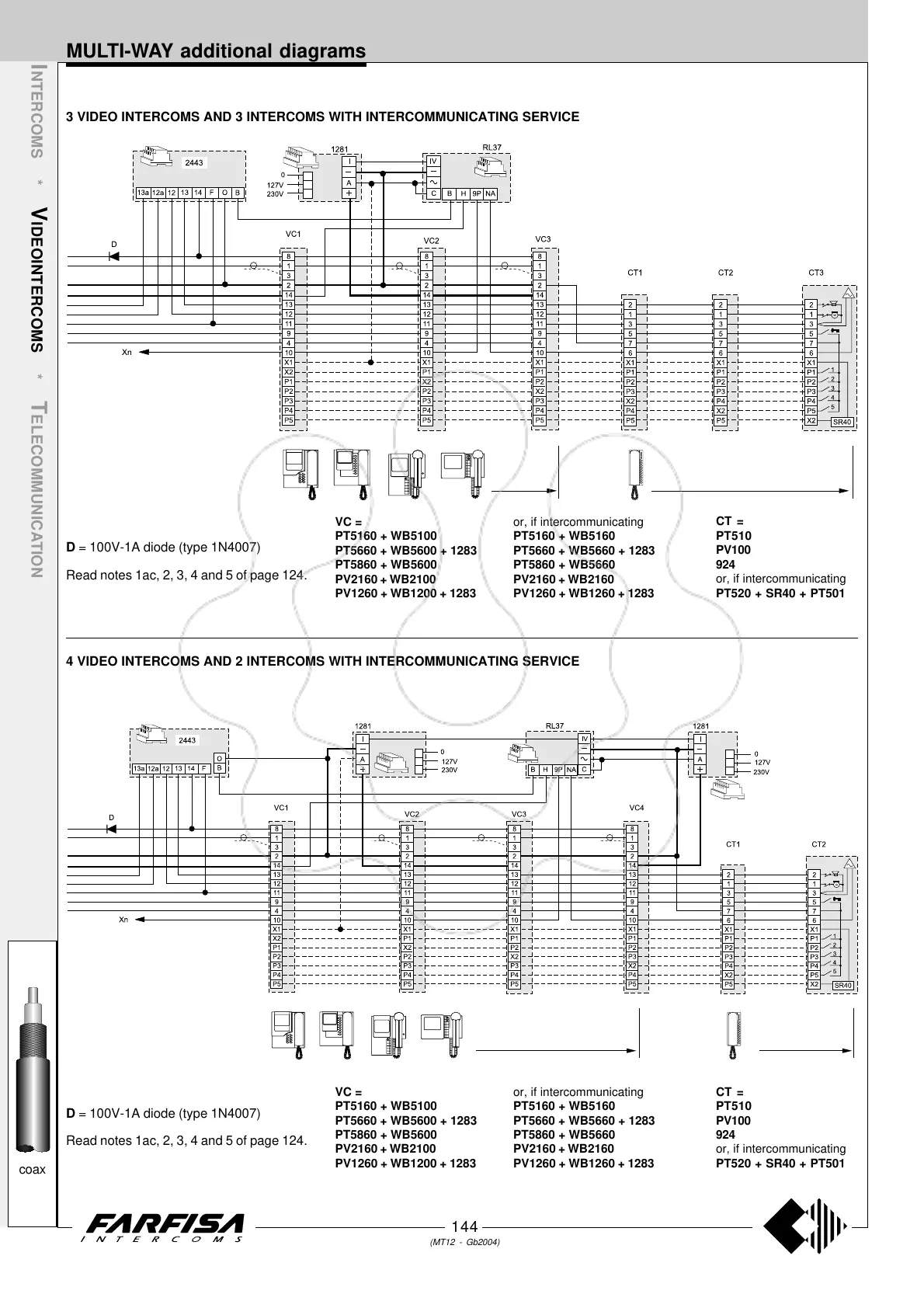

MULTI-WAY additional diagrams
4 VIDEO INTERCOMS AND 2 INTERCOMS WITH INTERCOMMUNICATING SERVICE
3 VIDEO INTERCOMS AND 3 INTERCOMS WITH INTERCOMMUNICATING SERVICE
Read notes 1ac, 2, 3, 4 and 5 of page 124.
D = 100V-1A diode (type 1N4007)
Read notes 1ac, 2, 3, 4 and 5 of page 124.
D = 100V-1A diode (type 1N4007)
VC =
PT5160 + WB5100
PT5660 + WB5600 + 1283
PT5860 + WB5600
PV2160 + WB2100
PV1260 + WB1200 + 1283
CT =
PT510
PV100
924
or, if intercommunicating
PT520 + SR40 + PT501
or, if intercommunicating
PT5160 + WB5160
PT5660 + WB5660 + 1283
PT5860 + WB5660
PV2160 + WB2160
PV1260 + WB1260 + 1283
VC =
PT5160 + WB5100
PT5660 + WB5600 + 1283
PT5860 + WB5600
PV2160 + WB2100
PV1260 + WB1200 + 1283
CT =
PT510
PV100
924
or, if intercommunicating
PT520 + SR40 + PT501
or, if intercommunicating
PT5160 + WB5160
PT5660 + WB5660 + 1283
PT5860 + WB5660
PV2160 + WB2160
PV1260 + WB1260 + 1283
