189
(MT12 - Gb2004)
I
NTERCOMS *
VIDEO INTERCOMS *
TELECOMMUNICATION

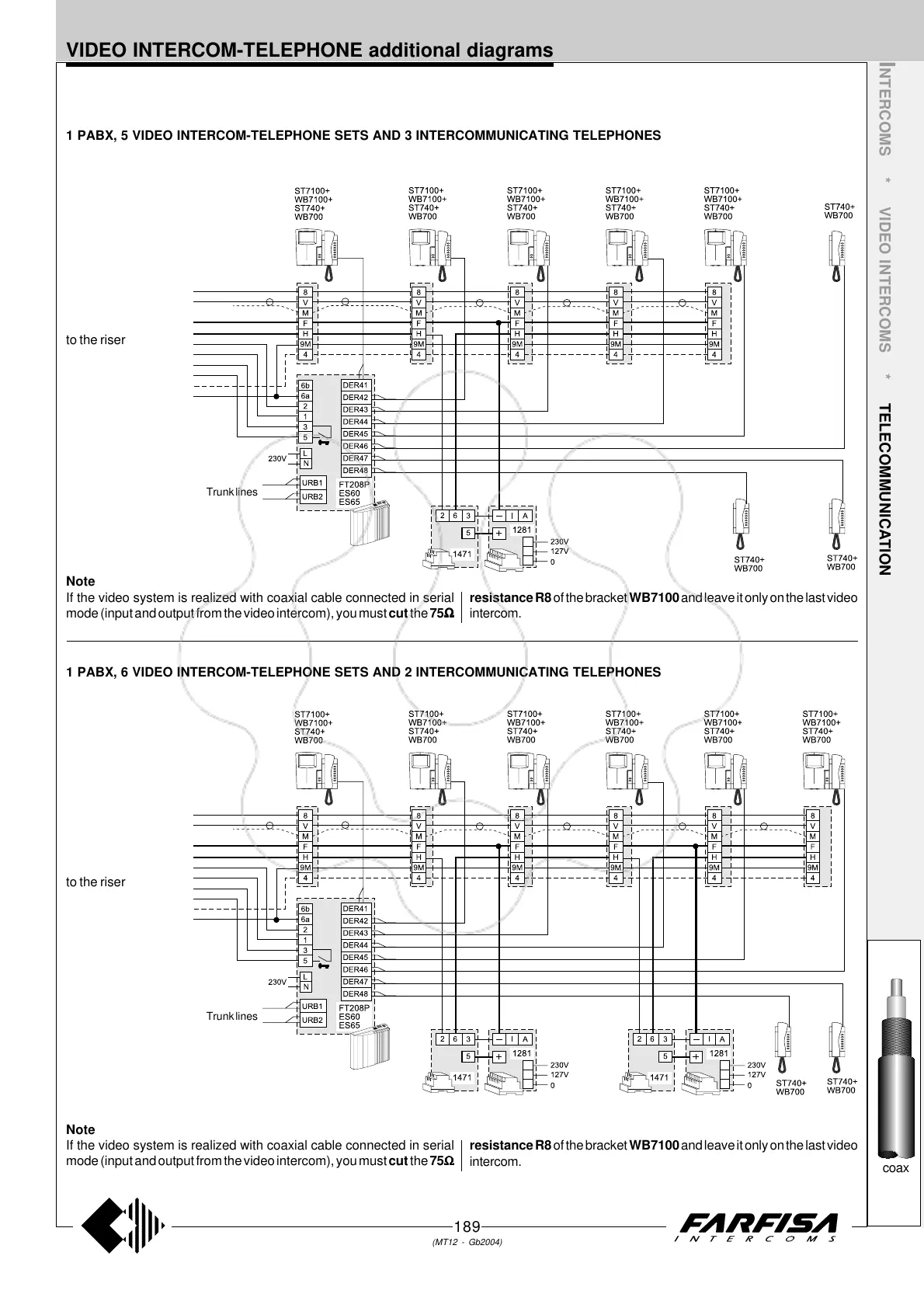

VIDEO INTERCOM-TELEPHONE additional diagrams
1 PABX, 6 VIDEO INTERCOM-TELEPHONE SETS AND 2 INTERCOMMUNICATING TELEPHONES
1 PABX, 5 VIDEO INTERCOM-TELEPHONE SETS AND 3 INTERCOMMUNICATING TELEPHONES
coax
Note
If the video system is realized with coaxial cable connected in serial
mode (input and output from the video intercom), you must cut the 75
ΩΩ
ΩΩ
Ω
resistance R8 of the bracket WB7100 and leave it only on the last video
intercom.
Note
If the video system is realized with coaxial cable connected in serial
mode (input and output from the video intercom), you must cut the 75
ΩΩ
ΩΩ
Ω
resistance R8 of the bracket WB7100 and leave it only on the last video
intercom.
to the riser
to the riser
Trunk lines
Trunk lines
To Next Page
