EXTERNAL DOOR STATIONS
I
NTERCOMS *
V
IDEOINTERCOMS *
T
ELECOMMUNICATION
M
A
T
R
I
X
PUSH-BUTTONS Matrix series

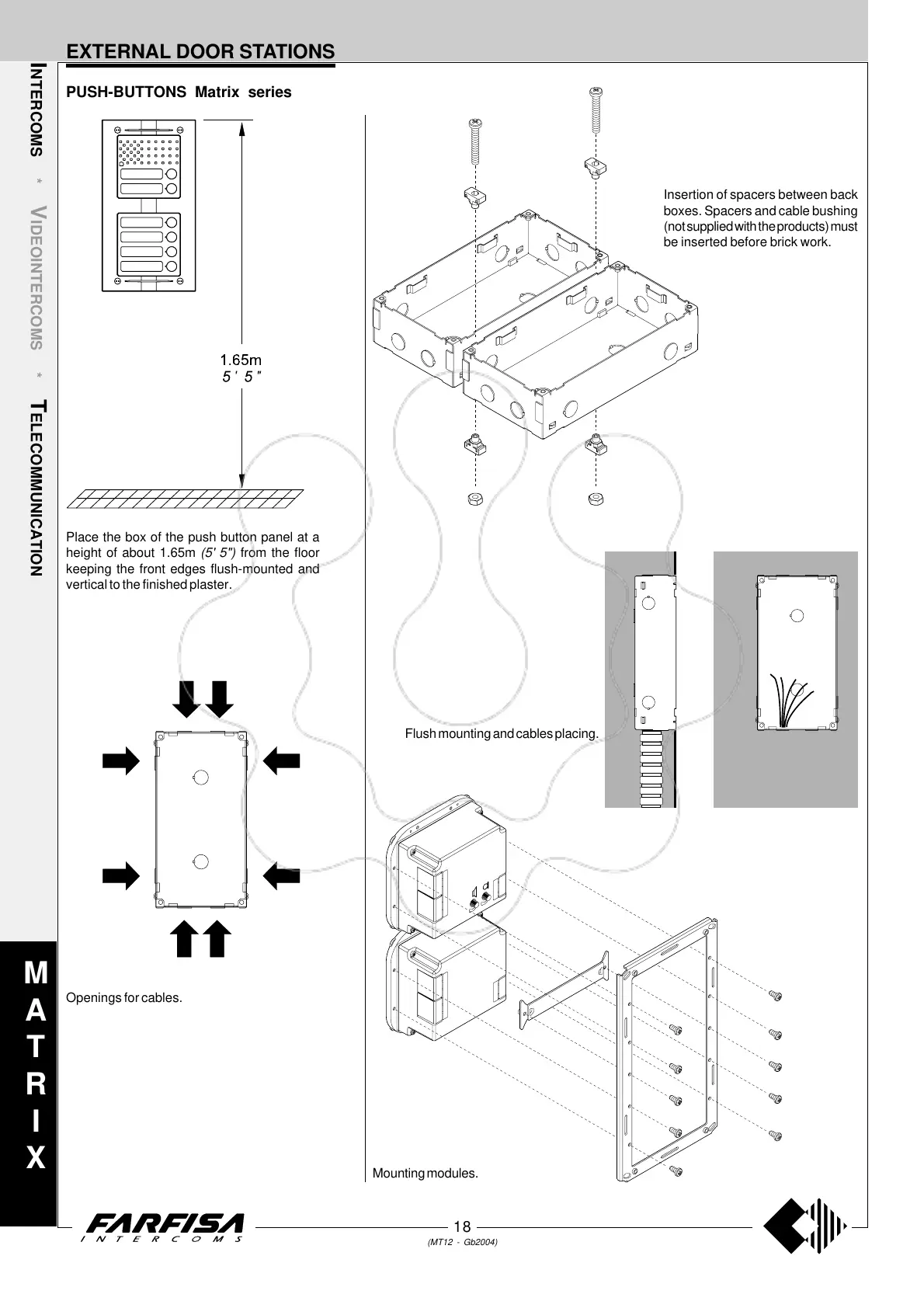

Place the box of the push button panel at a
height of about 1.65m (5' 5") from the floor
keeping the front edges flush-mounted and
vertical to the finished plaster.
Insertion of spacers between back
boxes. Spacers and cable bushing
(not supplied with the products) must
be inserted before brick work.
Openings for cables.
Flush mounting and cables placing.
Mounting modules.
