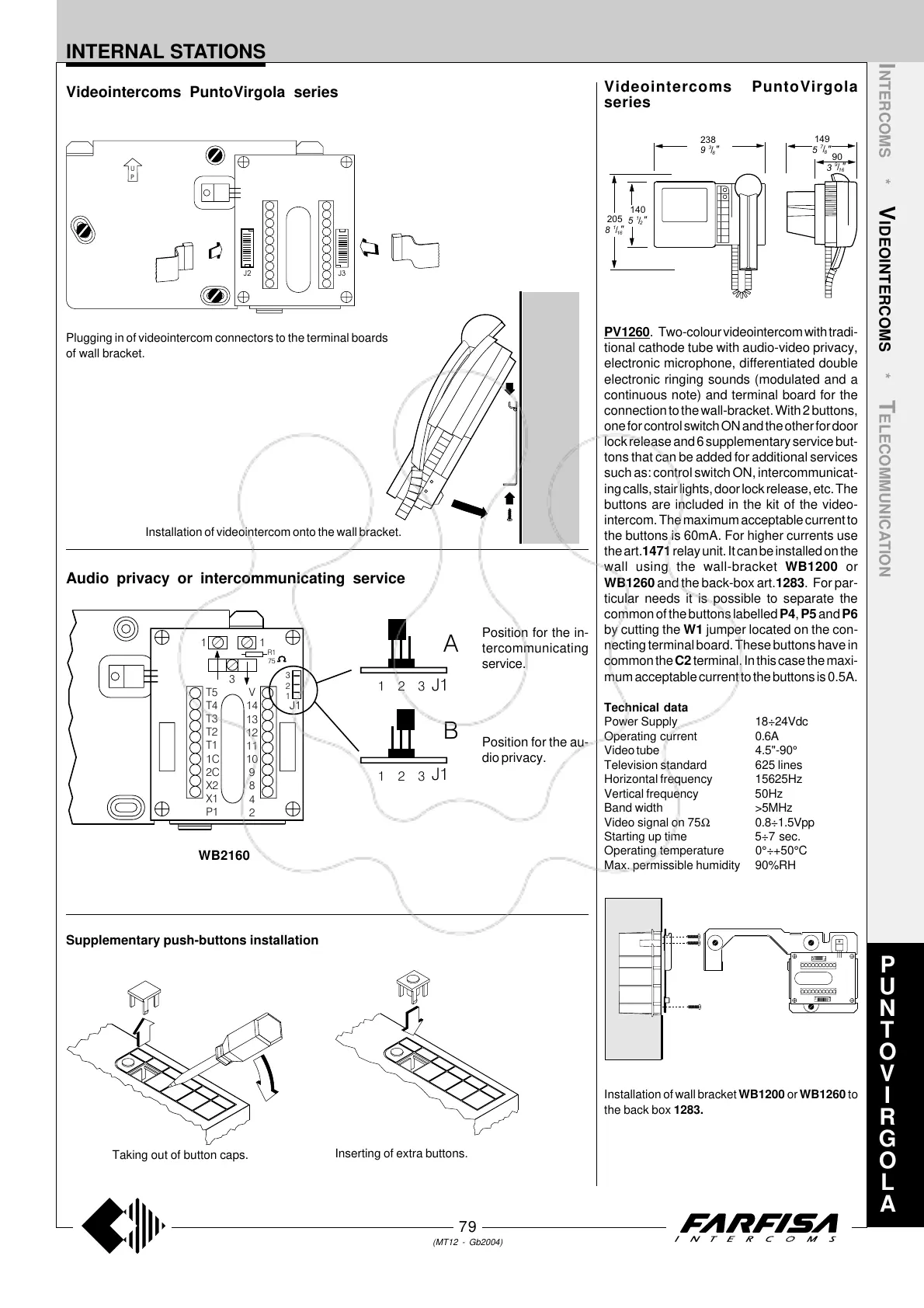

Videointercoms PuntoVirgola series
Installation of videointercom onto the wall bracket.
U
P
J2 J3
Plugging in of videointercom connectors to the terminal boards
of wall bracket.
INTERNAL STATIONS
T5
T4
T3
T2
T1
1C
2C
X2
X1
P1
V
14
13
12
11
10
9
8
4
2
3
11
R1
75
J1
3
2
1
J1
J1
123
123
A
B
WB2160
Position for the in-
tercommunicating
service.
Position for the au-
dio privacy.
Audio privacy or intercommunicating service
Supplementary push-buttons installation
Taking out of button caps.
Inserting of extra buttons.
P
U
N
T
O
V
I
R
G
O
L
A
PV1260. Two-colour videointercom with tradi-
tional cathode tube with audio-video privacy,
electronic microphone, differentiated double
electronic ringing sounds (modulated and a
continuous note) and terminal board for the
connection to the wall-bracket. With 2 buttons,
one for control switch ON and the other for door
lock release and 6 supplementary service but-
tons that can be added for additional services
such as: control switch ON, intercommunicat-
ing calls, stair lights, door lock release, etc. The
buttons are included in the kit of the video-
intercom. The maximum acceptable current to
the buttons is 60mA. For higher currents use
the art.1471 relay unit. It can be installed on the
wall using the wall-bracket WB1200 or
WB1260 and the back-box art.1283. For par-
ticular needs it is possible to separate the
common of the buttons labelled P4, P5 and P6
by cutting the W1 jumper located on the con-
necting terminal board. These buttons have in
common the C2 terminal. In this case the maxi-
mum acceptable current to the buttons is 0.5A.
Technical data
Power Supply 18÷24Vdc
Operating current 0.6A
Video tube 4.5"-90°
Television standard 625 lines
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Band width >5MHz
Video signal on 75Ω 0.8÷1.5Vpp
Starting up time 5÷7 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
Videointercoms PuntoVirgola
series
Installation of wall bracket WB1200 or WB1260 to
the back box 1283.
5
"
8
/
7
149
8
"
16
/
1
205
3
"
16
/
9
90
9
"
8
/
238
3
5
"
2
/
1
140
