ST100 Series Flow Meter TROUBLESHOOTING
Fluid Components International LLC 45
INTEGRAL ELECTRONICS
FES-200 CABLE
THUMBWHEEL
SWITCHES
DISCONNECT SENSOR
CONNECTOR AND PLUG
IN FES-200 CABLE
TP1 HEATER
CURRENT
C01252-1-1

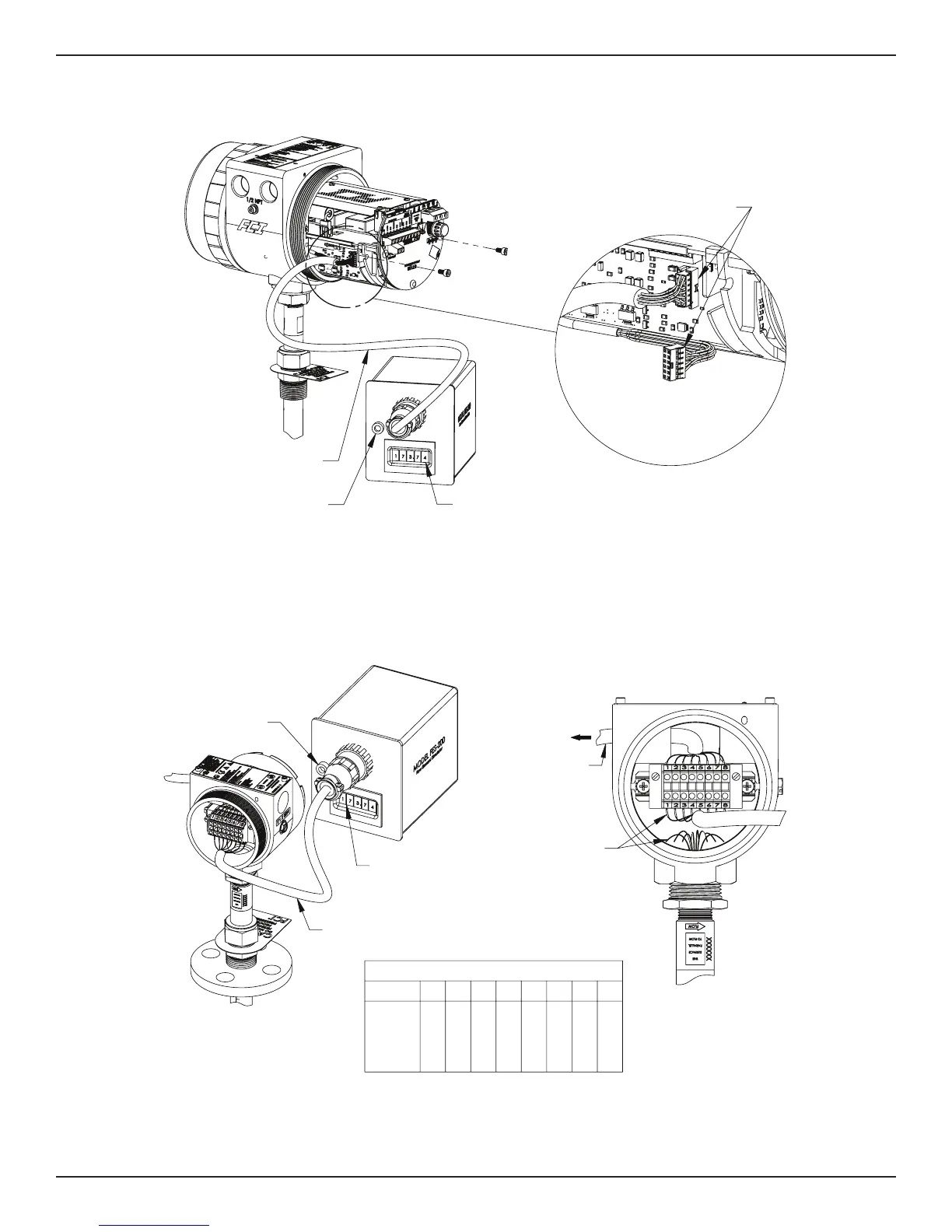

Figure 22 - Integral Configuration
LOCAL FLOW ELEMENT WIRING
PIN
1 2 3 4 5 6 7 8
WIRING
LABEL
1 GND
2 GND SEN
3 REF SEN
4 ACT SEN
5 REF EXC
6 ACT EXC
7 HTR #1
8 HTR RTN
REMOTE ELECTRONICS
FES-200 CABLE
DISCONNECT SENSOR
WIRES AND PLUG
IN FES-200 CABLE
TP1 HEATER
CURRENT
THUMBWHEEL
SWITCHES
REMOTE CABLE
TO INSTRUMENT
C01253-1-1
Figure 23 - Remote Configuration
FES-200 Connected at Flow Element
To Next Page
