XT Series Extrication Devices
RED CHEST RESTRAINT
In order to apply the red chest restraint:
1. Insert the slot of the restraint with the male end into hole
no. 13 on the extrication device, with the stitching facing the
operator, making sure that the red handle remains outside
the board.
2. Insert the red buckle into the newly positioned restraint
slot.
3. Pull the restraint to tighten the loop knot, ensuring that
the red handle always remains on the outside of the board.
4. Insert the slot of the restraint with the female end into
hole no. 7, with the stitching facing the operator, making
sure that the red handle remains outside the board.
5. Insert the red buckle into the newly positioned restraint
slot.
6. Pull the restraint to tighten the loop knot, ensuring that the
red handle always remains on the outside, at the rear of the
board, and close the buckle.

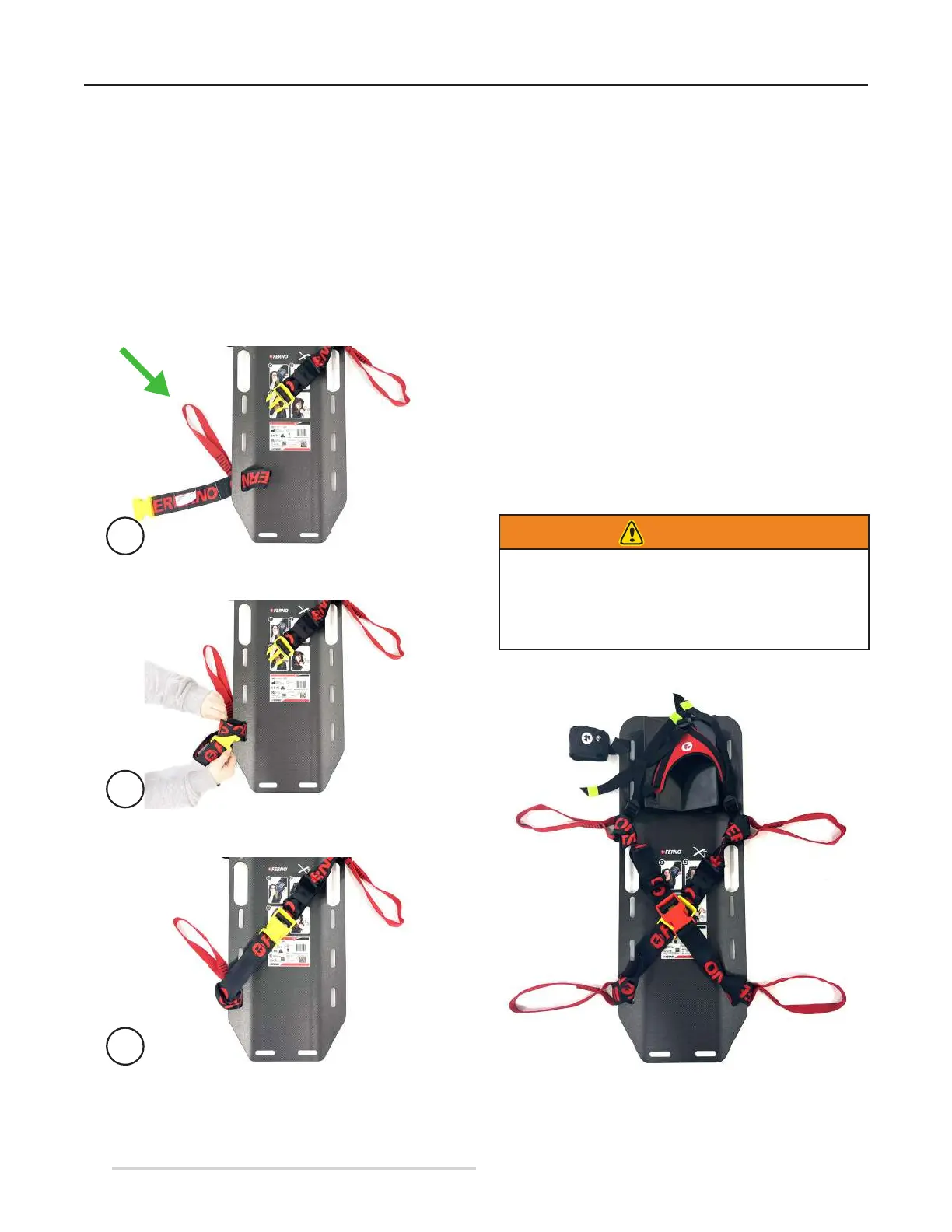

Figure 7 - Crossed conguration of chest restraints
4. Insert the slot of the restraint with the female end into
hole no. 10, with the stitching facing the operator, making
sure that the red handle remains outside the board (Figure
6A).
5. Insert the yellow buckle into the newly positioned
restraint slot (Figure 6B).
6. Pull the restraint to tighten the loop knot, ensuring that
the red handle always remains on the outside of the board
and close the buckle (Figure 6C).
6A
Figure 6 - Yellow restraint application
(end with female buckle)
WARNING
It is important that during the assembly of the
chest restraints, the red handle always remains
outside and at the rear of the board, to ensure that
the restraint remains securely on the board during
patient handling operations.
6B
6C
