Fitting (see also following diagram)
PLEASE NOTE
•
Always place the subsequently ordered
modules after the last module before
the end plate.
•
Do not fit more than 12 electronic modules.
Please note also the addressing limits of
your field bus protocol.
Fit the modules as follows:
• Fit a new seal on the right-hand contact
surface facing the node.
• Fit the module as shown below.
Seal
Fastening screws
max. 1 Nm

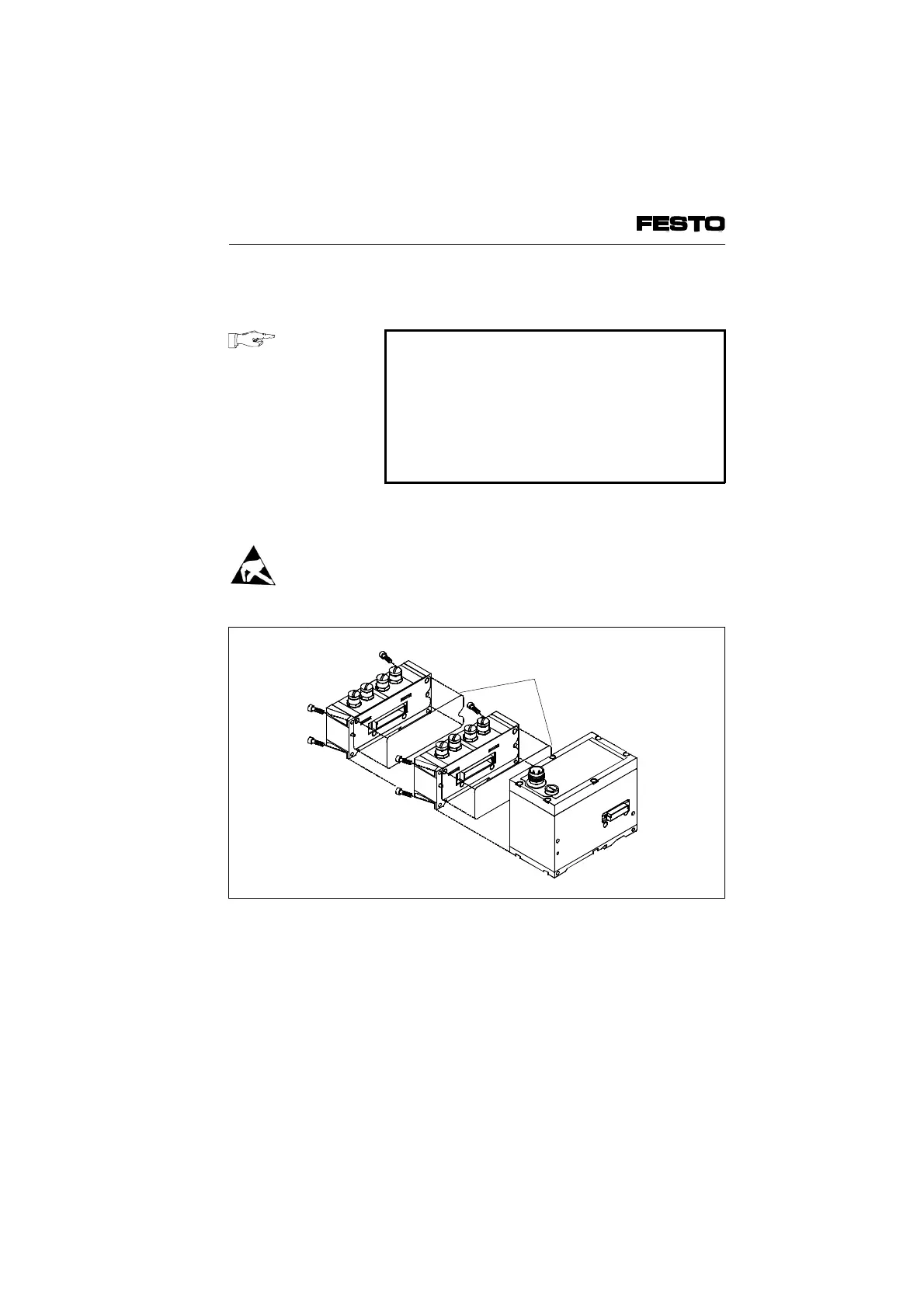

Fig. 2/1: Fitting electronic I/O modules
VIFB6 - 03/05 2. Fitting
9809c 2-5
