2.2 TYPE 03: FITTING THE VALVE TERMINAL
Wall fitting (type 03)
WARNING
With long terminals use additional support
brackets approximately every 200 mm.
You thereby avoid:
•
overloading the fastening eyes on the end
plates
•
the terminal sagging
•
natural resonances
Proceed as follows:
• Calculate the weight of your terminal (weigh
or estimate). General rule:
• Make sure that the fastening surface can
carry this weight.
• Fasten the terminal with four M6 screws as
shown below (fitting position as desired). Use
spacers if necessary.
MIDI MAXI
per pneumatic module 800 g 1200 g
per node 1000 g 1000 g
per electronic module 400 g 400 g
7.6 mm
M6

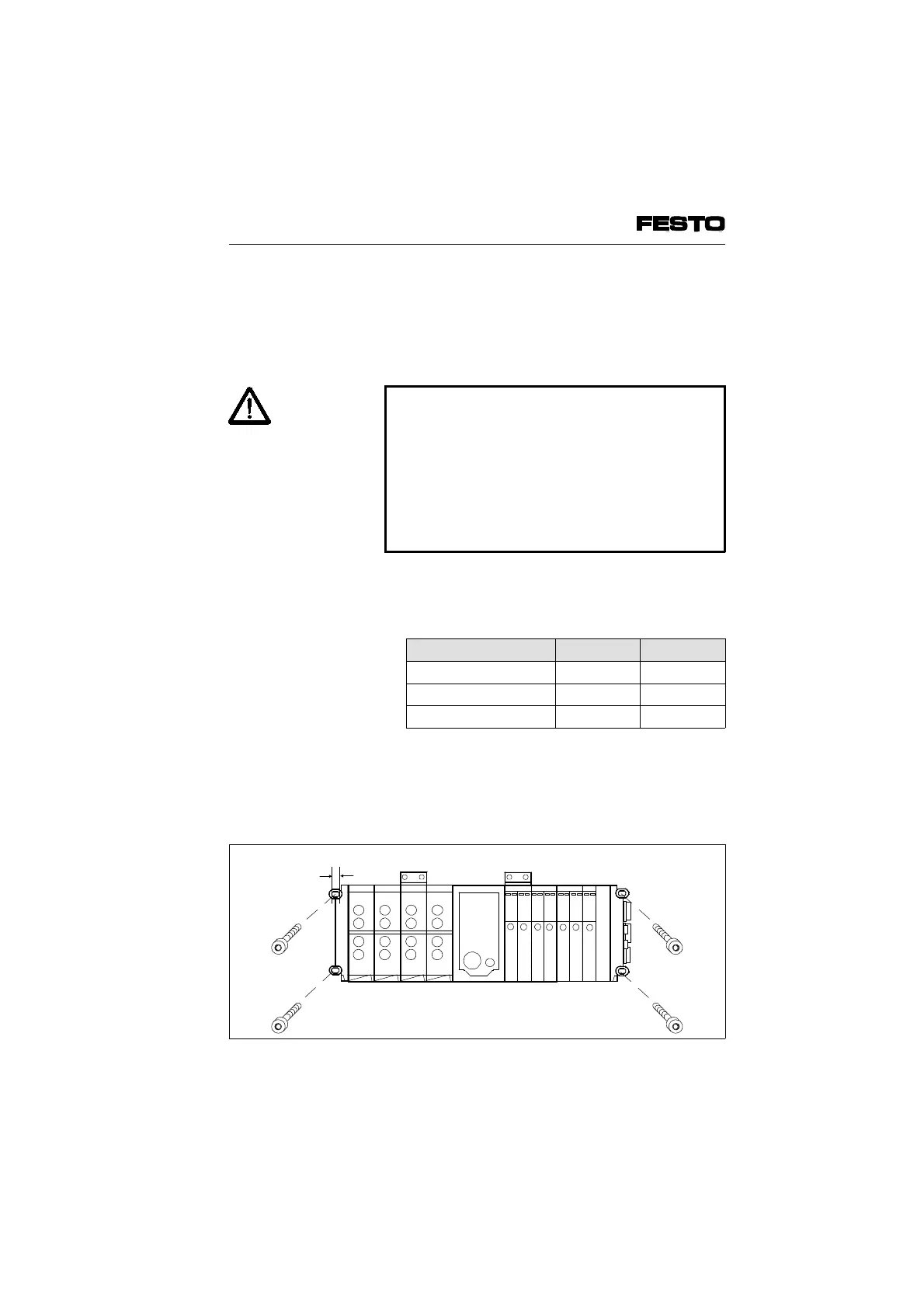

Fig. 2/4: Fitting the valve terminal typ 03 on the wall
VIFB6 - 03/05 2. Fitting
9809c 2-9
