Hat rail clamping unit (type 03)
If the terminal is to fitted onto a hat rail (support
rail as per EN 50022), you will require the hat
rail clamping unit. This unit must be fastened to
the rear of the end plates as shown in the
following diagram.
Before fitting ensure that:
• the glueing surfaces are clean
(clean with spirit)
• the flat-head screws are tightened (6)
After fitting ensure that:
• the levers are secured with the locking screw
(7).

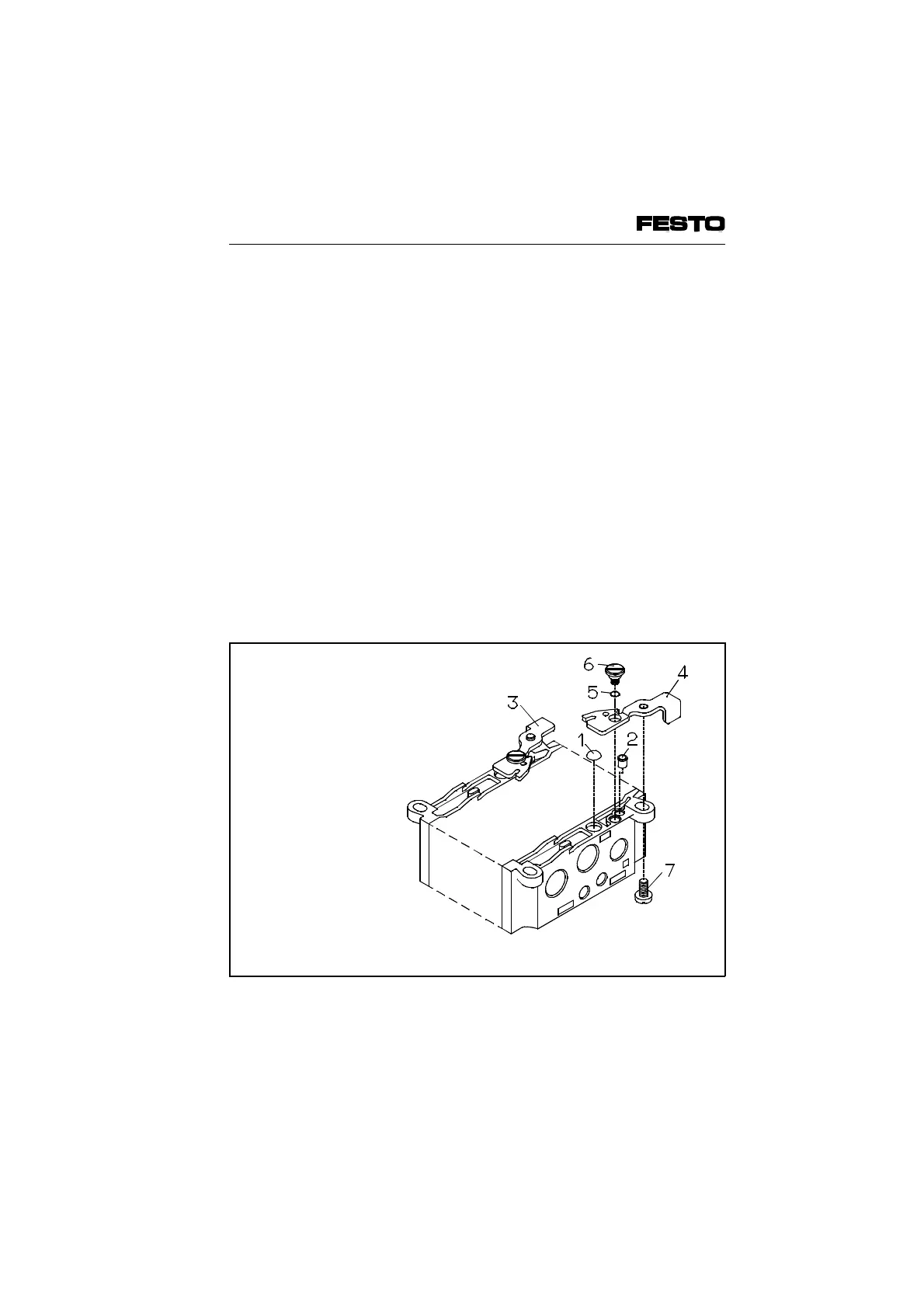

1 Rubber foot, self-adhesive
2 Clamping elements
3 Left-hand lever *)
4 Right-hand lever *)
5 O ring
6 Flat head screw
7 Retaining screw
*) Levers differ in length for MIDI or MAXI
Fig. 2/3: Fitting the hat rail clamping unit
VIFB6 - 03/05 2. Fitting
2-8
