Place the insert (7) in the insert ring (4)
and lock with the stop ring (6). Place the
complete unit in the angled body (10).
(Please note: 4 code possibilities).
Secure with threaded pin (2).
Place the insert ring (4) and
knurled nut (5) onto the
assembly key.

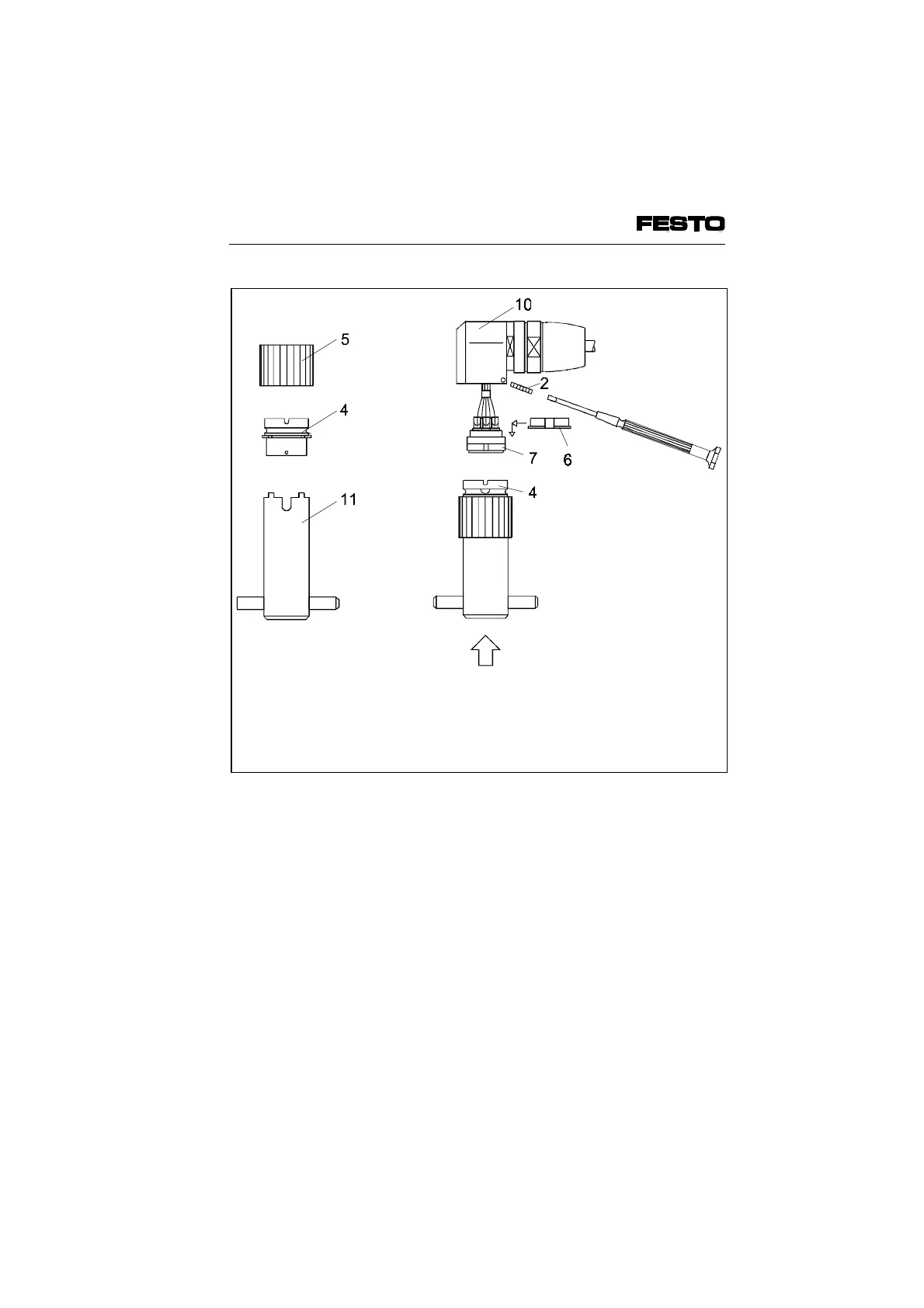

Fig. 3/4c: Fitting the plugs
VIFB6 - 03/05 3. Installation
