Non-floating connection
•
Lift up the screening braiding 90°.
Push the screening sleeve (3)
over the foil and the cotton
braiding, but under the screening
braiding. Cut the screening
braiding off flush with the outer
diameter of the screening sleeve.
Push the adapter (1), seal element
(3b) and pressure ring (3a) onto the
cable.
Cut off the foil, filler and inner
insulation. Insulate, twist and tin-plate
3.5 mm of the strands. If necessary,
use rubber (9) sleeves.
Cut off 65 mm of the cable sheath.
Pull the cable through the angled part
(10) as far as possible and screw firmly
to stop with adapter (1).
Solder strands/contacts
Floating connection
•
Twist the screening braiding of the
incoming INTERBUS and insulate it
(8). Then solder to pin 6.

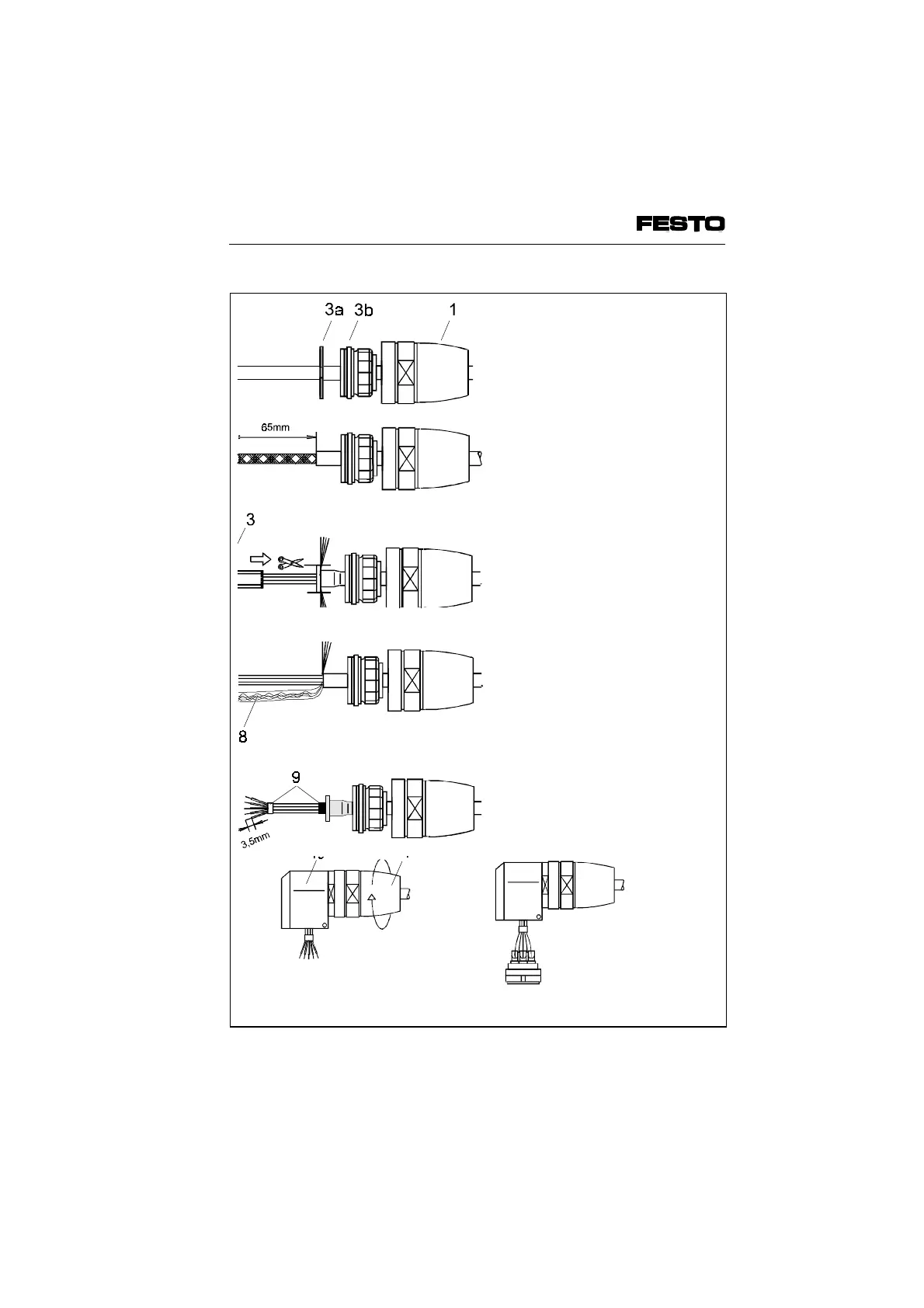

Fig. 3/4b: Connecting the cables
VIFB6 - 03/05 3. Installation
9809c 3-13
