8. Phoenix Contact or Coninvers accessories
(INTERBUS interface)
These fitting instructions are for plugs from
Coninvers. The procedure for all plugs is
shown using the example of the angled plug
type.
Unlock the stop ring (6) by
gently pressing and remove
it. Pull out the insert (7) from
the insert ring (4).
Pull out screening sleeve (3),
pressure ring (3a) and seal
element (3b)
as well as the knurled nut (5)
with the insert ring (4).
Please note:
The screening sleeve is only to
be found on plugs for non-floating
connections
Unscrew adapter (1).
Remove threaded pin (2)
completely (screwdriver blade
0.4 x 1.6 DIN 5264).

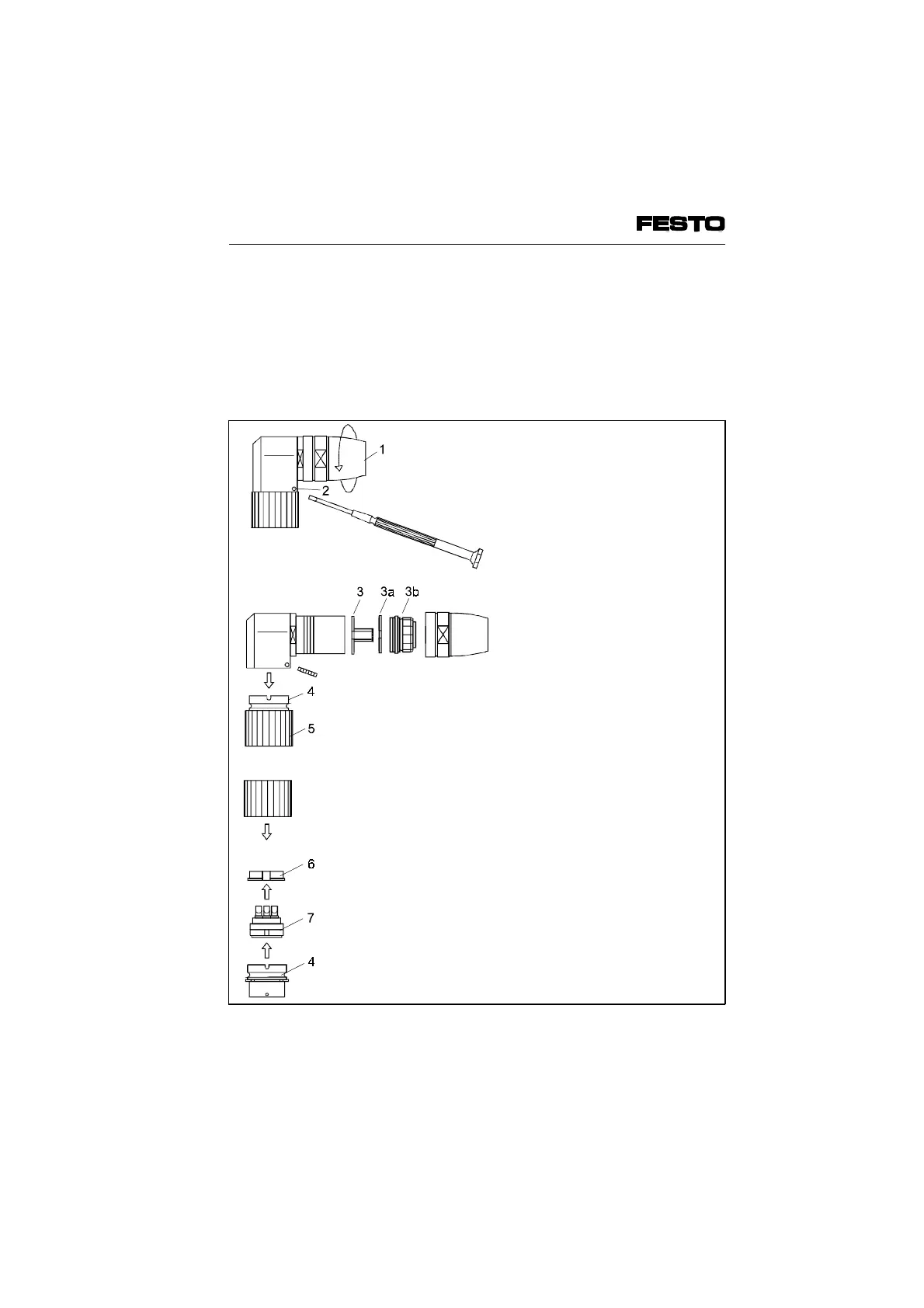

Fig. 3/4a: Dismantling the plug
VIFB6 - 03/05 3. Installation
3-12
9809c
