Operating voltage connection type 05
The 24 V operating voltages are connected on
the adapter plate between the node and the
valves. The node an the I/O-moduls are supplied
with operating voltage via the adapter cable.
PLEASE NOTE
•
Use this operating voltage connection for an
installation both on the remote bus and on
the installation remote bus.
•
It is not possible to supply voltage to the
terminal via the cables of the installation
remote bus. The supply cables for the latter
are simply looped through.
Operating voltage connection type 05
Fuse for valves
(4 A slow blowing)
*)
Adapter cable
*)
Do not switch on more than 12 valves at the same time, otherwise this
valve fuse will blow

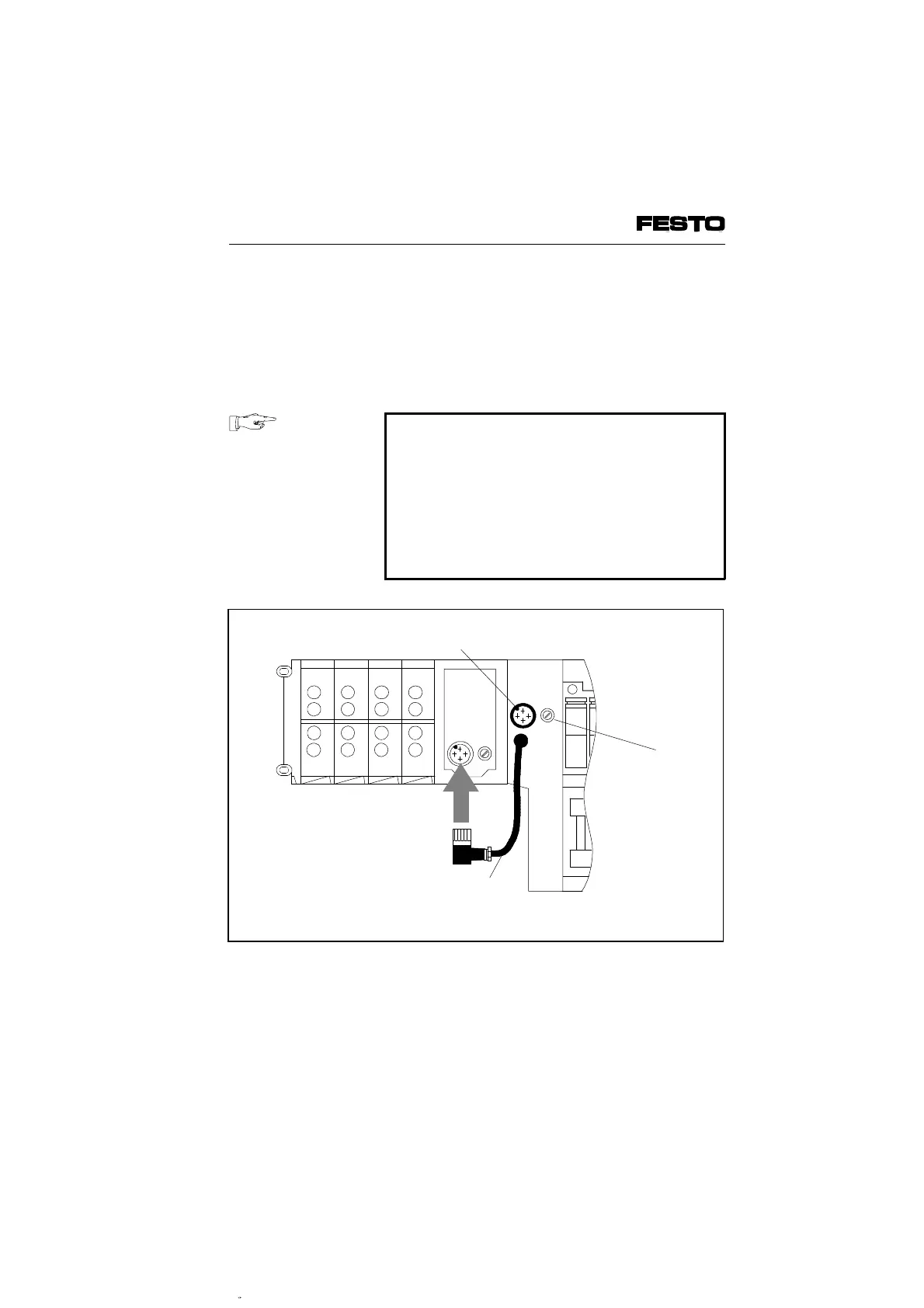

Fig 3/13: Position of the operating voltage connection type 05
VIFB6 - 03/05 3. Installation
9809c 3-31
