Festo Controller CECC
53
5. Highlight the new "Ethernet" branch in the device window.
6. Add a "Modbus TCP Master" module via the context menu.

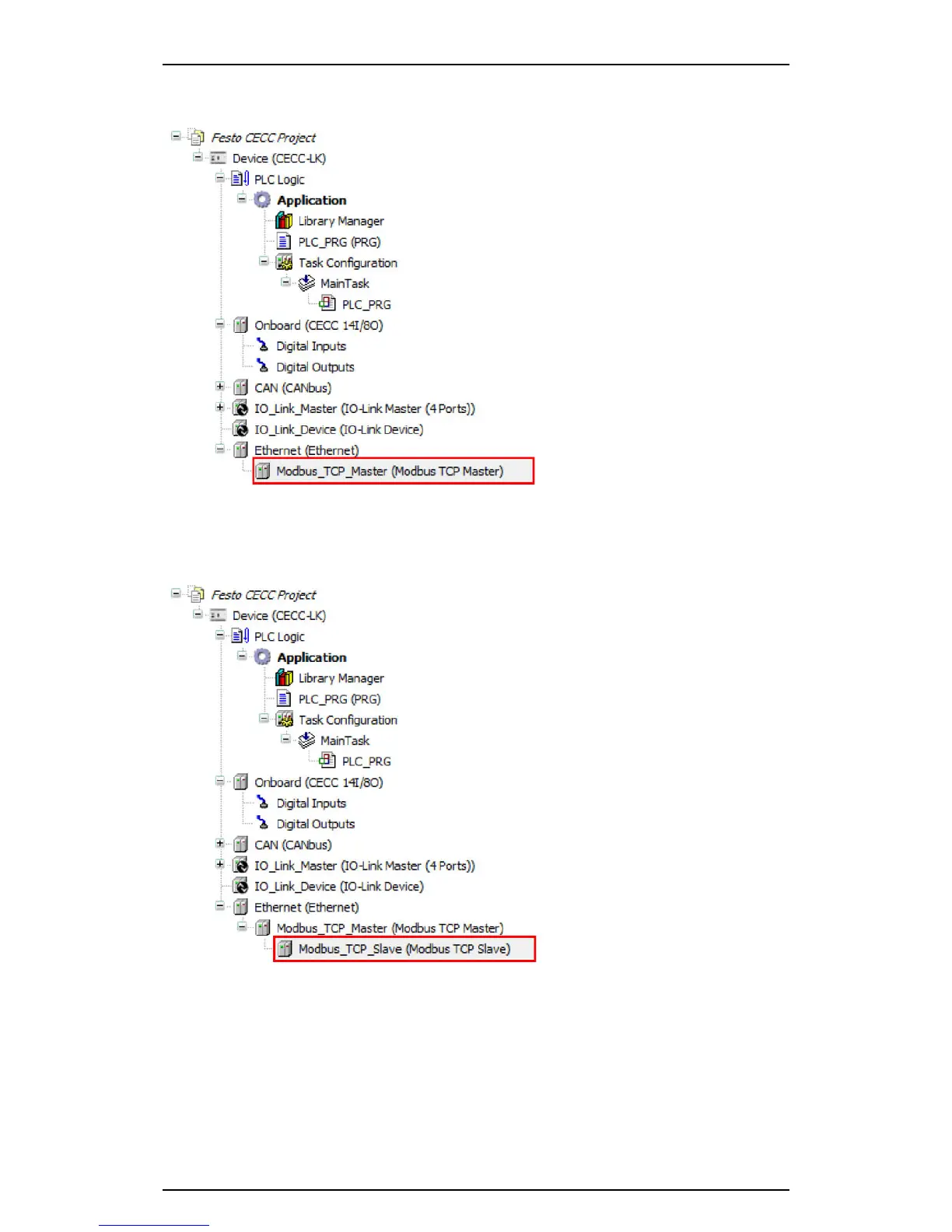

Figure: Device window - selecting "Modbus TCP Master" in the "Ethernet" branch
7. Highlight the new "Modbus TCP Master" branch and add the "Modbus TCP Slave" module using the
context menu.
8. Repeat this process for the other Modbus TCP slaves.
Figure: Device window - selecting "Modbus TCP Slave" in the "Modbus TCP Master" branch
9. Highlight one of the "Modbus TCP Slave" branches.
