Festo Controller CECC
56
This gives the master an I/O map for the slave.

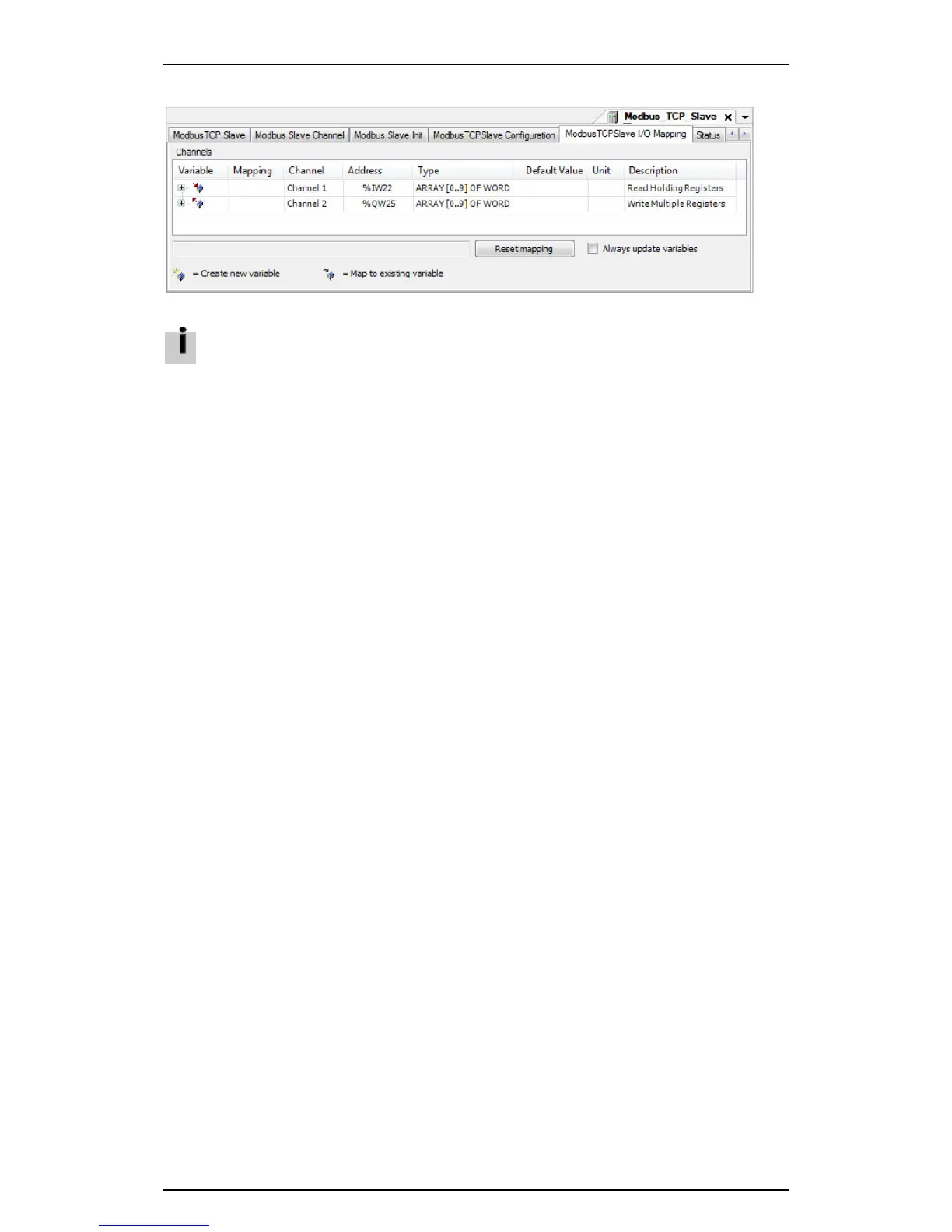

Figure: Workspace for "Modbus TCP Slave" - tab "Modbus TCP Slave I/O Mapping"
If the timeout option is activated and if this has a value greater than zero, the holding register
values (%IW) are automatically reset after this time WITHOUT further remote access to the
holding register range.
