Festo Controller CECC
55
Using the CECC as a Modbus TCP slave provides
– access to the range %QW with access type Read Input Registers (function code 04)
– access to the range %IW with access type Write Multiple Registers (function code 16)
The length specifies how many words should be read and written.

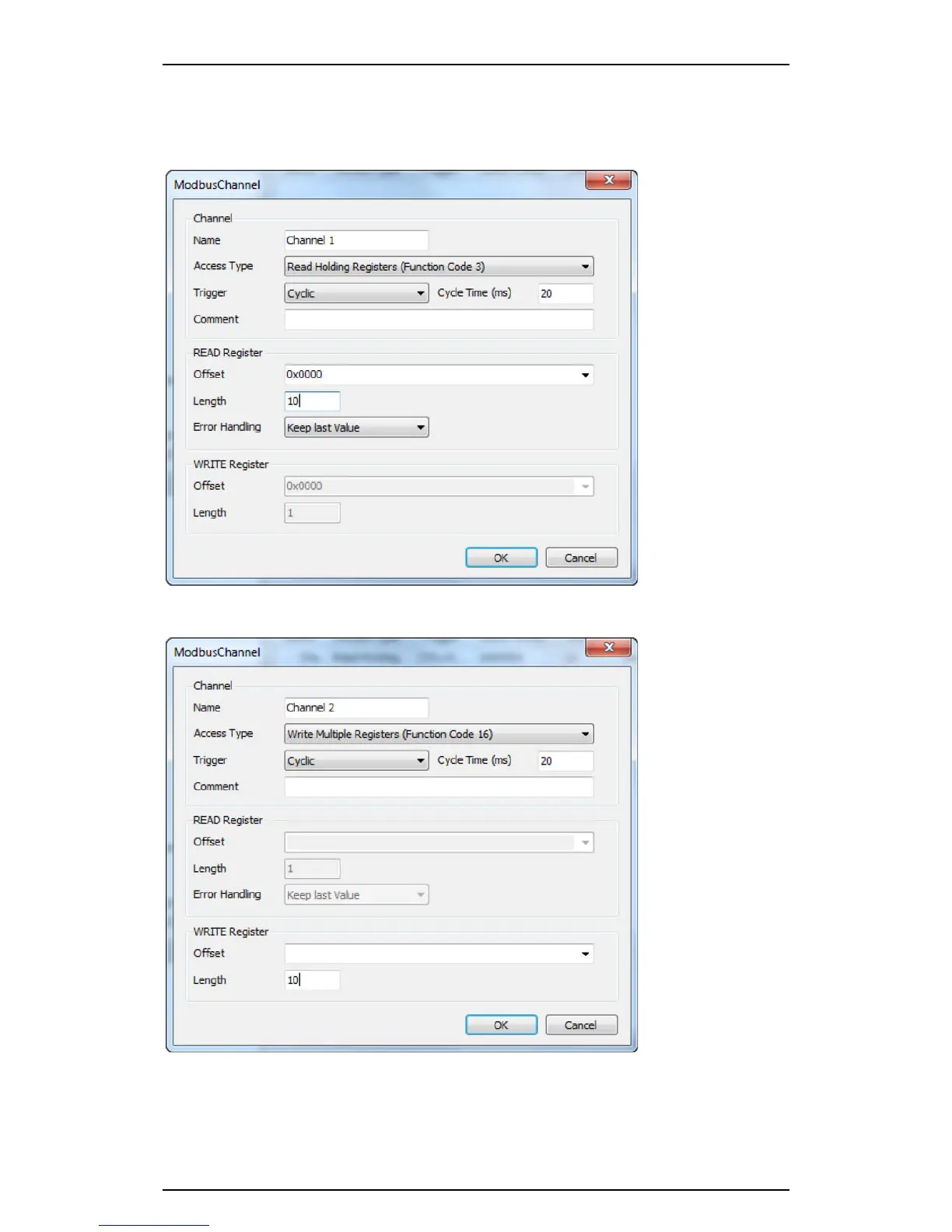

Figure: Settings on channel 1
Figure: Settings on channel 2
