2 Product overview
Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English 15
2 Product overview
2.1 Structure of a positioning system
1
2
3
45
6
1 CPX terminal with Axis controller CPX-CMAX
2 Sensor interface with connecting cable
(optional, depending on the displacement
encoder used)
3 Drive with displacement encoder
4 Pneumatic tubing
5 Proportional directional control valve VPWP
6 Axis string

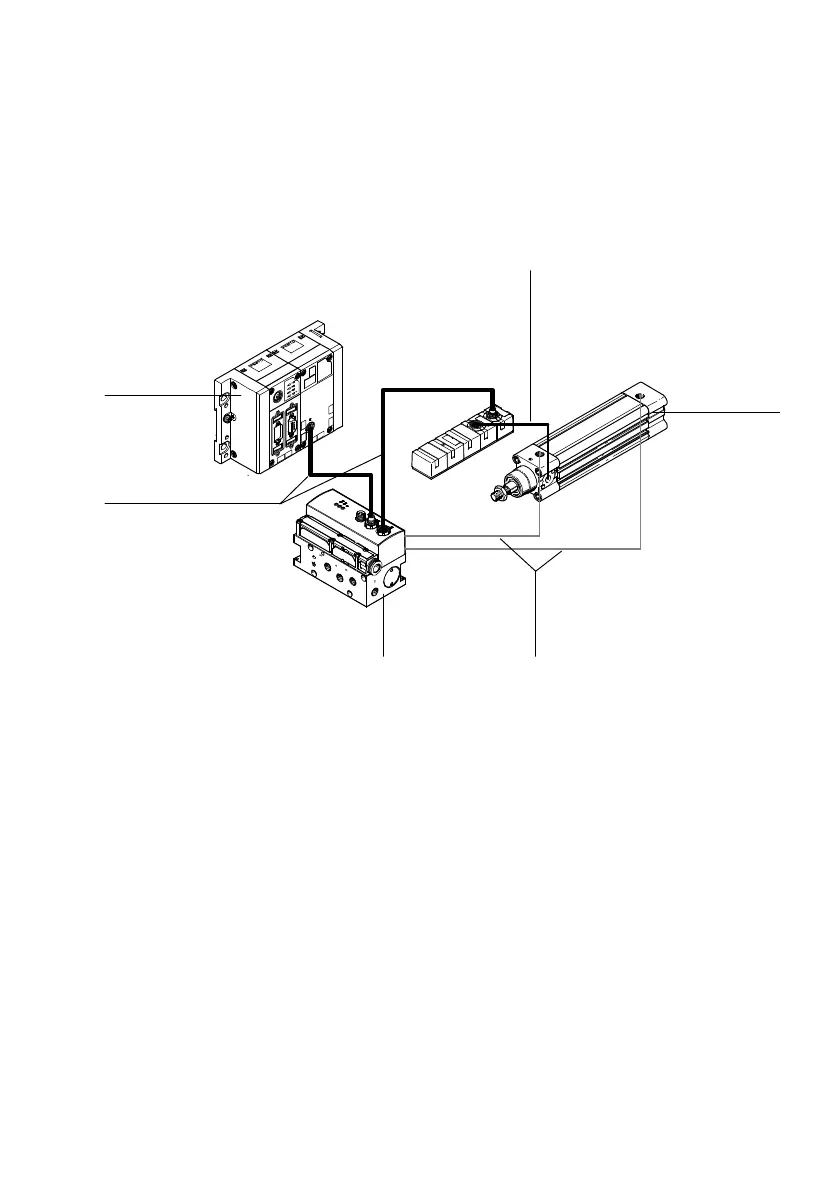

Fig. 2.1 Structure of a positioning system with Axis controller CPX-CMAX – example
