3 Mounting and pneumatic installation
32 Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English
3.5 Mounting the CASM sensor interface

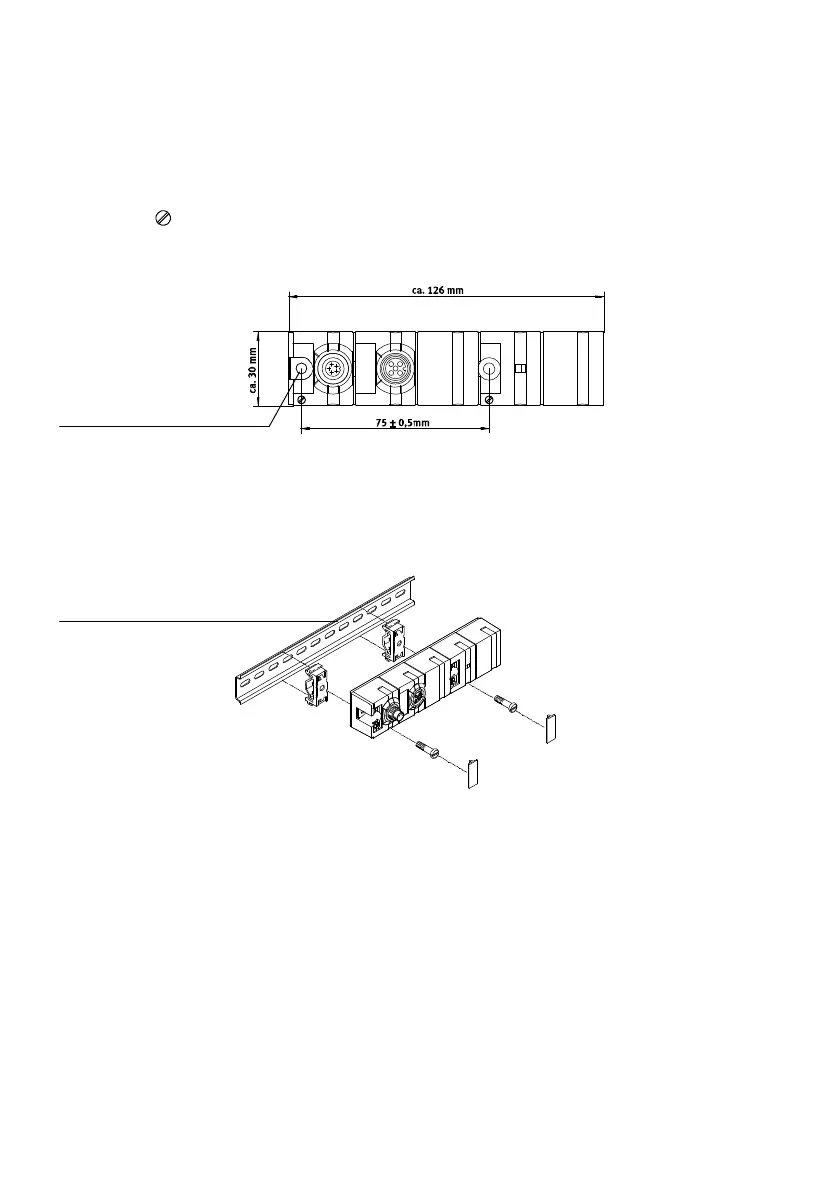

 Mount the CASM-... sensor interface on an even surface with two M4 screws and one retaining
washer each (è Fig. 3.9).
The symbol below the slot for inscription labels identifies the position of the mounting screws.
The outer fastening screw serves at the same time for earthing ( 1 ). The tightening torque is 2 Nm.
S1
S2
1
1 Mounting screw (connect earthing)
Fig. 3.9 Mounting CASM
Mounting on H-rails of size TH35 is possible with mounting kit CP-TS-HS35 (è Fig. 3.10).
1
1 H-rail
Fig. 3.10 Mounting CASM on H-rail
