Axis controller CPX-CMAX
6 Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English
Instructions on this documentation
This description contains information on the functioning, mounting, installation and commissioning of
the CPX-CMAX axis controller with the following modules and components of the positioning system
(è Tab. 1).

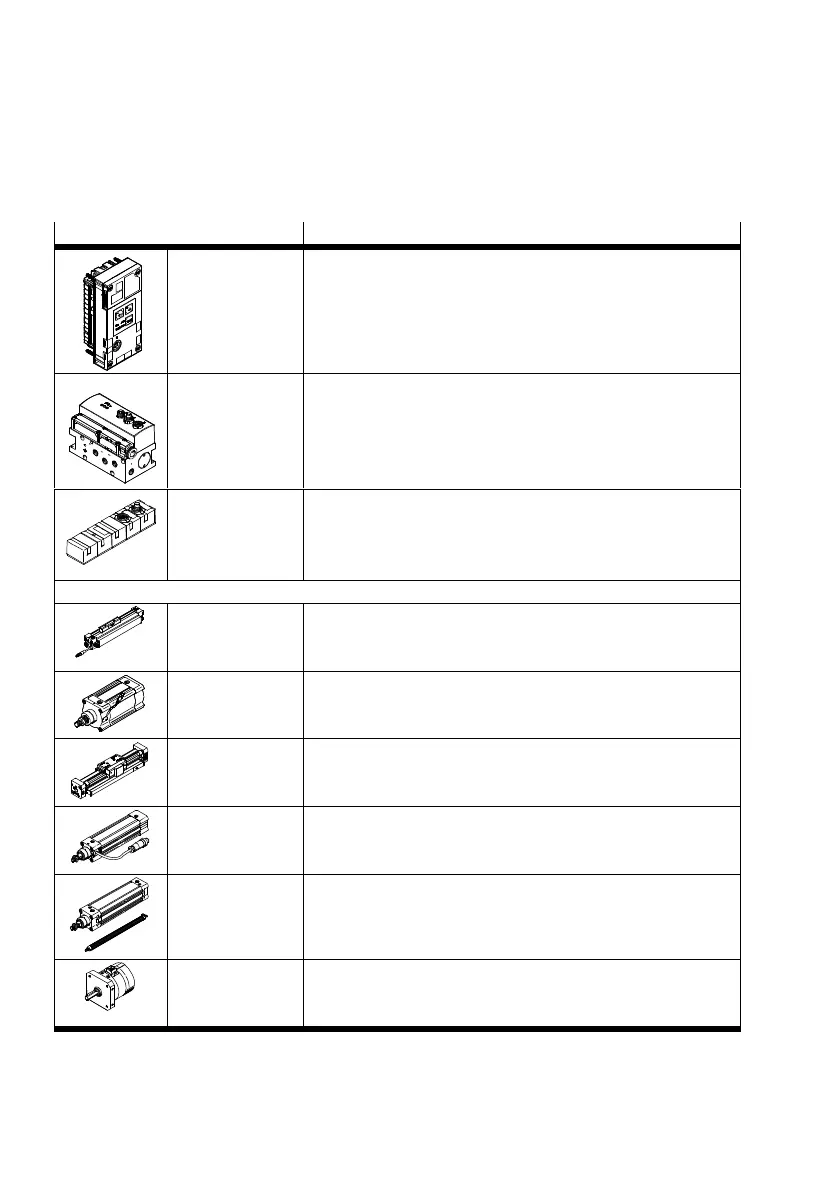

Module/component - type
Description
CPX-CMAX-C1-1 Axis controller with 7-segments display and an axis connection
to the proportional directional control valve VPWP. The axis
controller – hereafter also called CMAX for short – is a CPX
module (technology module) in a CPX terminal.
VPWP-... VPWP proportional directional control valve for connection of
the pneumatic drive with connections to the CMAX and to the
displacement encoder or sensor interface. In addition, it has a
digital output and a voltage output for control of a brake or
clamping unit.
CASM-S-D2-R3
CASM-S-D3-R7
Sensor interfaces with connection to the VPWP for connecting
special displacement encoders to the axis string:
– analogue, absolute displacement encoders (potentiometer)
– digital, incremental displacement encoders
Approved drives with displacement encoder
1)
DDLI – Linear drive with integrated displacement encoder
(digital – absolute)
DDPC – Standard cylinder with integrated displacement encoder
(incremental displacement encoder)
DGCI – Linear drive with permanently attached displacement
encoder (digital – absolute)
DNCI – Standard cylinder with integrated displacement encoder
(incremental displacement encoder)
DNC with MLO-
POT-..-LWG
– Standard cylinder with external displacement encoder
(potentiometer – absolute)
DSMI – Semi-rotary drive with integrated displacement encoder
(potentiometer – absolute)
1) Support for other drives in preparation
Tab. 1 Overview of modules and components of positioning system
